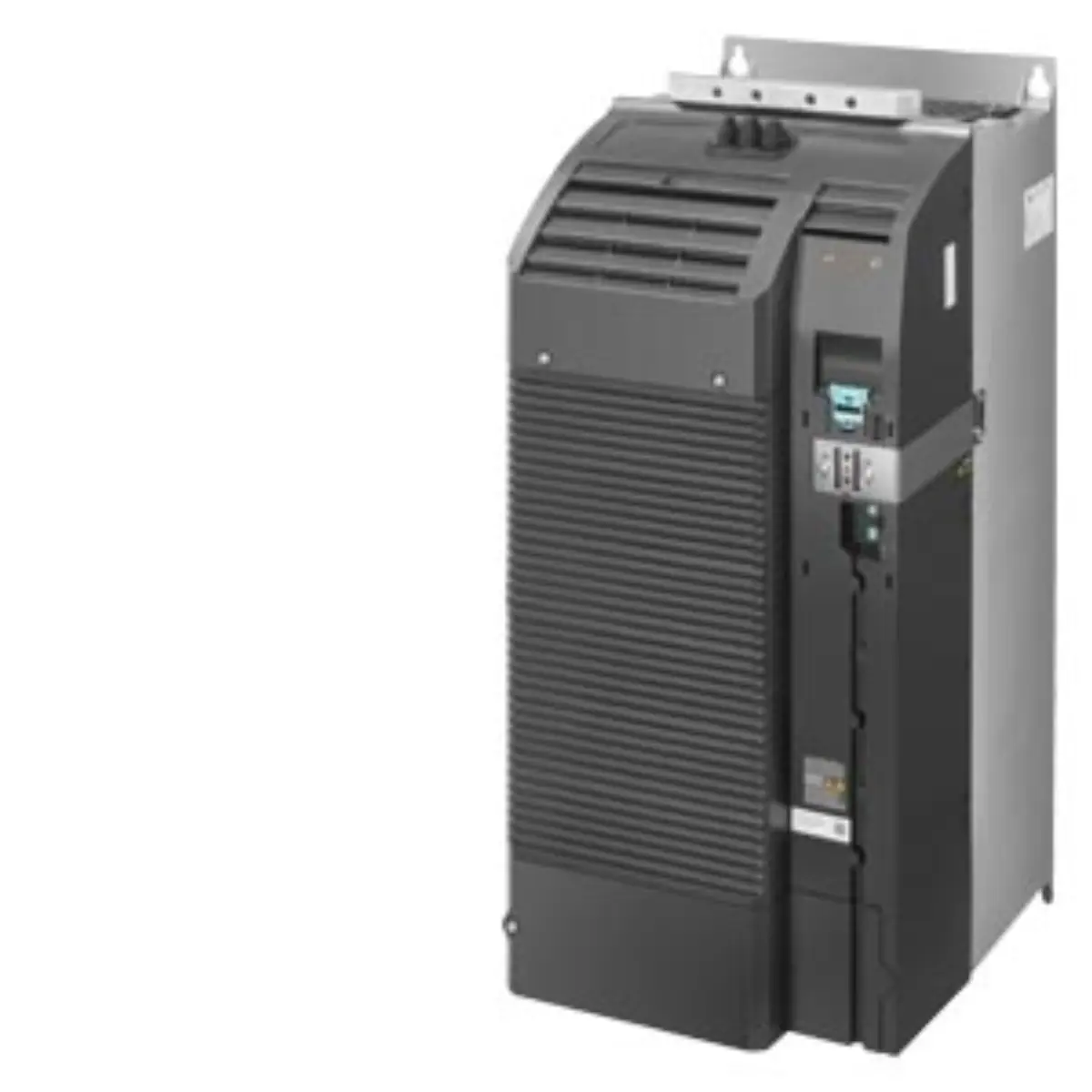

6AG1210-1PE32-2UL0 Industrial Drive Component

Part number

6AG1210-1PE32-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

745.00 x 469.00 x 385.00 mm

Net weight

62.00 Kg

Source category

SIPLUS Power Modules

• Rated at 132 kW, this module operates within a 380-480 V three-phase AC range with specified tolerances. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 62.00 Kg unchanged while comparing project documents and product image evidence.
• The unit supports unfiltered input frequencies between 47 and 63 Hz for flexible integration into various power systems.
• High overload capacity allows 110 kW operation at 200% load for three seconds during peak demand periods.
• Low overload settings permit 132 kW at 150% load for three seconds, ensuring sustained performance under stress.
• An integrated braking chopper facilitates energy dissipation, enhancing control stability during deceleration phases of operation.
• The physical footprint measures 745 by 469 by 385 millimeters, weighing approximately 62 kilograms for structural support.

• The base model derives from 6SL3210-1PE32-5UL0, indicating its foundational architecture within the SINAMICS family. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• FSF designation signifies specific structural features intended for enhanced durability in challenging industrial environments.
• IP20 degree of protection indicates the enclosure rating for internal components against solid object ingress.
• Conformal coating is applied to protect electronic circuits from moisture, dust, and corrosive atmospheric conditions.

Parameters are factual source fields retained for model review.

• Operating temperature range extends from -20 to +50 degrees Celsius, accommodating varied environmental conditions. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE32-2UL0 record before publication.
• Release status depends on CU firmware version V4.7 HF8 or later for full functional compliance.
• The unit does not include a Control Unit or operating unit, requiring separate specification for integration.
• Power rating adjustments reflect different overload durations, balancing thermal limits with mechanical torque demands.

• Visual inspection should confirm the presence of conformal coating on internal circuit board assemblies.
• Labeling must clearly display the full part number and relevant safety warnings for handling procedures.
• Terminal blocks and connection points require verification for correct voltage ratings and phase configurations.
• Physical dimensions should match the recorded specifications to ensure proper mounting in designated enclosures.

• Review project documents to confirm the required firmware version matches the specified CU release criteria.
• Verify electrical supply parameters align with the 380-480 V AC input range and frequency specifications.
• Assess environmental conditions to ensure the -20 to +50 degree Celsius range suits the installation site.
• Confirm spatial constraints accommodate the 745 by 469 by 385 millimeter physical dimensions of the unit.

• Ensure all engineering service requirements are documented prior to submission for accurate project alignment.
• Cross-reference the make-to-request classification with production timelines to manage expectations for completion.
• Validate that the absence of a Control Unit does not conflict with existing system architecture plans.
• Confirm that the high overload capabilities meet the specific torque demands of the driven machinery.
