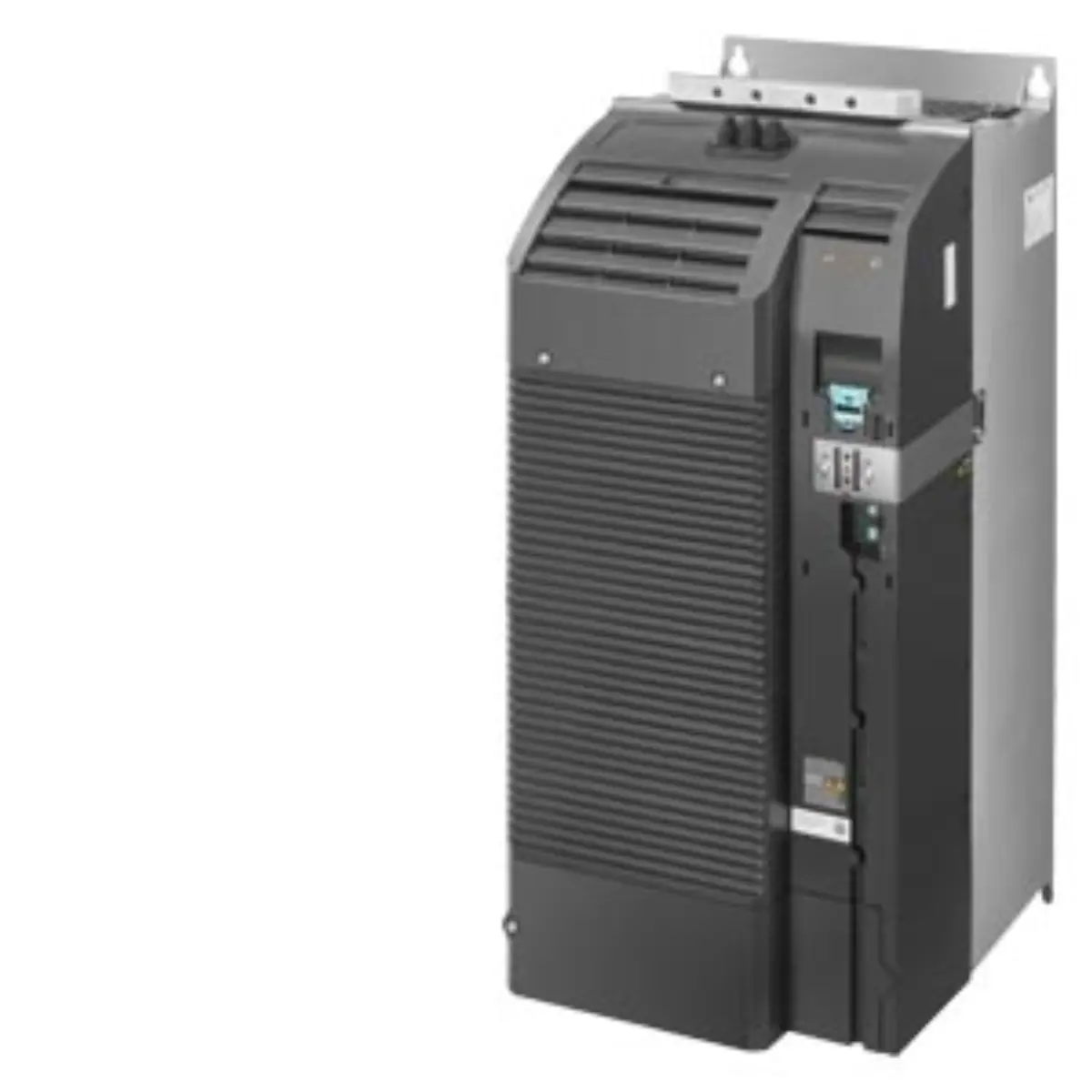

Siemens 6AG1210-1PE32-2AL0 Power Module Inquiry

Part number

6AG1210-1PE32-2AL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

745.00 x 469.00 x 385.00 mm

Net weight

66.00 Kg

Source category

SIPLUS Power Modules

• Rated power output reaches 132 kW with specific overload capabilities defined by the manufacturer. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 66.00 Kg unchanged while comparing project documents and product image evidence.
• High overload capacity allows 110 kW at 200 percent load for three seconds continuously.
• Low overload settings permit 132 kW at 150 percent load for three seconds duration.
• Integrated Class A filter ensures compliance with electromagnetic interference standards for sensitive areas.
• A built-in braking chopper supports 380-480 V 3 AC input voltage ranges effectively.
• Physical dimensions measure approximately 745 by 469 by 385 millimeters for space planning.

• Base model reference is recorded under 6SL3210-1PE32-5AL0 for engineering traceability purposes. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• FSF design designation indicates specific structural features relevant to installation and mounting needs.
• Degree of protection is listed as IP20, requiring additional enclosure for harsh environments.
• Release status depends on CU firmware version V4.7 HF8 or later for operation.

Parameters are factual source fields retained for model review.

• Net weight is documented at 66.00 kg for logistics and handling assessment calculations. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE32-2AL0 record before publication.
• Frequency range specification covers 47 to 63 Hz for standard grid synchronization requirements.
• Voltage tolerance is set at plus ten percent and minus twenty percent for stability.
• Power rating adjustments vary based on overload duration and thermal management constraints observed.
• Operating unit and control unit are not included in the standard package configuration listed.

• Visual inspection should confirm the presence of conformal coating on internal circuit boards. Review Siemens 6AG1210-1PE32-2AL0 as Drives & Motion with source category SIPLUS Power Modules, recorded lifecycle Active Product, and submitted model identity.
• Label verification must match the part number 6AG1210-1PE32-2AL0 exactly for accuracy.
• Connector types and terminal layouts require cross-reference with technical manuals before integration.
• Physical condition checks should note any signs of corrosion or mechanical damage clearly.

• Gather project requirements specifying voltage levels and frequency ranges for system application context checks. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 66.00 Kg unchanged while comparing project documents and product image evidence.
• Document environmental conditions including temperature extremes and potential exposure to corrosive agents.
• Prepare technical drawings showing mounting dimensions and clearance requirements for physical installation.
• List necessary firmware versions and control unit models for complete system functionality validation.

• Verify all electrical parameters against site-specific power supply characteristics before finalizing submission.
• Confirm that the IP20 rating aligns with the intended installation environment safety standards.
• Ensure that the control unit firmware meets the minimum version requirements for operation.
• Cross-check dimensional data with existing infrastructure to documented proper physical fitment.
