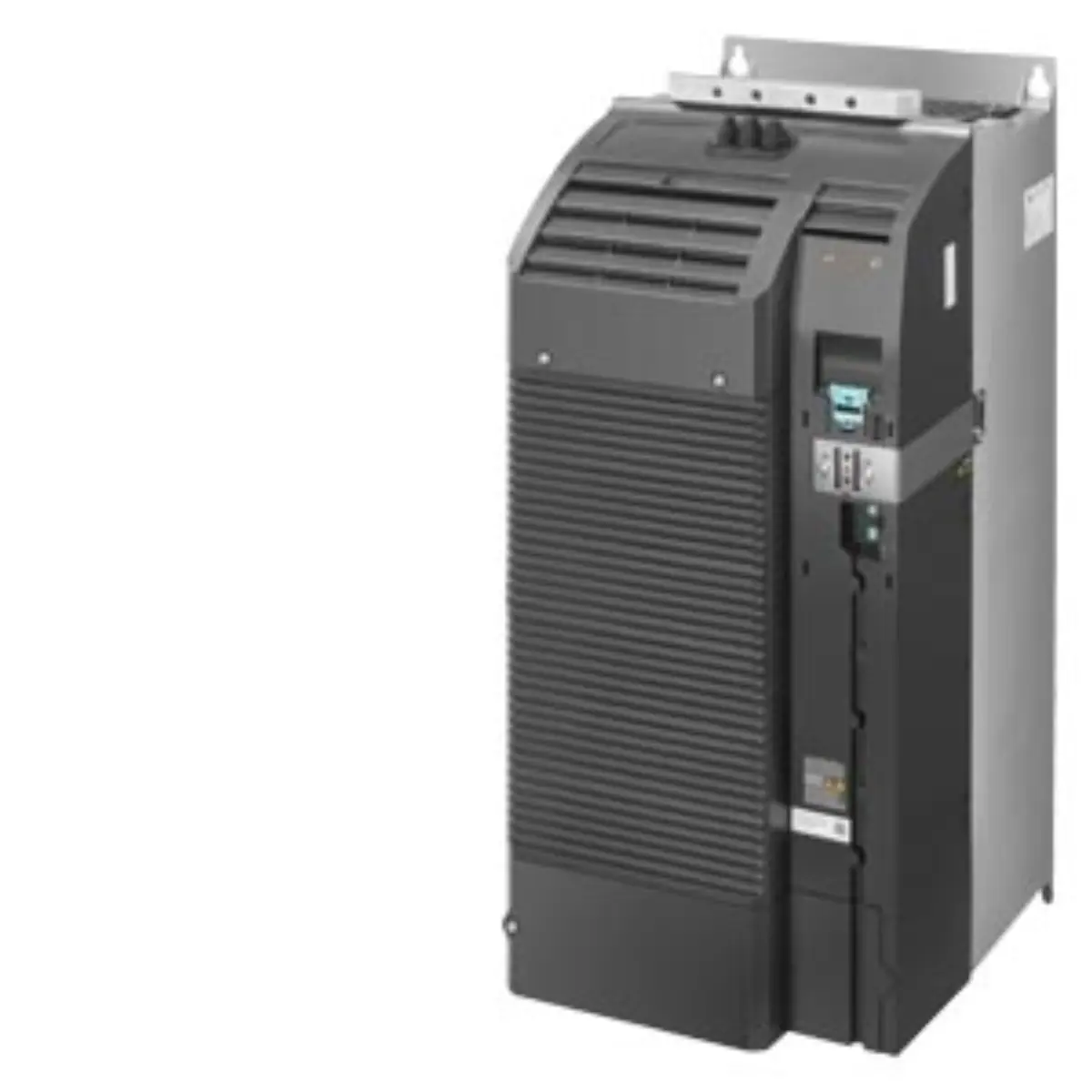

Siemens 6AG1210-1PE31-2UL0 Industrial Drive Module

Part number

6AG1210-1PE31-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

745.00 x 469.00 x 385.00 mm

Net weight

58.00 Kg

Source category

SIPLUS Power Modules

• Rated power output reaches 75 kW with high overload capabilities defined by specific duration limits. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 58.00 Kg unchanged while comparing project documents and product image evidence.
• Low overload performance allows 75 kW operation at 150% load for three seconds continuously.
• Integrated braking chopper supports voltage ranges between 380 and 480 volts for three-phase AC input.
• Frequency range specification covers 47 to 63 Hz with tolerance levels of plus ten percent.
• Conformal coating provides protection against harsh industrial atmospheres and potential chemical exposure during operation.
• Operating temperature range extends from minus twenty degrees Celsius up to positive fifty degrees Celsius.

• Base model reference links to 6SL3210-1PE31-5UL0 for structural and functional comparison purposes. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• FSF design designation indicates specific physical form factor and mounting configuration for integration.
• Degree of protection is rated IP20, offering basic protection against solid object ingress.
• Release status requires CU firmware version V4.7 HF8 or later for full functionality.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 745 millimeters in height by 469 millimeters in width. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE31-2UL0 record before publication.
• Depth measurement stands at 385 millimeters for spatial planning and enclosure design considerations.
• Net weight is listed at 58 kilograms, affecting handling procedures and support structure requirements.
• Alternative dimension set of 708 by 305 by 357 millimeters appears in source data.
• Power module operates without a control unit or operating unit included in standard configuration.

• Visual inspection should confirm presence of conformal coating on internal circuit board components. Review Siemens 6AG1210-1PE31-2UL0 as Drives & Motion with source category SIPLUS Power Modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling must display exact part number 6AG1210-1PE31-2UL0 for accurate inventory and identification.
• Terminal connections should be checked for integrity before any electrical testing procedures begin.
• Mounting points must align with specified dimensions to ensure secure installation in enclosures.

• Review project documentation to verify voltage and frequency requirements match module specifications precisely. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 58.00 Kg unchanged while comparing project documents and product image evidence.
• Confirm environmental conditions such as temperature and humidity align with IP20 and coating ratings.
• Check existing control unit firmware versions to ensure application context with the required HF8 release.
• Calculate space requirements based on both listed dimension sets for accurate enclosure planning.

• Verify all electrical connections against the three-phase AC input specifications before energizing.
• Ensure proper grounding and shielding to maintain electromagnetic application context in industrial settings.
• Monitor thermal conditions during initial operation to validate cooling requirements are met adequately.
• Document all parameter settings for future maintenance and troubleshooting reference during lifecycle management.
