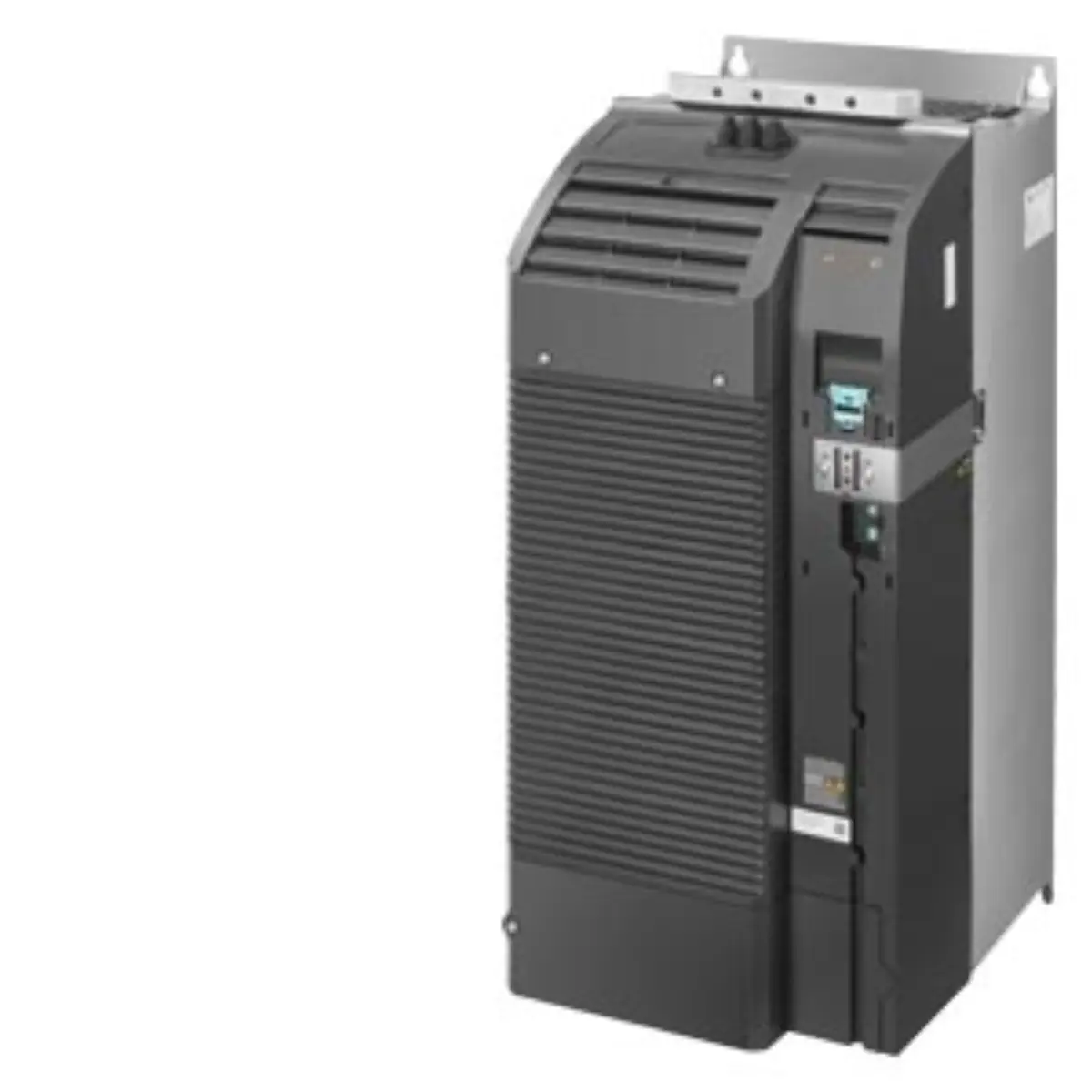

Inquiry for Siemens 6AG1210-1PE31-2AL0 Power Module

Part number

6AG1210-1PE31-2AL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

745.00 x 469.00 x 385.00 mm

Net weight

64.00 Kg

Source category

SIPLUS Power Modules

• Rated at 75 kW, this power module operates on 380-480 V three-phase AC input with specified tolerances. Keep dimensions 745.00 x 469.00 x 385.00 mm and net weight 64.00 Kg unchanged while comparing project documents and product image evidence.
• The unit includes an integrated Class A filter to manage electromagnetic interference within industrial drive systems effectively.
• A built-in braking chopper is incorporated to handle regenerative energy during deceleration phases of motor operation.
• Operating temperatures are supported from -20°C to +50°C, ensuring functionality in varied climatic conditions.
• Conformal coating is applied to protect internal components against moisture, dust, and corrosive atmospheric elements.
• The physical dimensions measure approximately 708x305x357 mm, facilitating integration into standard control cabinet layouts.

• Base model reference 6SL3210-1PE31-5AL0 serves as the foundation for this specialized SIPLUS variant configuration. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• FSF design designation indicates specific structural features tailored for enhanced environmental resistance and mechanical stability.
• IP20 degree of protection applies to the front face, requiring additional enclosure measures for full safety.
• Release status depends on Control Unit firmware version V4.7 HF8 or later for proper functionality.
