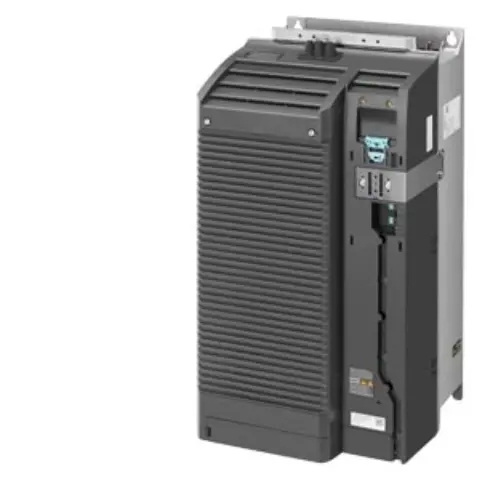

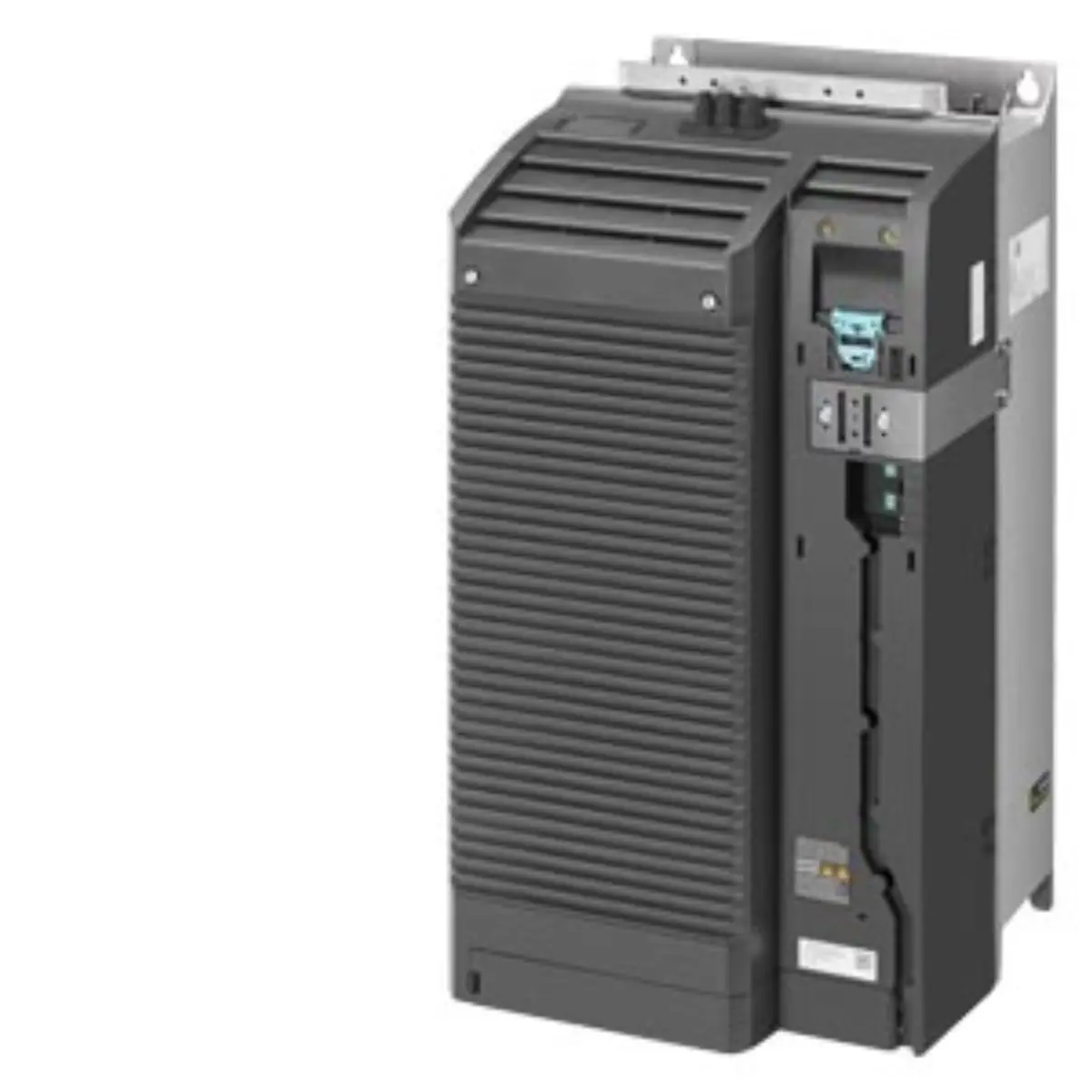

Siemens 6AG1210-1PE28-2UL0 Power Module Inquiry

Part number

6AG1210-1PE28-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

595.00 x 400.00 x 350.00 mm

Net weight

26.4 Kg

Source category

SIPLUS Power Modules

• Rated power output is 45 kW with a base model reference of 6SL3210-1PE28-8UL0 for engineering traceability. Keep dimensions 595.00 x 400.00 x 350.00 mm and net weight 26.4 Kg unchanged while comparing project documents and product image evidence.
• Operating temperature range spans from -20°C to +50°C, allowing functionality in extreme thermal environments.
• Integrated braking chopper operates within a 380-480 V 3 AC voltage window with specified tolerance levels.
• Frequency input ranges from 47 Hz to 63 Hz, accommodating various global power grid standards.
• High overload capacity delivers 37 kW at 200% for 3 seconds, supporting sudden peak load requirements.
• Low overload capacity provides 45 kW at 150% for 3 seconds, ensuring sustained performance during heavy cycles.

• The product class indicates items made to request based on specific customer engineering specifications. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Designation FSE refers to the specific construction type and protection level of the housing unit.
• Degree of protection is rated IP20, indicating protection against solid objects larger than 12.5mm.
• Release status requires Control Unit firmware version V4.7 HF8 or higher for proper operation.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 595.00 x 400.00 x 350.00 mm for spatial planning purposes.
• Net weight is listed at 26.4 Kg, which is critical for structural mounting and logistics assessment.
• Alternative dimension set 551x 275x 237 (HxWxD) may apply depending on specific configuration variations.
• Power module operates without a Control Unit (CU) and operating unit in its base configuration state.
• Conformal coating application protects internal circuitry from moisture, dust, and corrosive atmospheric contaminants effectively.

• Visual inspection should confirm the presence of conformal coating on internal PCB components upon opening.
• Label verification must match the part number 6AG1210-1PE28-2UL0 exactly for accurate identification procedures.
• Terminal block connections should be checked for integrity before any electrical installation or testing phase.
• Cooling fins and ventilation slots must remain clear to ensure adequate thermal dissipation during operation.

• Review project documentation to confirm voltage requirements align with the 380-480 V 3 AC specification.
• Verify ambient temperature conditions to ensure they fall within the -20°C to +50°C operational range.
• Check existing Control Unit firmware versions to documented application context with the V4.7 HF8 release baseline.
• Assess mechanical mounting space to accommodate the specified dimensions and weight distribution requirements accurately.

• Confirm that the engineering service requirement is understood since this is a design-to-customer product.
• Ensure all safety protocols are reviewed before handling any electrical connections or mechanical adjustments.
• Document any specific environmental factors that might influence the selection of this particular power module.
• Cross-reference all technical parameters with the original equipment manufacturer datasheets for final validation steps.
