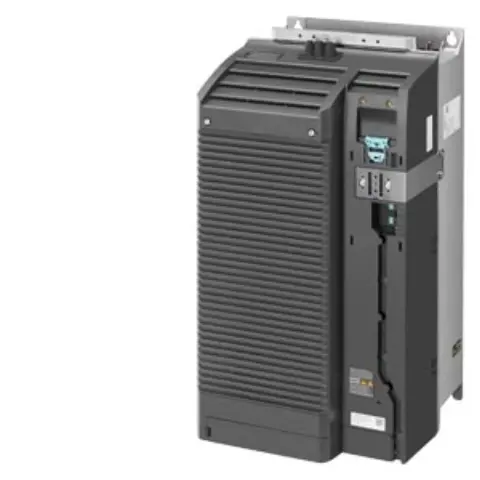

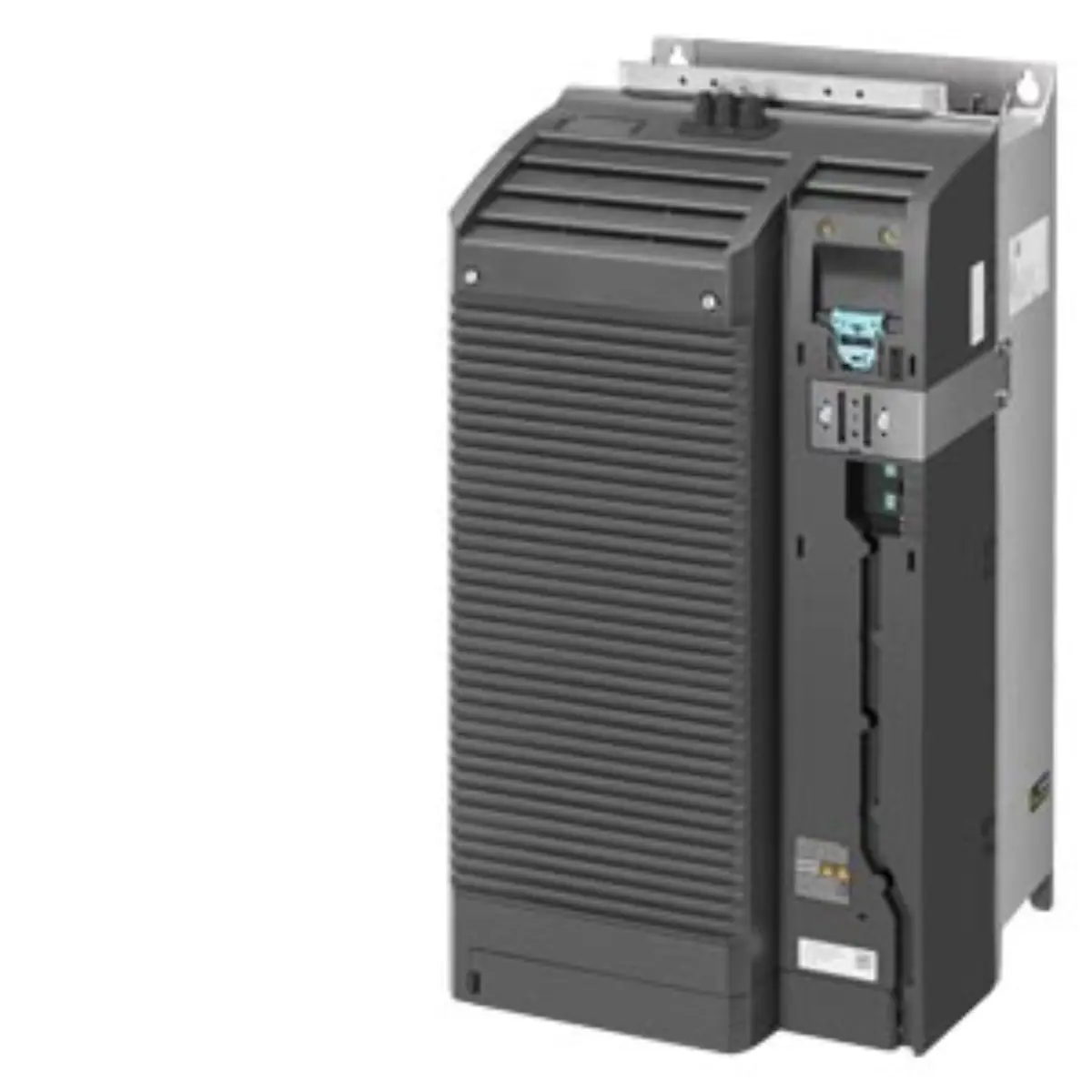

Inquiry for Siemens 6AG1210-1PE28-2AL0 SIPLUS SINAMICS G120 Power Module

Part number

6AG1210-1PE28-2AL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

595.00 x 400.00 x 350.00 mm

Net weight

28.38 Kg

Source category

SIPLUS Power Modules

• Physical dimensions are recorded as 595.00 x 400.00 x 350.00 mm with a net weight of 28.38 Kg for logistical planning.
• The unit operates on 380-480 V 3 AC input with a tolerance of +10/-20% and frequency range of 47-63 Hz.
• High overload capacity allows 37 kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds.
• Low overload settings support 45 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds.
• Conformal coating is applied to protect internal components, supporting operation in temperatures ranging from -20 to +50 degrees Celsius.
• An integrated Class A filter and braking chopper are included, enhancing electromagnetic application context and dynamic braking performance.

• The base model reference is 6SL3210-1PE28-8AL0, adapted with SIPLUS environmental protections and specific electrical configurations.
• FSE design indicates a specific form factor and enclosure style relevant to the installation environment requirements.
• Degree of protection is listed as IP20, indicating protection against solid objects larger than 12.5 mm.
• The unit is released as of Control Unit firmware version V4.7 HF8, ensuring software application context alignment.

Parameters are factual source fields retained for model review.

• Source parameter review confirms the power rating of 45 kW for standard continuous operation conditions.
• Voltage input specifications require verification against the main supply network to ensure proper operational stability.
• Temperature range limits must be considered when evaluating the installation site environmental controls and ventilation.
• Dimensional data suggests the need for adequate clearance around the unit for maintenance and airflow access.
• Weight specification aids in determining the structural support requirements for the mounting surface or rack.

• Visual inspection should confirm the presence of the conformal coating on internal circuit boards if accessible.
• Label verification ensures the part number matches 6AG1210-1PE28-2AL0 exactly before proceeding with documentation.
• Connector types and pinouts should be cross-referenced with the control unit interface specifications for integration.
• Physical condition checks include verifying the integrity of the housing and absence of transport damage.

• Prepare project documents detailing the required voltage levels and frequency ranges for the specific application site.
• Document the ambient temperature conditions to ensure the -20 to +50 °C range meets operational needs.
• Specify the Control Unit model and firmware version to ensure seamless integration with the power module.
• Include mechanical layout drawings to verify that the 595x400x350 mm footprint fits the designated enclosure space.

• Confirm the engineering service requirements are understood, as this item is made to customer specifications.
• Verify that the IP20 rating aligns with the environmental protection needs of the intended installation location.
• Ensure the firmware version V4.7 HF8 is application context with existing system control architectures and logic.
• Review the overload characteristics to confirm they meet the dynamic torque demands of the driven machinery.
