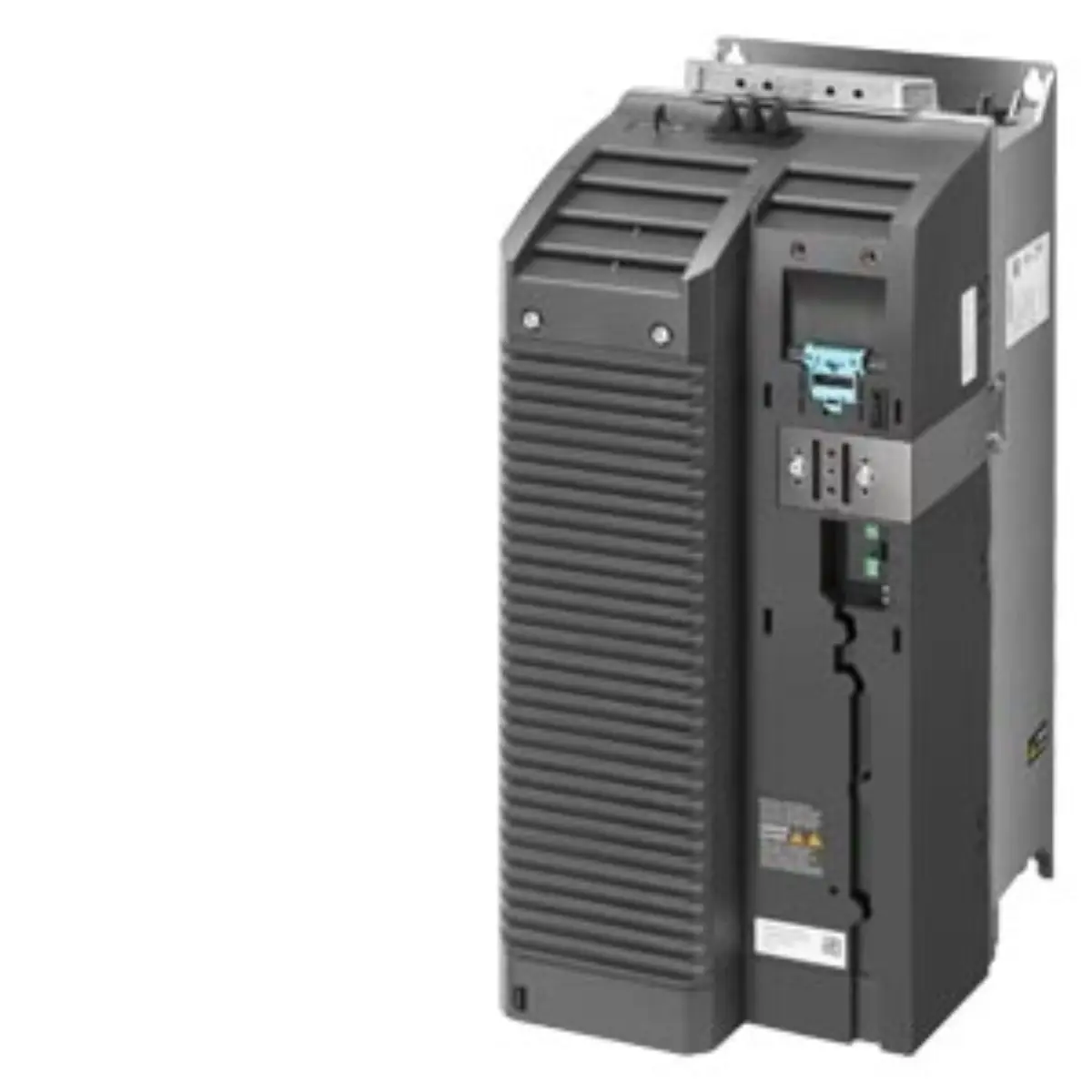

Siemens 6AG1210-1PE26-2UL0 Industrial Drive Component Inquiry

Part number

6AG1210-1PE26-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

495.00 x 356.00 x 300.00 mm

Net weight

18.3 Kg

Source category

SIPLUS Power Modules

• Rated voltage input spans 380-480 V AC with a tolerance of plus or minus twenty percent. Keep dimensions 495.00 x 356.00 x 300.00 mm and net weight 18.3 Kg unchanged while comparing project documents and product image evidence.
• Frequency operation covers 47-63 Hz for standard industrial power distribution networks worldwide.
• High overload capacity delivers 22 kW at 200% load for three seconds continuously.
• Low overload capacity provides 30 kW at 150% load for three seconds during operation.
• Physical dimensions measure approximately 495 by 356 by 300 millimeters for mounting planning.
• Net weight is recorded at 18.3 kilograms, requiring appropriate handling procedures during installation.

• Base model reference links to 6SL3210-1PE26-0UL0 for architectural consistency checks. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• FSF design indicates specific frame structure configuration for mechanical integration needs.
• Degree of protection is rated IP20, listed for controlled indoor cabinet environments.
• Release status requires CU firmware version V4.7 HF8 or higher for functionality.

Parameters are factual source fields retained for model review.

• Power rating stands at 30 kW for continuous low overload operations in systems. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE26-2UL0 record before publication.
• Braking chopper integrates directly to handle regenerative energy from motor deceleration phases.
• Conformal coating protects internal circuitry against moisture, dust, and corrosive atmospheric elements.
• Operating unit and control unit are not included in this specific power module package.
• Overload durations vary between three seconds for high loads and two hundred forty seconds for full rated power.

• Visual inspection should confirm the presence of conformal coating on exposed surfaces. Review Siemens 6AG1210-1PE26-2UL0 as Drives & Motion with source category SIPLUS Power Modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG1210-1PE26-2UL0 for verification.
• Terminal blocks and connection points require checking for physical damage before integration.
• Dimensions on packaging should match the recorded 495x356x300 mm specification accurately.

• Verify that the control unit firmware meets the minimum V4.7 HF8 requirement. Keep dimensions 495.00 x 356.00 x 300.00 mm and net weight 18.3 Kg unchanged while comparing project documents and product image evidence.
• Confirm ambient temperature conditions stay within the specified -20 to +50 C range.
• Check electrical supply stability for 380-480 V AC with acceptable frequency variance.
• Review mechanical mounting space to accommodate the 18.3 kg unit weight safely.

• Ensure all project documentation references the exact normalized part number for accuracy.
• Cross-reference electrical schematics with the unfiltered input specification for safety compliance.
• Document any specific environmental factors that might exceed the IP20 protection rating.
• Maintain records of the high and low overload performance data for system sizing.
