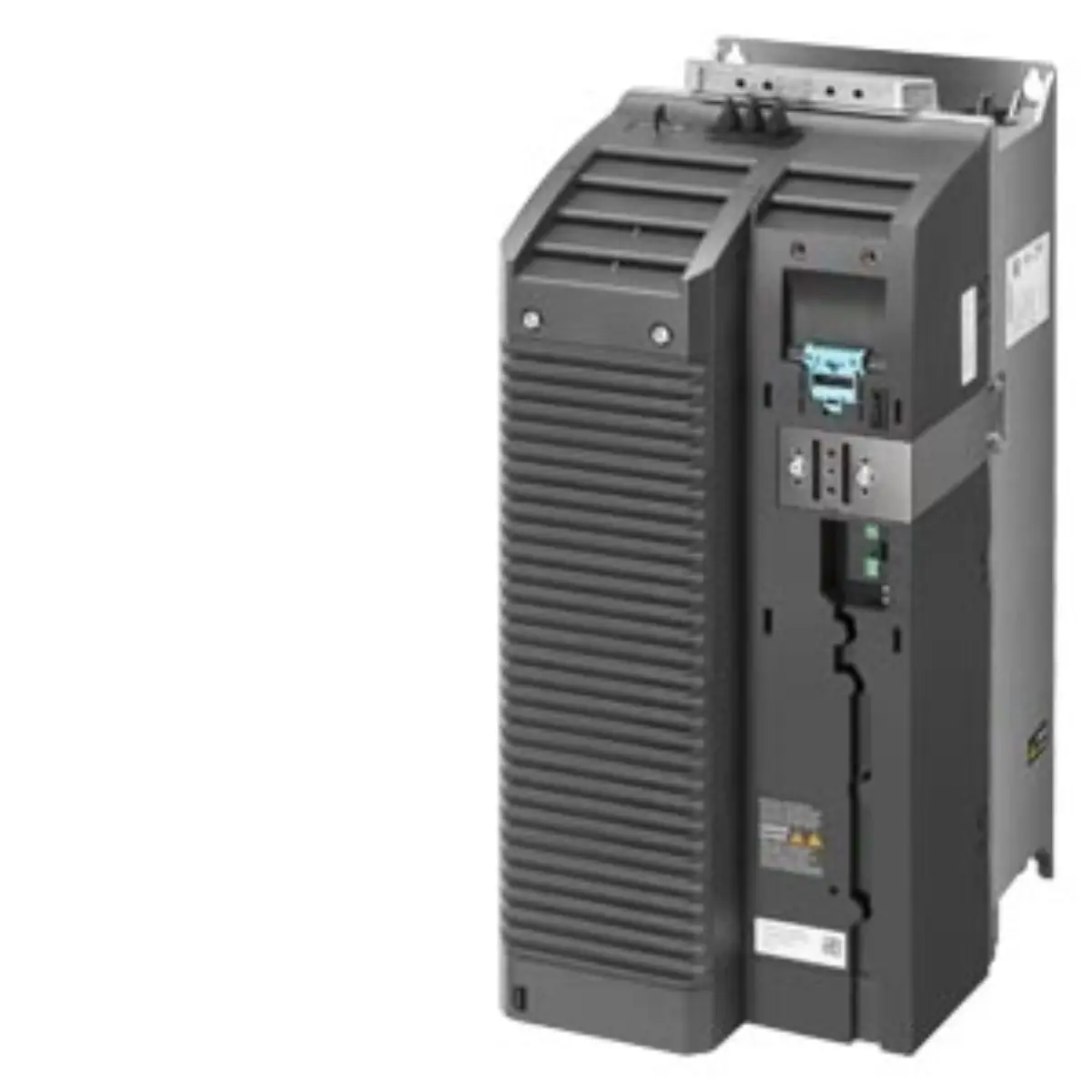

Siemens 6AG1210-1PE26-2AL0 Industrial Drive Component

Part number

6AG1210-1PE26-2AL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

495.00 x 356.00 x 300.00 mm

Net weight

19.00 Kg

Source category

SIPLUS Power Modules

• Rated at 30 kW, this power module operates on 380-480 V three-phase AC input voltage. Keep dimensions 495.00 x 356.00 x 300.00 mm and net weight 19.00 Kg unchanged while comparing project documents and product image evidence.
• The unit includes an integrated Class A filter and a braking chopper for efficient energy management.
• Conformal coating provides protection against harsh environmental conditions, ensuring reliable performance in varied settings.
• Operating temperature range spans from -20°C to +50°C, accommodating diverse industrial climate requirements effectively.
• High overload capacity allows 22 kW at 200% for 3 seconds, supporting peak load demands temporarily.
• Low overload capacity permits 30 kW at 150% for 3 seconds, sustaining moderate overloads during operation.

• Base model reference is 6SL3210-1PE26-0AL0, indicating the foundational hardware configuration for this variant. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Designation FSD specifies the particular design structure and physical layout characteristics of the enclosure.
• Degree of protection is rated IP20, offering basic protection against solid objects larger than 12.5mm.
• Release status requires CU firmware version V4.7 HF8 or later for proper functional integration.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 495.00 x 356.00 x 300.00 mm for spatial planning purposes. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE26-2AL0 record before publication.
• Net weight is listed as 19.00 Kg, assisting in logistics and mounting infrastructure calculations.
• Frequency range is specified as 47-63 Hz, defining the acceptable input power frequency boundaries.
• Voltage tolerance is noted as +10/-20%, indicating permissible fluctuations in the supply voltage levels.
• Absence of CU and operating unit is standard, requiring separate inquiry preparation for control functionality.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Check terminal blocks for secure connection points matching the three-phase AC input specifications.
• Verify labeling clarity for part number 6AG1210-1PE26-2AL0 to ensure correct model identification accuracy.
• Examine housing integrity for any signs of damage that might affect IP20 protection rating.

• Gather project documents specifying required voltage levels and frequency ranges for system application context checks.
• Prepare technical drawings showing recorded space dimensions to verify fitment against 495x356x300 mm size.
• Document environmental conditions including temperature extremes to confirm suitability for -20 to +50 C range.
• List required firmware versions for connected control units to ensure seamless integration and operation.

• Confirm that the engineering service requirement aligns with your project team capabilities and resources.
• Verify that the custom design nature meets your specific application needs without reuse possibilities.
• Ensure all electrical parameters match your facility power distribution system specifications accurately.
• Review firmware requirements thoroughly to avoid integration issues with existing control unit architectures.
