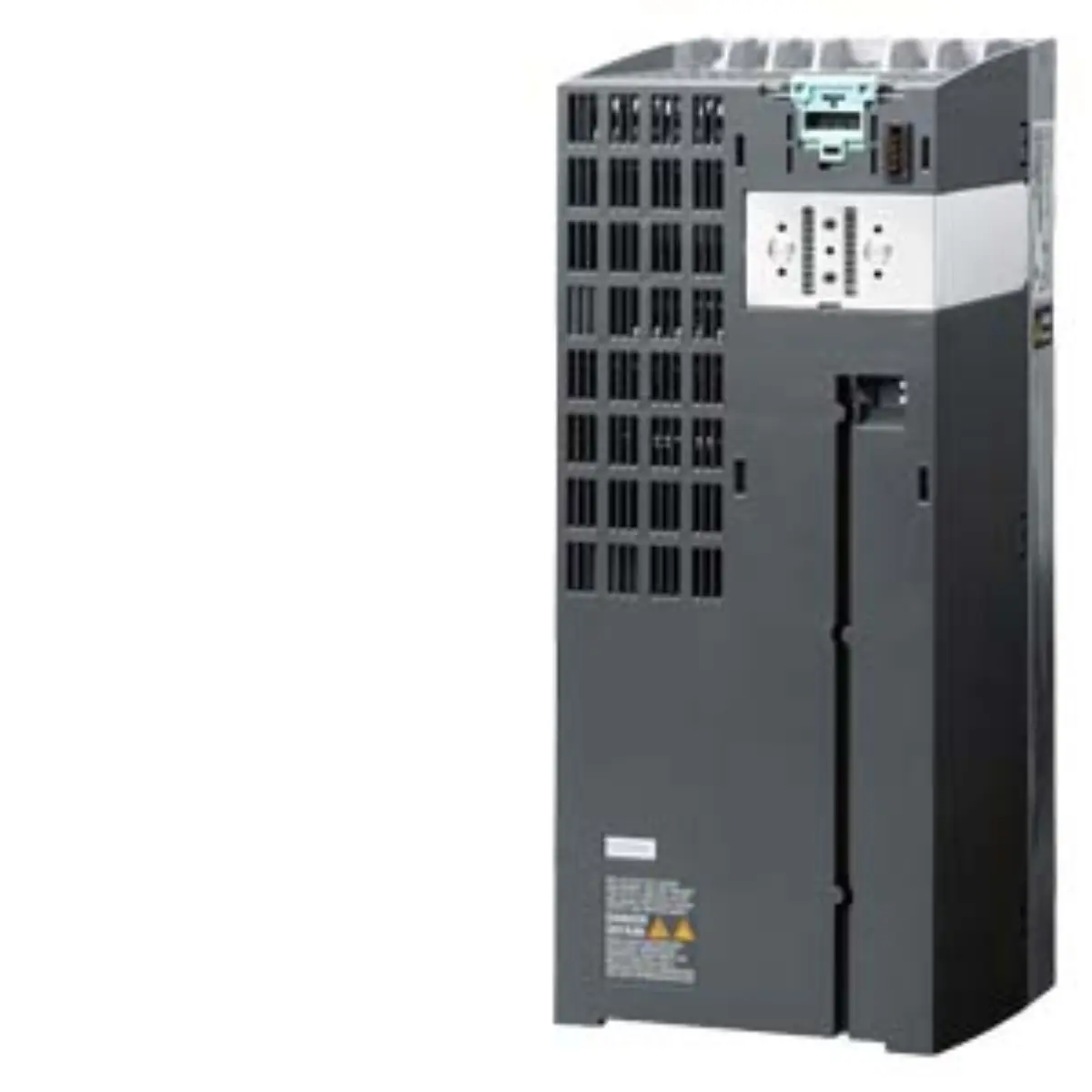

Siemens 6AG1210-1PE23-2UL0 SIPLUS SINAMICS G120 Power Module

Part number

6AG1210-1PE23-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

165.00 x 355.00 x 196.00 mm

Net weight

5.644 Kg

Source category

SIPLUS Power Modules

• Rated for 15 kW output, this module operates on 3 AC 380-480 V with a tolerance of plus or minus ten percent.
• Frequency range spans from 47 to 63 Hz, ensuring application context with various standard industrial power supply configurations and grid frequencies.
• High overload capacity allows 11 kW at two hundred percent load for three seconds, providing necessary torque peaks during startup phases.
• Low overload settings support 15 kW at one hundred fifty percent for three seconds, balancing sustained performance with thermal limits effectively.
• Integrated braking chopper handles regenerative energy efficiently, protecting the drive system from voltage spikes during deceleration cycles in motor operations.
• Conformal coating protects internal circuitry against moisture and contaminants, extending service life in harsh industrial environments with elevated humidity levels.

• Base model reference links to 6SL3210-1PE23-3UL0, indicating the underlying hardware platform used for this specialized SIPLUS variant configuration.
• Designation FSC denotes the specific form factor and construction style, influencing physical mounting requirements and spatial planning in control cabinets.
• Degree of protection IP20 indicates basic finger protection but requires additional enclosure measures for dust or water exposure in open areas.
• Released as of CU firmware version V4.7 HF8, ensuring software synchronization between control units and power modules for optimal functionality.

Parameters are factual source fields retained for model review.

• Dimensions measure 165.00 x 355.00 x 196.00 mm, requiring precise spatial allocation within electrical enclosures and panel layouts for installation.
• Net weight recorded at 5.644 Kg, necessitating appropriate mounting hardware and structural support to handle the mass securely during operation.
• Operating temperature range spans from negative twenty to positive fifty degrees Celsius, defining the thermal envelope for reliable continuous performance.
• Power module lacks integrated control unit and operating unit, requiring separate inquiry preparation and configuration of application context CU components for full system operation.
• Unfiltered input design suggests direct connection considerations, potentially impacting electromagnetic interference levels and requiring adherence to local EMC installation guidelines.

• Front view typically displays terminal blocks and connection points for power cables, highlighting the input and output interfaces for wiring diagrams.
• Side profile reveals the compact vertical orientation, useful for visualizing space utilization in dense control cabinet arrangements and rack installations.
• Rear perspective shows mounting holes and heat dissipation features, critical for verifying mechanical fit and thermal management strategy in enclosures.
• Label details confirm the part number and technical ratings, serving as a primary reference for verification during physical inspection and inventory checks.

• Verify required control unit firmware version matches V4.7 HF8 or higher to ensure proper communication and functionality with the power module.
• Confirm ambient temperature conditions remain within the specified negative twenty to positive fifty degrees Celsius range for uninterrupted operational reliability.
• Assess physical space constraints against the 165 x 355 x 196 mm dimensions to documented adequate clearance for maintenance and airflow.
• Review project documentation for specific IP rating requirements, as the base IP20 design may need additional enclosure solutions for harsh environments.

• Product lifecycle status is Active, indicating ongoing production and support review details for new project implementations and system expansions.
• Classification B notes indicate restricted review notes, advising careful initial specification review before finalizing inquiry preparation decisions for this item.
• Source parameter review confirms technical alignment with SIPLUS standards, ensuring consistency with other components in the extended environment product line.
• Project document review recommended to validate all electrical and mechanical requirements against the detailed specifications provided in the technical summary.
