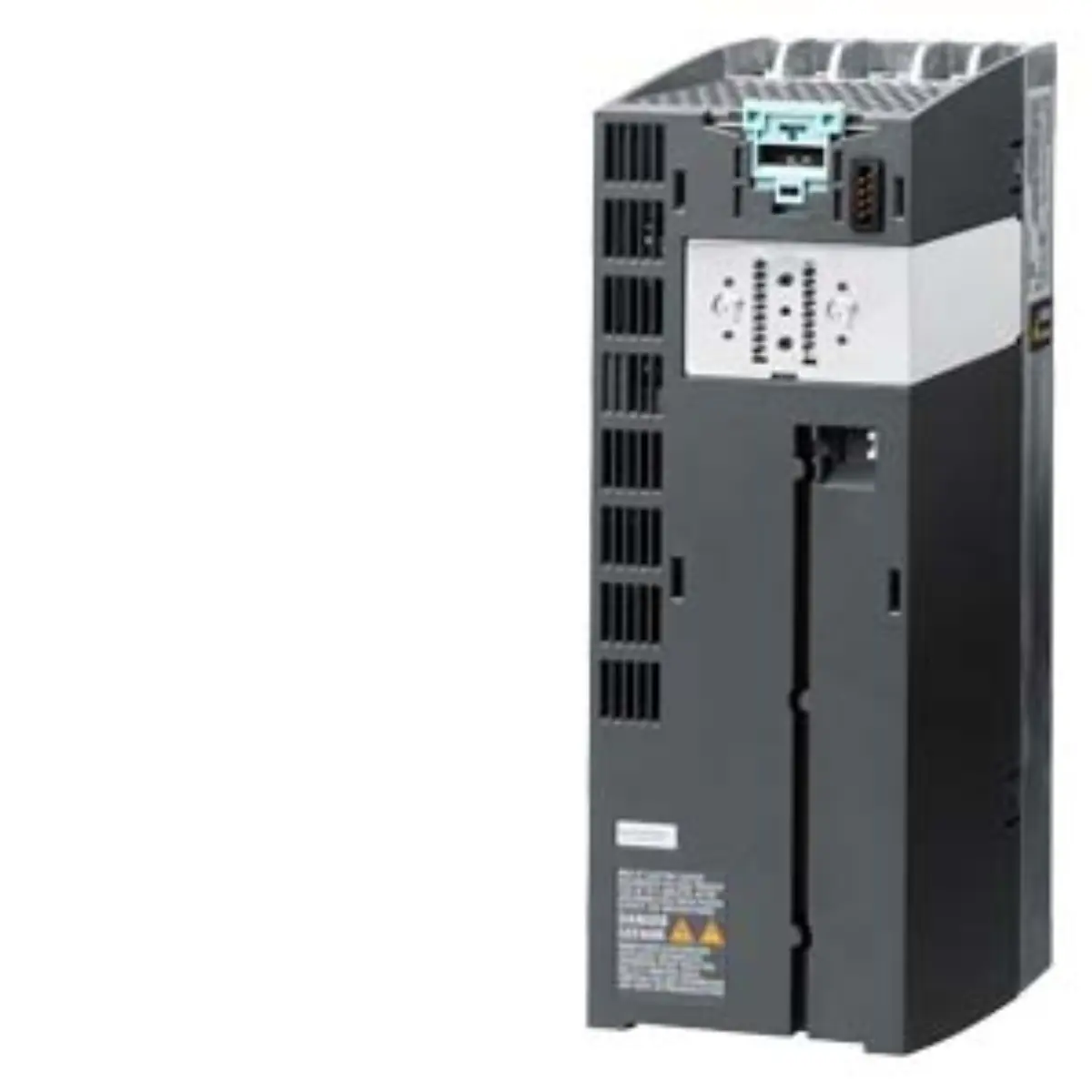

Siemens 6AG1210-1PE21-2UL0 SIPLUS G120 PM240-2 Power Module

Part number

6AG1210-1PE21-2UL0

Brand

Siemens

Category

Drives & Motion

Product type

SIPLUS G120 PM240-2 IP20-FSA-U-400V 7

Lifecycle

Active Product

Dimensions

165.00 x 292.00 x 100.00 mm

Net weight

3.306 Kg

Source category

SIPLUS Power Modules

• Rated at 7.5 kW, this power module operates on 400V three-phase AC input with tolerance bands. Keep dimensions 165.00 x 292.00 x 100.00 mm and net weight 3.306 Kg unchanged while comparing project documents and product image evidence.
• High overload capacity allows 5.5 kW at 200% load for three seconds during peak operational demands.
• Low overload settings support 7.5 kW at 150% load for three seconds under standard operating conditions.
• The unit maintains 100% load capability for up to two hundred and forty seconds continuously.
• Physical dimensions measure 165 millimeters in height, 292 millimeters in width, and 100 millimeters in depth.
• Net weight is recorded at 3.306 kilograms, facilitating standard mounting procedures within industrial drive cabinets.

• Base model reference links to 6SL3210-1PE21-8UL0 for foundational technical comparison and specification alignment. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates enhanced environmental protection listed for harsh industrial process automation applications.
• IP20 degree of protection classifies the enclosure for indoor use without direct liquid ingress risks.
• FSB design configuration denotes specific mechanical housing characteristics relevant for panel integration planning.

Parameters are factual source fields retained for model review.

• Frequency range spans from 47 to 63 Hertz, accommodating standard global power grid variations.
• Voltage tolerance is specified at plus or minus ten percent for stable three-phase AC supply.
• Control Unit firmware version V4.7 HF8 is required for full operational release and feature access.
• Operating units are not included with this power module, requiring separate inquiry preparation for interface needs.
• Braking chopper integration supports energy dissipation for rapid deceleration cycles in dynamic motion control tasks.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Label verification ensures the part number matches 6AG1210-1PE21-2UL0 for accurate inventory and request processes.
• Terminal block orientation must align with standard wiring diagrams for proper electrical connection establishment.
• Mounting hole patterns correspond to the specified 291x100x165 millimeter footprint for cabinet installation.

• Verify Control Unit firmware application context before initiating the inquiry to ensure seamless system integration.
• Confirm ambient temperature requirements fall within the specified minus twenty to plus fifty Celsius range.
• Assess power supply voltage stability to ensure it meets the 380-480V three-phase AC criteria.
• Document specific overload duration needs to validate the high and low overload performance parameters.

• Product lifecycle status is listed as Active, indicating current production and support review details.
• Classification B notes indicate restricted review notes, requiring direct contact with Siemens review contacts.
• Technical specifications should be cross-referenced with project documentation before finalizing any inquiry preparation decisions.
• Inquiries must address specific application requirements to ensure optimal performance in target industrial environments.
