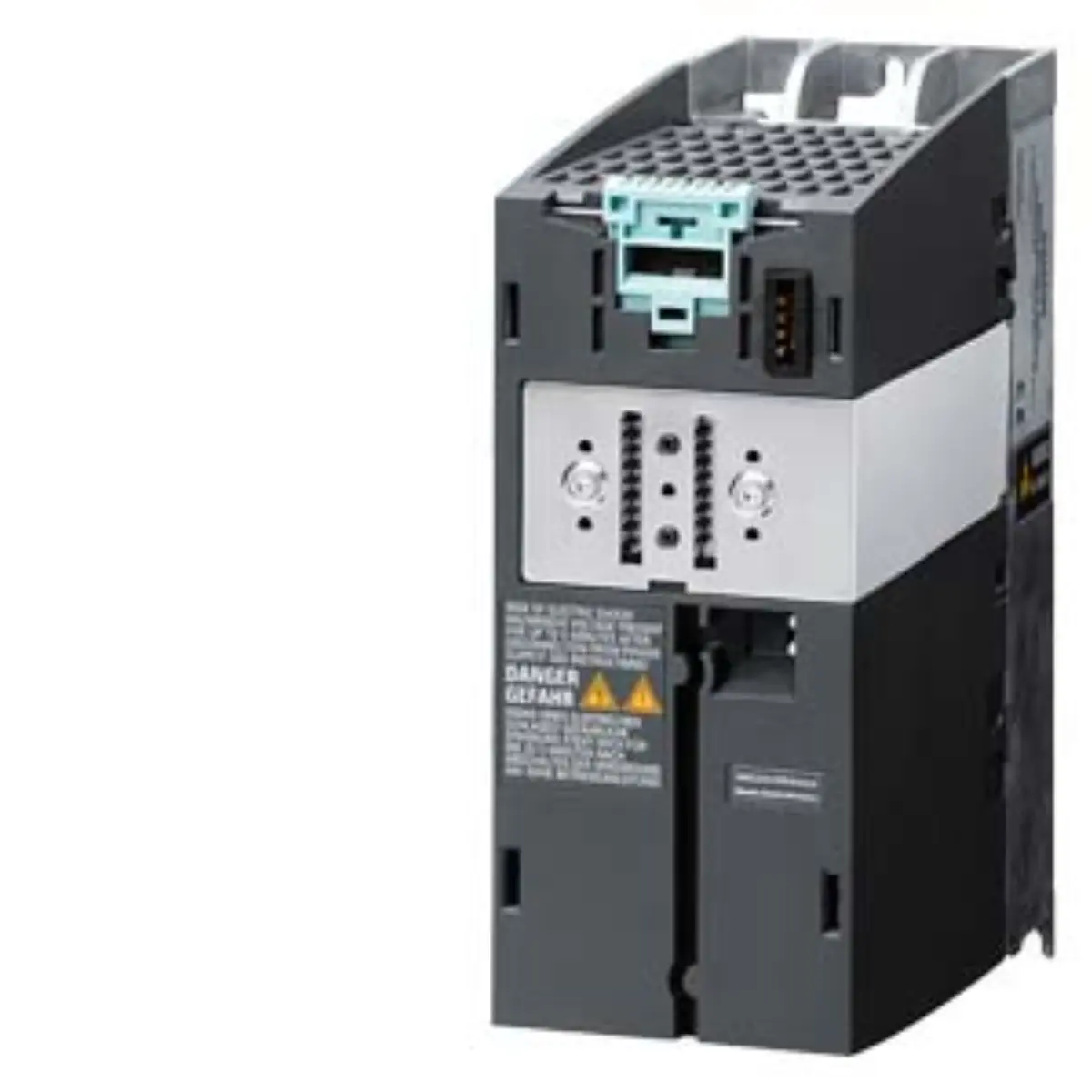

Siemens 6AG1210-1PE18-2UL1 Industrial Drive Component

Part number

6AG1210-1PE18-2UL1

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

165.00 x 73.00 x 196.00 mm

Net weight

1.762 Kg

Source category

SIPLUS Power Modules

• Rated power output is 3 kW at 400V three-phase AC input voltage. Keep dimensions 165.00 x 73.00 x 196.00 mm and net weight 1.762 Kg unchanged while comparing project documents and product image evidence.
• High overload capacity provides 2.2 kW at 200% load for three seconds duration.
• Low overload capacity delivers 3 kW at 150% load for three seconds duration.
• Physical dimensions are recorded as 165 mm height by 73 mm width.
• Depth measurement is listed as 196 mm for spatial planning purposes.
• Net weight is approximately 1.762 kilograms for handling and logistics assessment.

• Base model reference is 6SL3210-1PE18-0UL1 for architectural comparison. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Design variant is classified as FSA for specific mounting configurations.
• Degree of protection is IP20 for indoor panel installation environments.
• Unit does not include a Control Unit or separate operating interface.

Parameters are factual source fields retained for model review.

• Frequency range is specified as 47 to 63 Hz for motor synchronization. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE18-2UL1 record before publication.
• Voltage tolerance allows plus or minus ten percent variation on input.
• Braking chopper operates within 380 to 480 V DC bus range.
• Firmware requirement is CU version V4.7 HF8 or later for release.
• Lifecycle status is active product with restricted review note conditions.

• Verify physical labeling matches the part number 6AG1210-1PE18-2UL1 exactly. Review Siemens 6AG1210-1PE18-2UL1 as Drives & Motion with source category SIPLUS Power Modules, recorded lifecycle Active Product, and submitted model identity.
• Check for conformal coating integrity on internal circuit board components.
• Inspect terminal blocks for corrosion or damage prior to installation.
• Confirm IP20 rating suitability for the intended enclosure environment.

• Prepare detailed project documentation specifying voltage and frequency requirements. Keep dimensions 165.00 x 73.00 x 196.00 mm and net weight 1.762 Kg unchanged while comparing project documents and product image evidence.
• Review mechanical drawings to ensure 165x73x196 mm fitment constraints.
• Confirm firmware version application context with existing Control Unit hardware.
• Document environmental conditions to validate -20 to +50 C operation.

• Ensure all technical parameters align with the specific application needs. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1210-1PE18-2UL1 record before publication.
• Contact the designated Siemens review contacts for further technical clarification requests.
• Review the submitted model against current firmware release notes carefully.
• Source parameter review is essential for accurate project specification matching.
