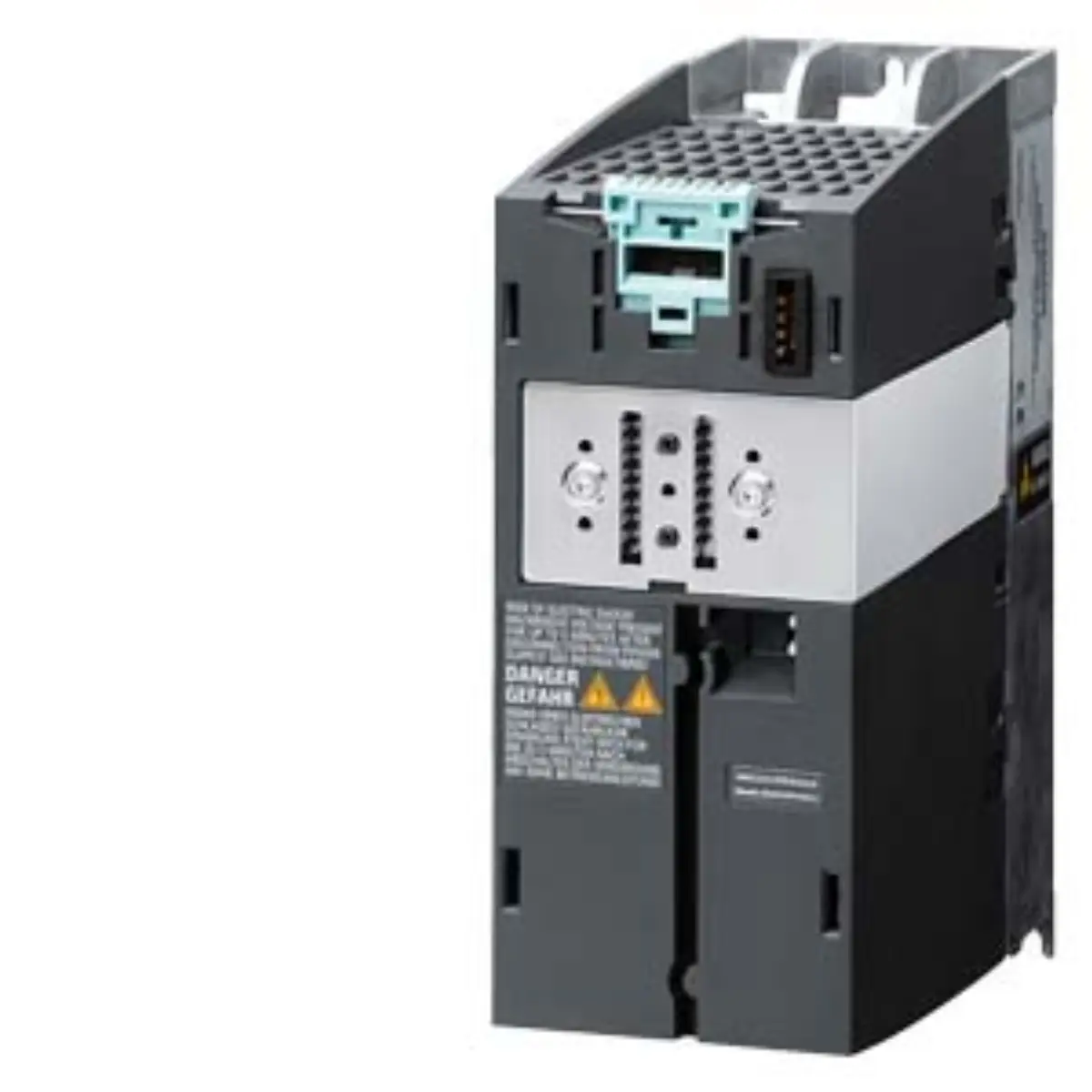

Siemens 6AG1210-1PE14-2UL1 SIPLUS G120 PM240-2 Power Module

Part number

6AG1210-1PE14-2UL1

Brand

Siemens

Category

Drives & Motion

Product type

SIPLUS G120 PM240-2 IP20- FSA-U-400V 1

Lifecycle

Active Product

Dimensions

165.00 x 73.00 x 196.00 mm

Net weight

1.622 Kg

Source category

SIPLUS Power Modules

• Rated power output is 1.5 kW with high overload capacity of 1.1 kW at 200% for three seconds. Keep dimensions 165.00 x 73.00 x 196.00 mm and net weight 1.622 Kg unchanged while comparing project documents and product image evidence.
• Low overload settings allow 1.5 kW at 150% for three seconds and 100% for two hundred forty seconds.
• Operating temperature range extends from minus twenty degrees Celsius to plus fifty degrees Celsius for robust usage.
• Input voltage specification covers 380 to 480 volts AC with a tolerance of plus or minus ten percent.
• Frequency range is maintained between 47 and 63 Hz to ensure consistent motor control and drive stability.
• Physical dimensions are recorded as 196 mm height, 73 mm width, and 165 mm depth for integration planning.

• Base model reference is 6SL3210-1PE14-3UL1, adapted for SIPLUS extreme environment applications and specifications. Use the source path Drive technology / SIPLUS SINAMICS G120 / SIPLUS Power Modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Design variant is classified as FSA, indicating specific housing and mounting configuration for industrial deployment.
• Degree of protection is listed as IP20, providing basic protection against solid objects and limited ingress.
• Release status requires Control Unit firmware version V4.7 HF8 or later for full operational functionality.

Parameters are factual source fields retained for model review.

• Net weight is recorded at 1.622 kilograms, assisting in structural load calculations for mounting assemblies.
• Lifecycle status is active, ensuring ongoing support and documentation review details for current engineering projects.
• Product class indicates restricted review note, requiring direct contact with Siemens review contacts for processing.
• Integrated braking chopper handles regenerative energy, eliminating need for external components in many standard setups.

• Visual inspection should confirm the presence of conformal coating on internal circuitry components for protection.
• Labeling must clearly display the full part number 6AG1210-1PE14-2UL1 for accurate inventory and request.
• Terminal blocks and connection points should be checked for integrity before installation in drive systems.
• Dimensions verification against 196x73x165 mm ensures proper fit within existing electrical cabinet enclosures.

• Review project voltage requirements to ensure alignment with the 380-480 V AC input specification.
• Confirm ambient temperature conditions stay within the minus twenty to plus fifty degrees Celsius range.
• Verify Control Unit firmware version meets the minimum requirement of V4.7 HF8 for application context.
• Prepare technical documentation detailing specific overload cycles and braking chopper usage for accurate assessment.

• Source parameter review confirms the 1.5 kW rating and associated overload capabilities for heavy loads.
• Project document review should address the restricted review note and review contacts contact requirements for request.
• Technical specification analysis highlights the importance of firmware version compliance for optimal module performance.
• Environmental rating verification ensures the IP20 and conformal coating meet specific site protection needs.
