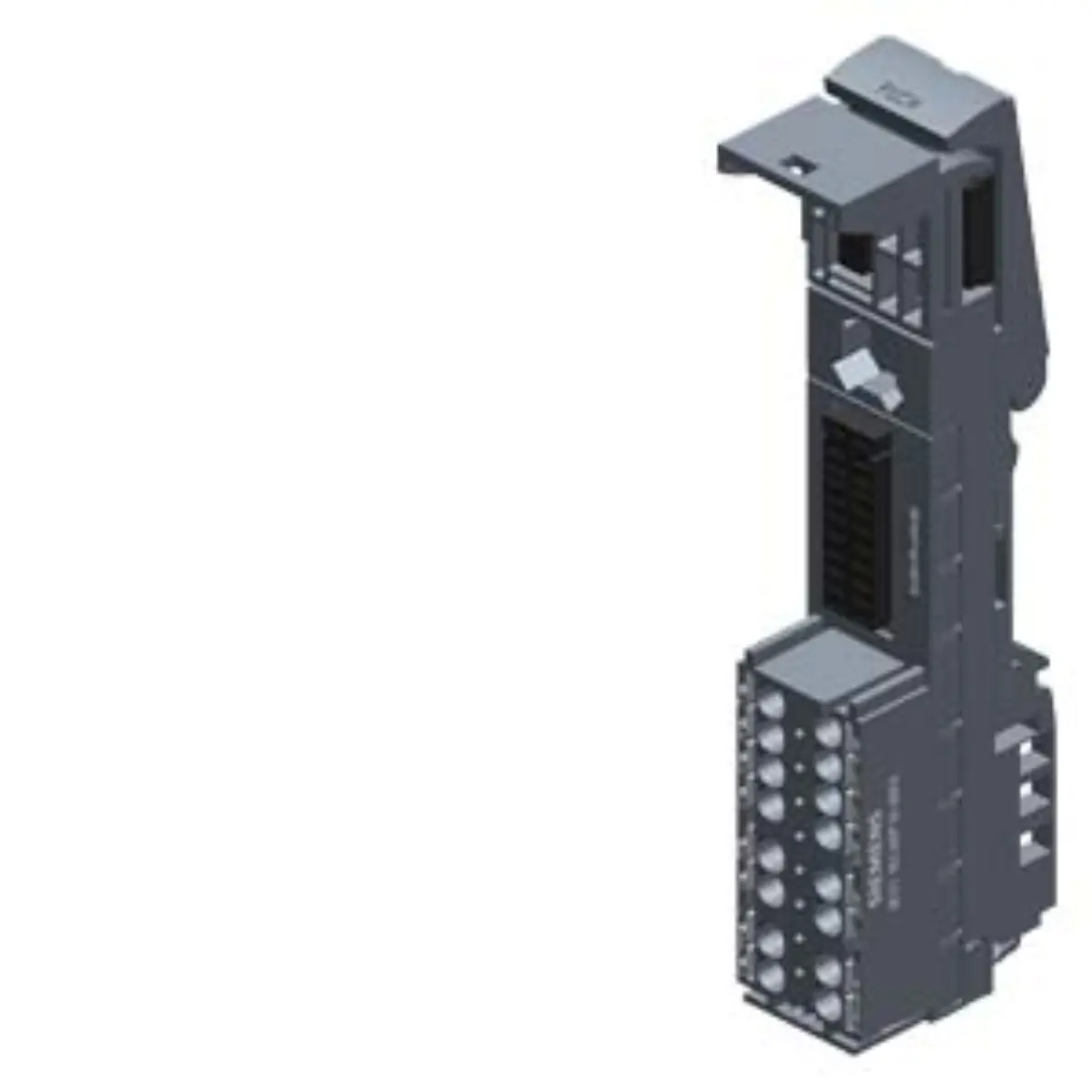

Siemens 6AG1193-6BP20-2BF0 Industrial Automation Component

Part number

6AG1193-6BP20-2BF0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

12.00 x 4.00 x 3.00 cm

Net weight

0.056 Kg

Source category

SIPLUS BaseUnits

• Operating temperature range spans from -40 °C to +60 °C, ensuring reliable function in extreme environmental conditions without performance degradation.
• The unit utilizes push-in terminal technology for secure electrical connections, facilitating rapid installation and maintenance procedures during system setup phases.
• Conformal coating is applied to the printed circuit board assembly, providing enhanced protection against humidity, chemicals, and other industrial contaminants.
• Physical dimensions are recorded as 20 mm width by 117 mm height, allowing compact integration into standard DIN rail mounting configurations.
• Net weight is listed at 0.056 kg, contributing to lightweight design considerations for modular automation systems requiring minimal structural load.
• The BU type F0 designation indicates specific base unit characteristics aligned with the ET 200SP system architecture and communication protocols.

• Part number 6AG1193-6BP20-2BF0 uniquely identifies this SIPLUS variant within the Siemens product catalog for precise inventory and inquiry tracking.
• The normalized identifier 6AG11936BP202BF0 removes hyphens for database consistency while maintaining the original alphanumeric sequence for reference purposes.
• Base model 6ES7193-6BP20-0BF0 serves as the foundational hardware platform, with the AG prefix denoting the extended industrial specification version.
• Suffix BF0 confirms the specific configuration including four auxiliary terminals bridged to the left, distinguishing it from other BU20 variants.
