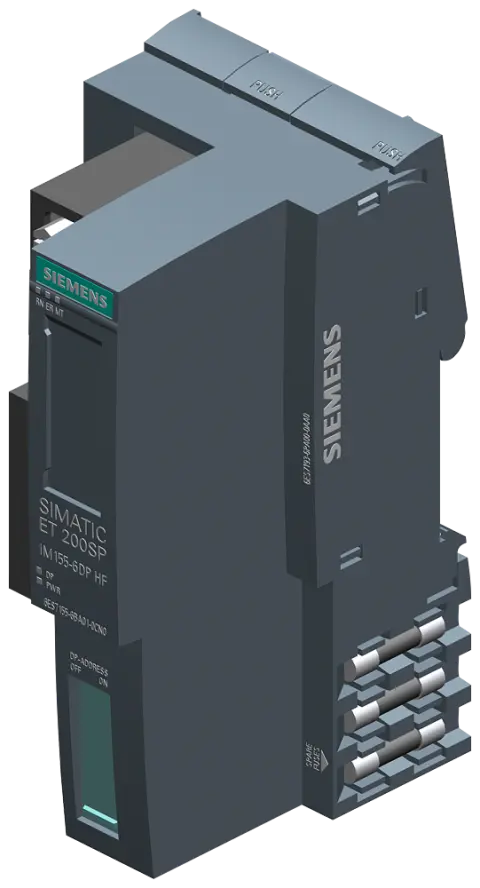

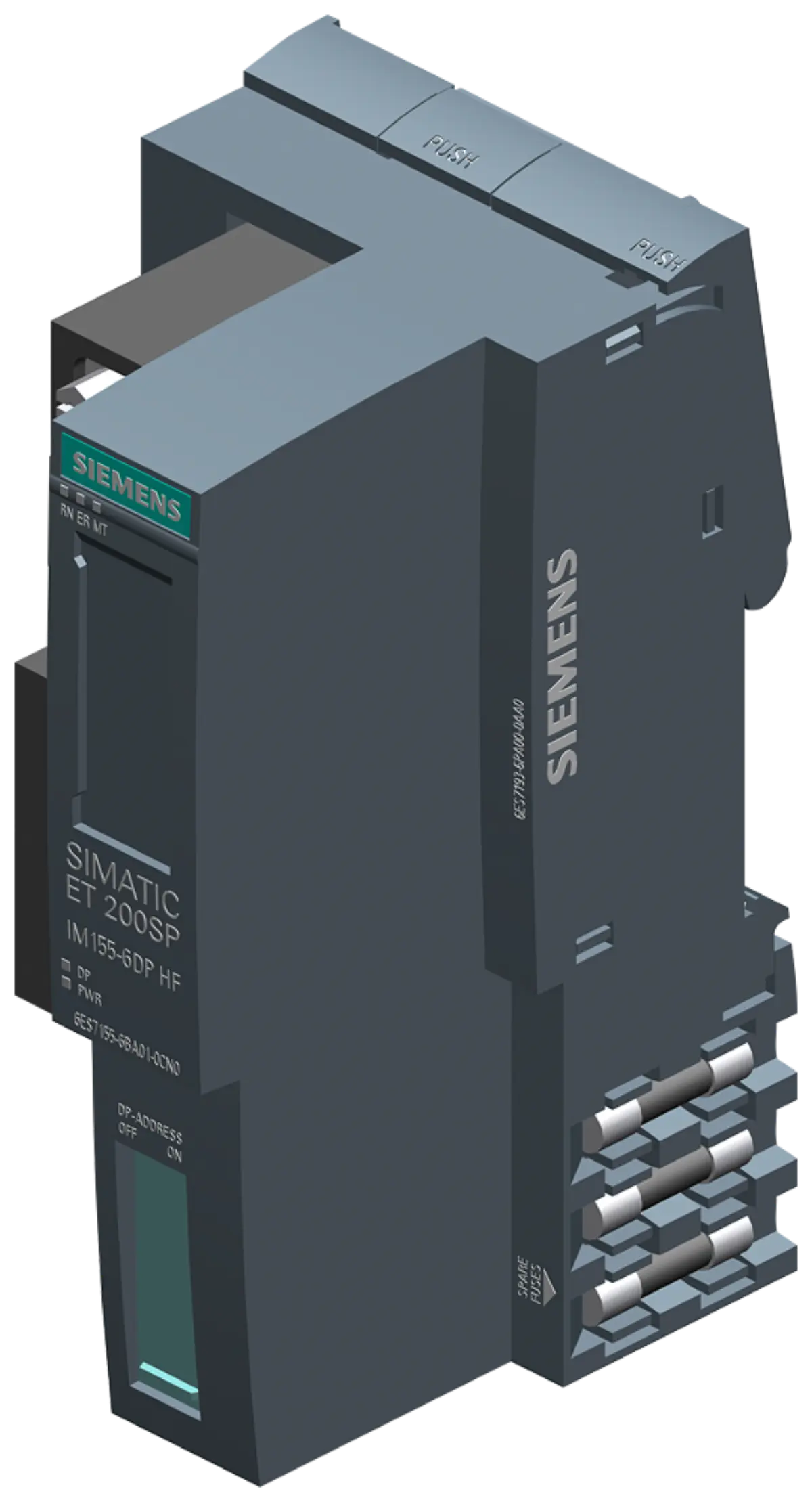

Siemens 6AG1155-6BA01-7CN0 SIPLUS ET 200SP Interface Module

Part number

6AG1155-6BA01-7CN0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP IM155-6DP HF based on 6ES7155-6BA01-0CN0 with conformal coating, -40…+70 °C, bundle PROFIBUS IM, max

Lifecycle

Active Product

Dimensions

12.2 x 8.00 x 6.00 cm

Net weight

0.234 Kg

Source category

SIPLUS interface modules

• The device operates within a temperature range of -40°C to +70°C, ensuring functionality in severe climates. Keep dimensions 12.2 x 8.00 x 6.00 cm and net weight 0.234 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating is applied to protect internal components against moisture, dust, and corrosive substances effectively.
• The bundle supports a maximum of 32 I/O modules for extensive input and output signal handling.
• It also accommodates up to 16 ET 200AL modules to expand local I/O capabilities significantly.
• Multi-hot swap functionality allows for module changes without interrupting the overall system power supply.
• The physical dimensions are recorded as 12.2 x 8.00 x 6.00 cm with a net weight of 0.234 Kg.

• The base hardware corresponds to the 6ES7155-6BA01-0CN0 model with specific SIPLUS enhancements applied.
• The product lifecycle status is listed as Active Product, indicating current manufacturing and support review details.
• Classification B indicates review restrictions, requiring direct contact with designated Siemens review contacts for processing.
• The item falls under the Automation technology category, specifically within the ET 200SP product line.
