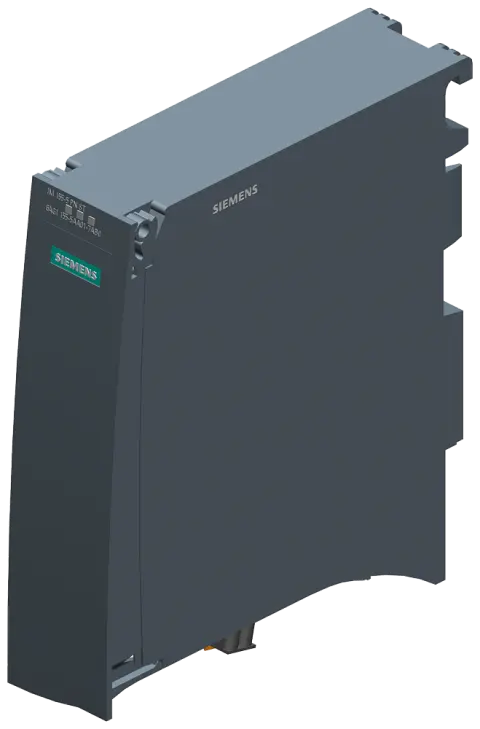

Siemens 6AG1155-5AA01-7AB0 SIPLUS ET 200MP Interface Module

Part number

6AG1155-5AA01-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.4 x 14.9 x 4.3 cm

Net weight

0.306 Kg

Source category

SIPLUS IM 155-5 PN

• Network communication utilizes PROFINET IO standards with integrated MRP support for ring topology redundancy. Keep dimensions 15.4 x 14.9 x 4.3 cm and net weight 0.306 Kg unchanged while comparing project documents and product image evidence.
• Isochronous real-time transmission capability is specified with a cycle time threshold of 0.25 milliseconds minimum.
• Physical dimensions are recorded at 15.4 by 14.9 by 4.3 centimeters for spatial planning assessments.
• Net weight is listed as 0.306 kilograms, aiding in logistical handling and mounting structure calculations.
• Operating temperature range extends from minus forty degrees Celsius to plus seventy degrees Celsius for robustness.
• Firmware updates support isochronous mode configuration changes to maintain synchronization accuracy during system modifications.

• Base hardware reference links to the standard 6ES7155-5AA01-0AB0 model for architectural comparison purposes.
• SIPLUS designation indicates enhanced environmental protection features including specialized conformal coating application on circuitry.
• Product lifecycle status is currently active, indicating ongoing manufacturing and support review details for new projects.
• Module type classification falls under I/O Modules, specifically serving as the interface for the ET 200MP station.

Parameters are factual source fields retained for model review.

• Maximum module capacity reaches thirty I/O units when an additional power supply is integrated into the rack.
• Integrated two-port Ethernet switch facilitates daisy-chain or ring network configurations within the distributed I/O structure.
• Identification functions include I&M0 through I&M3 data recording for asset management and device identification.
• RJ45 shared device port provides standard physical layer connectivity for Ethernet cable attachment and signal transmission.
• Conformal coating protects internal components against moisture, dust, and corrosive agents in demanding industrial settings.

• Visual inspection should confirm the presence of the SIPLUS branding and specific model number labeling.
• Port configuration verification ensures both Ethernet interfaces are accessible and undamaged prior to installation.
• Mounting rail application context check confirms standard DIN rail attachment points are intact and functional.
• Label legibility assessment verifies that technical data plates are readable for accurate inventory and request.

• Gather current project schematics highlighting the ET 200MP station location and PROFINET network topology details.
• Document required operating temperature conditions to verify the extended range meets specific environmental constraints.
• List the total number of I/O modules planned for the station to assess power supply needs.
• Prepare facility contact information and technical specifications sheet for direct submission via the inquiry form.

• Verify all dimensional constraints against existing cabinet layouts to ensure physical fitment within the enclosure.
• Confirm network switch settings align with existing PROFINET infrastructure for seamless integration and communication.
• Check firmware version requirements against current system standards to avoid application context issues during commissioning.
• Review safety certifications and environmental ratings to ensure compliance with site-specific regulatory and operational mandates.
