6AG1138-6DB00-2BB1 SIPLUS ET 200SP Pulse Output Module

Part number

6AG1138-6DB00-2BB1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.8 x 6.7 x 3.00 cm

Net weight

0.064 Kg

Source category

SIPLUS TM Pulse 2x24V pulse output module

• This module provides two channels of 24V pulse output capability for industrial control tasks. Keep dimensions 7.8 x 6.7 x 3.00 cm and net weight 0.064 Kg unchanged while comparing project documents and product image evidence.
• Each channel delivers a current capacity of 2 A for driving proportional valves effectively.
• The design supports connection and control of DC motors in various automation setups.
• Conformal coating is applied to protect internal components from moisture and corrosive agents.
• Operating temperature range extends from -40 °C to +60 °C for extreme environments.
• Physical dimensions are recorded at 7.8 x 6.7 x 3.00 cm for space planning.

• The part number 6AG1138-6DB00-2BB1 identifies this specific SIPLUS technology module variant. Use the source path Automation technology / SIPLUS technology modules / SIPLUS TM Pulse 2x24V pulse output module to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the SIPLUS ET 200SP family of distributed I/O systems.
• The base model reference is 6ES7138-6DB00-0BB1 without the environmental enhancements.
• Lifecycle status is listed as Active Product for ongoing project documentation purposes.

Parameters are factual source fields retained for model review.

• Net weight is recorded as 0.064 Kg for logistical and handling assessments. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1138-6DB00-2BB1 record before publication.
• Output type is specified as pulse output with PWM functionality for modulation.
• Channel count is fixed at two independent output channels for signal generation.
• Voltage rating is 24V DC for standard industrial control circuit integration.
• Current limit per channel is 2 A for connected load specifications.

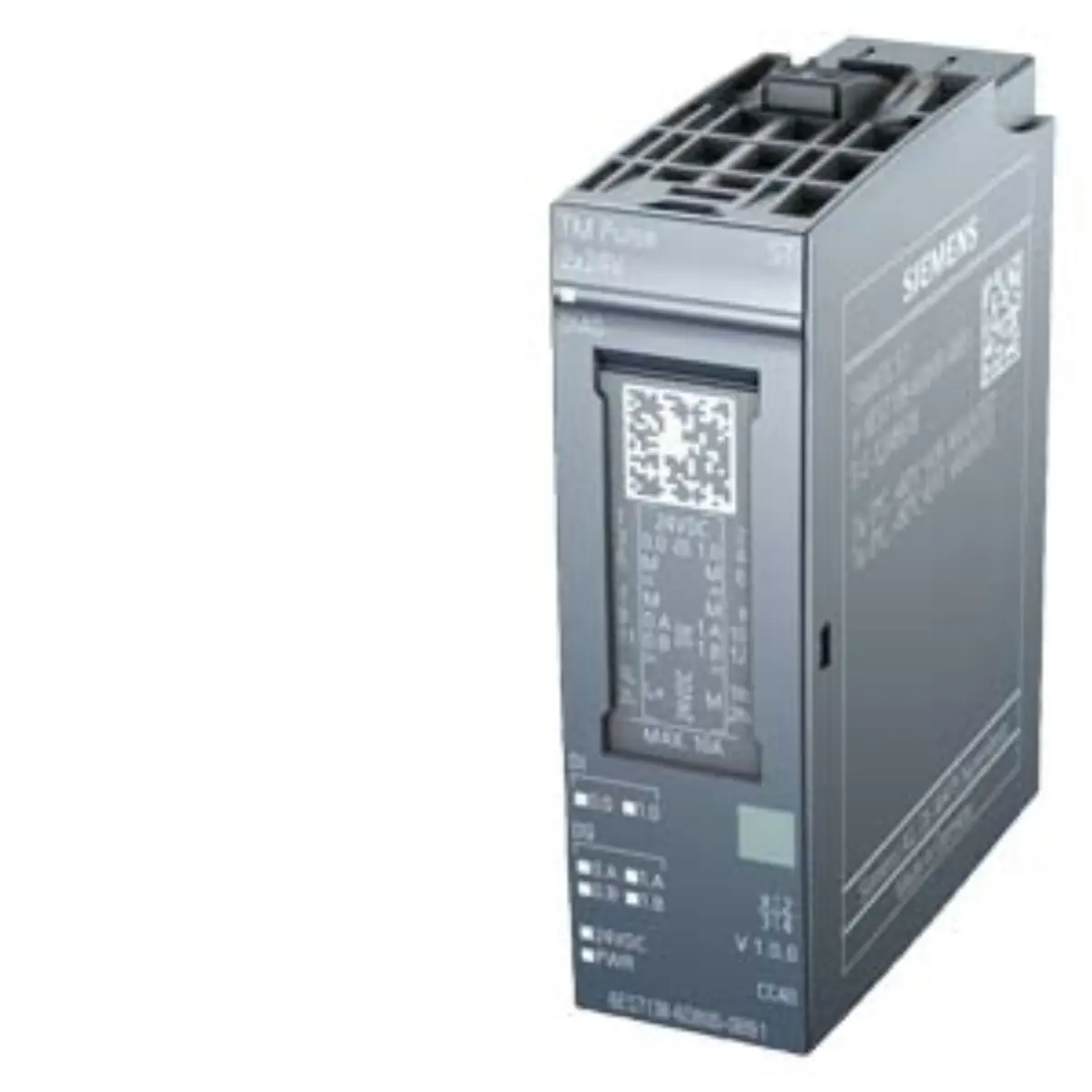

• Visual inspection should confirm the presence of conformal coating on the module surface. Review Siemens 6AG1138-6DB00-2BB1 as I/O Modules with source category SIPLUS TM Pulse 2x24V pulse output module, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG1138-6DB00-2BB1 for verification.
• Connector orientation and pin layout should match ET 200SP system standards.
• Physical dimensions appear consistent with the recorded 7.8 x 6.7 x 3.00 cm size.

• Verify the required operating temperature range matches the -40…+60 °C specification. Keep dimensions 7.8 x 6.7 x 3.00 cm and net weight 0.064 Kg unchanged while comparing project documents and product image evidence.
• Confirm that the load type aligns with proportional valve or DC motor usage.
• Check if the 2 A current capacity per channel meets project electrical demands.
• Ensure the system architecture supports the SIPLUS ET 200SP module form factor.

• Source parameter review indicates compliance with SIPLUS environmental protection standards.
• Project document review should confirm suitability for extreme temperature operational zones.
• Technical specification alignment is necessary for correct integration into ET 200SP racks.
• Model identification verification ensures the correct variant with conformal coating is selected.
