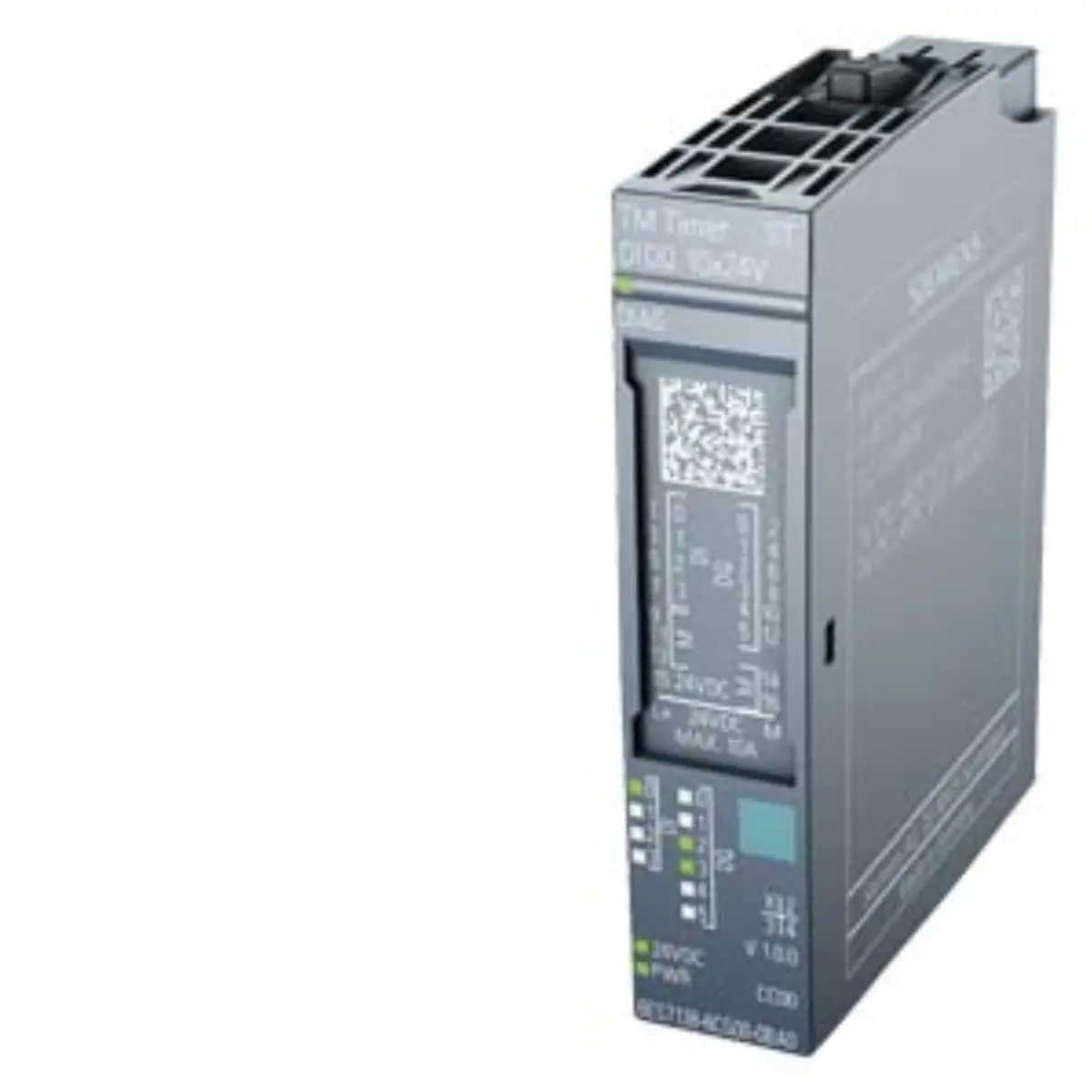

Siemens 6AG1138-6CG00-2BA0 Industrial Automation Component

Part number

6AG1138-6CG00-2BA0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.8 x 2.5 cm

Net weight

0.059 Kg

Source category

SIPLUS TM Timer DIDQ 10x24 V time-based IO module

• The module operates within a temperature range of -40°C to +60°C for reliable performance. Keep dimensions 7.7 x 6.8 x 2.5 cm and net weight 0.059 Kg unchanged while comparing project documents and product image evidence.
• It includes four digital inputs and six digital outputs for comprehensive signal processing capabilities.
• Time stamp counting functionality allows for precise event logging and synchronization in systems.
• Pulse Width Modulation (PWM) support enables detailed control over connected actuators and devices.
• Oversampling features enhance signal integrity and reduce noise interference during high-speed operations.
• Conformal coating provides additional protection against moisture, dust, and corrosive industrial atmospheres.

• Identify this unit as part of the SIPLUS ET 200SP series for distributed I/O systems. Use the source path Automation technology / SIPLUS technology modules / SIPLUS TM Timer DIDQ 10x24 V time-based IO module to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The part number 6AG1138-6CG00-2BA0 distinguishes it from standard ET 200SP timer modules.
• This model is classified as an Active Product within the Siemens automation portfolio documentation.
• It serves as an enhanced variant based on the 6ES7138-6CG00-0BA0 reference design structure.
