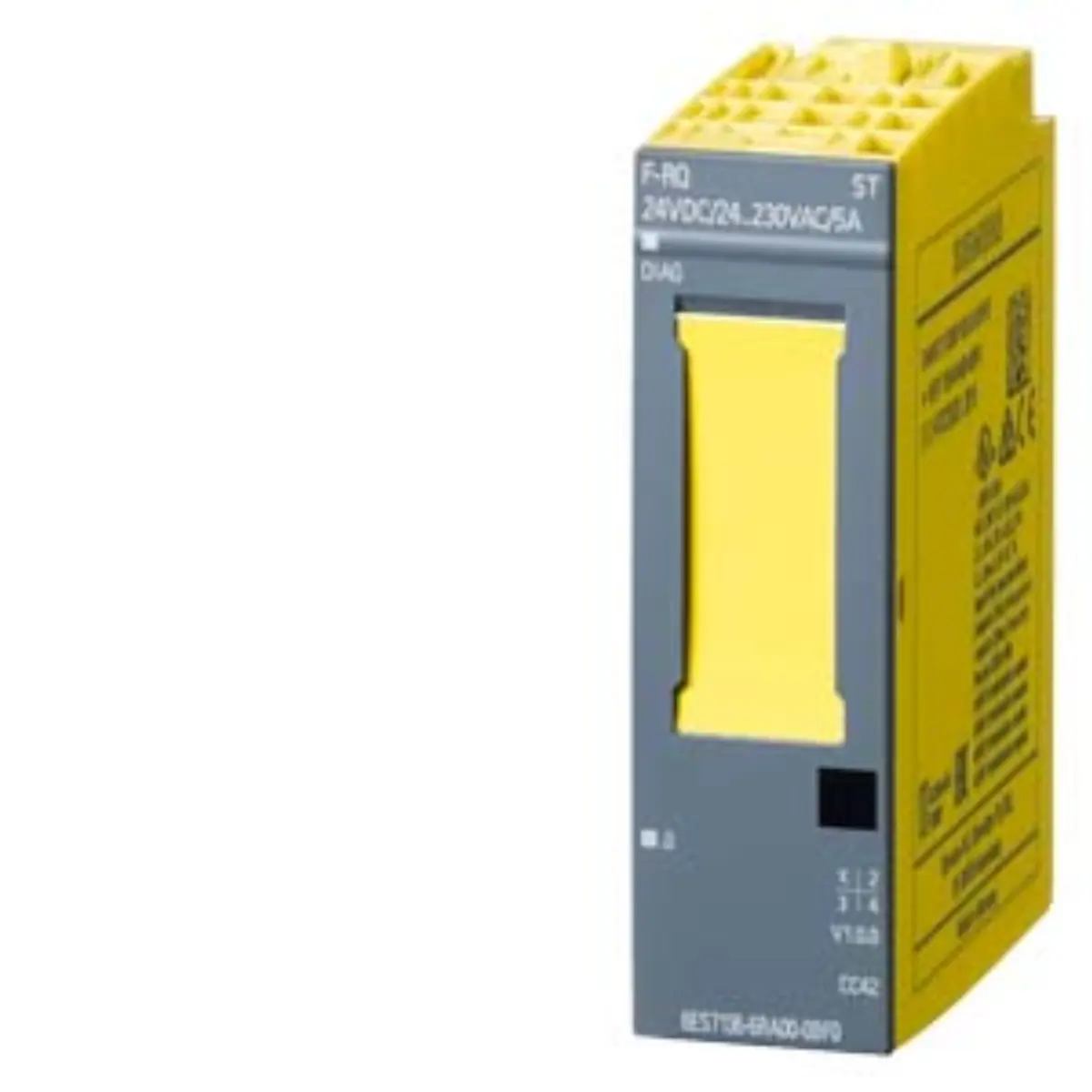

Inquiry for Siemens 6AG1136-6RA00-2BF0 SIPLUS ET 200SP F-RQ Module

Part number

6AG1136-6RA00-2BF0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.5 x 7.00 x 3.00 cm

Net weight

0.074 Kg

Source category

SIPLUS digital F-output module relay

• Physical dimensions are recorded as 7.5 by 7.00 by 3.00 centimeters for spatial planning. Keep dimensions 7.5 x 7.00 x 3.00 cm and net weight 0.074 Kg unchanged while comparing project documents and product image evidence.
• Net weight is listed at 0.074 kilograms, facilitating easy handling during installation procedures.
• Overall module width measures 20 millimeters, allowing compact integration into standard rack systems.
• Output configuration includes one relay contact providing two normally open switching paths for control signals.
• Summation output current capacity reaches 5 amperes, supporting multiple connected loads simultaneously.
• Load voltage specifications cover both 24 volts DC and 24 to 230 volts AC ranges.

• Base model reference is 6ES7136-6RA00-0BF0, indicating the underlying hardware platform structure. Use the source path Automation technology / SIPLUS failsafe I/O modules / SIPLUS digital F-output module relay to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation confirms specialized environmental hardening beyond standard industrial automation module requirements.
• F-RQ suffix identifies the specific fail-safe relay output function type classification.
• DC 24V input requirement defines the necessary supply voltage for internal logic operation.

Parameters are factual source fields retained for model review.

• Safety integrity level SIL 3 compliance is achievable when paired with appropriate F-DQ controllers. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1136-6RA00-2BF0 record before publication.
• PL e classification under ISO 13849-1: 2008 ensures high-performance safety circuit integration.
• Conformal coating application protects internal components from corrosive agents and extreme humidity levels.
• Active product lifecycle status indicates ongoing manufacturing support and technical documentation review details.

• Visual inspection should confirm the presence of conformal coating on exposed circuit surfaces. Review Siemens 6AG1136-6RA00-2BF0 as I/O Modules with source category SIPLUS digital F-output module relay, recorded lifecycle Active Product, and submitted model identity.
• Label verification must match the part number 6AG1136-6RA00-2BF0 exactly for identification purposes.
• Connector orientation and pin layout should align with standard ET 200SP mounting rails.
• Relay output terminals must be clearly visible for proper wiring connection planning.

• Review project documentation to verify required safety integrity levels and performance categories. Keep dimensions 7.5 x 7.00 x 3.00 cm and net weight 0.074 Kg unchanged while comparing project documents and product image evidence.
• Confirm controller application context with F-DQ modules like 6AG1136-6DB00-2CA0 for safe operation.
• Assess environmental conditions to ensure the -30 to +60 degree range meets site needs.
• Calculate total load current requirements to ensure the 5 ampere summation limit is sufficient.

• Source parameter review should validate all electrical ratings against specific application demands.
• Project document review ensures alignment between module capabilities and overall system safety goals.
• Technical specification cross-checking helps prevent mismatches in voltage or current requirements.
• Final submission requires confirmation of all operational constraints and environmental factors considered.
