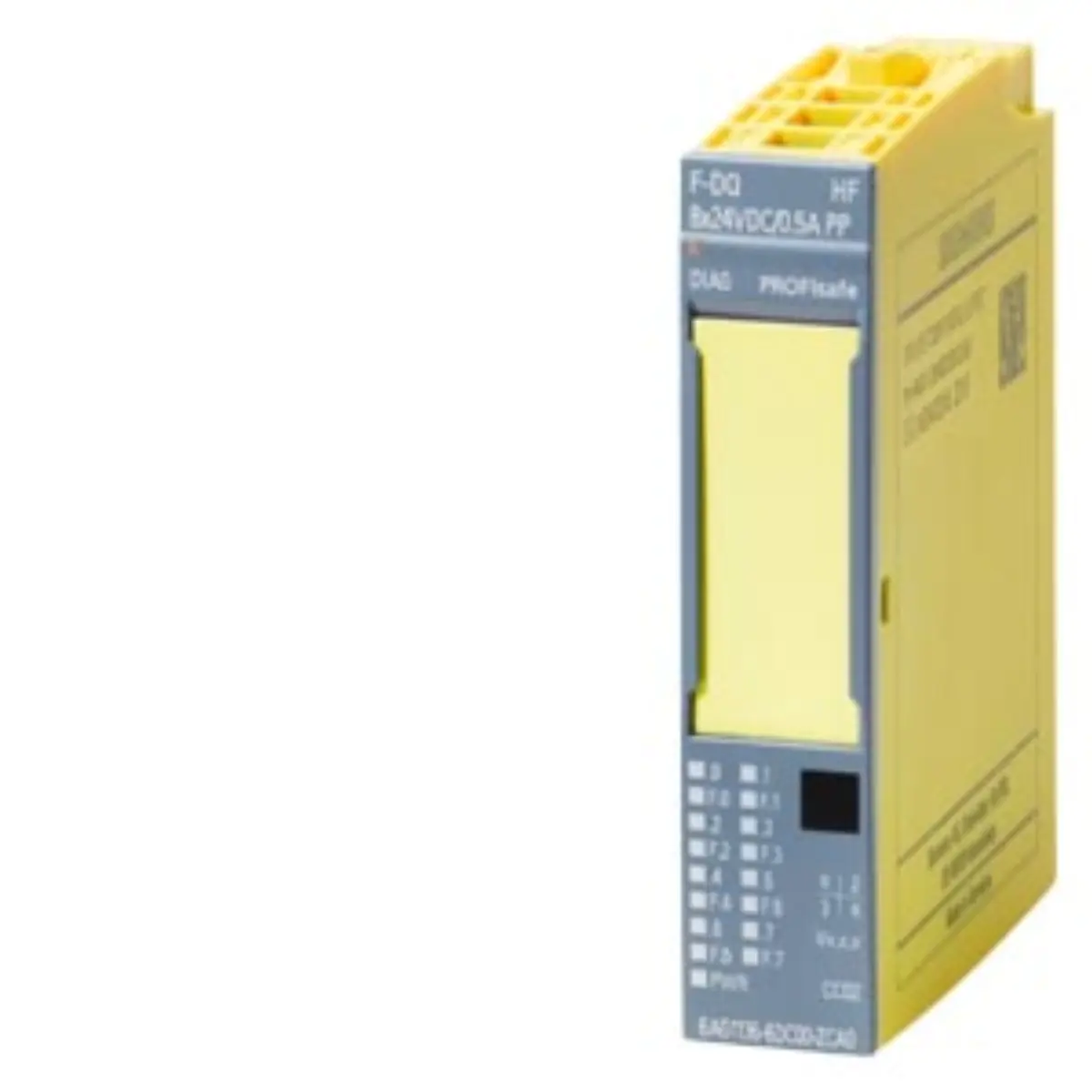

6AG1136-6DC00-2CA0 SIPLUS ET 200SP F-DQ Module Details

Part number

6AG1136-6DC00-2CA0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP F-DQ 8x24VDC/0

Lifecycle

Active Product

Dimensions

7.7 x 6.9 x 3.00 cm

Net weight

0.064 Kg

Source category

SIPLUS digital F-output modules

• The module features eight fail-safe digital outputs rated for 24VDC with a peak current capacity of 0.5A per channel.
• It achieves Category 4 safety classification according to EN ISO 13849-1 standards, ensuring robust performance in critical control loops.
• The device meets Performance Level e requirements and supports Safety Integrity Level 3 compliance under IEC 61508 guidelines.
• Operating temperature range extends from -30°C to +60°C, allowing functionality in extreme thermal environments without performance degradation.
• Conformal coating protects internal circuitry from moisture, dust, and corrosive agents, enhancing longevity in harsh industrial atmospheres.
• Physical dimensions measure approximately 7.7 x 6.9 x 3.00 cm, with a net weight of 0.064 kg for easy integration.

• The base model 6ES7136-6DC00-0CA0 serves as the foundation for this enhanced SIPLUS variant with additional protective features.
• The suffix 2CA0 specifically denotes the extended temperature range and conformal coating application for harsh environment suitability.
• SIPLUS branding indicates that the product undergoes rigorous testing beyond standard industrial automation module requirements.
• ET 200SP designation identifies the distributed I/O system architecture where this module functions as a digital output station.
