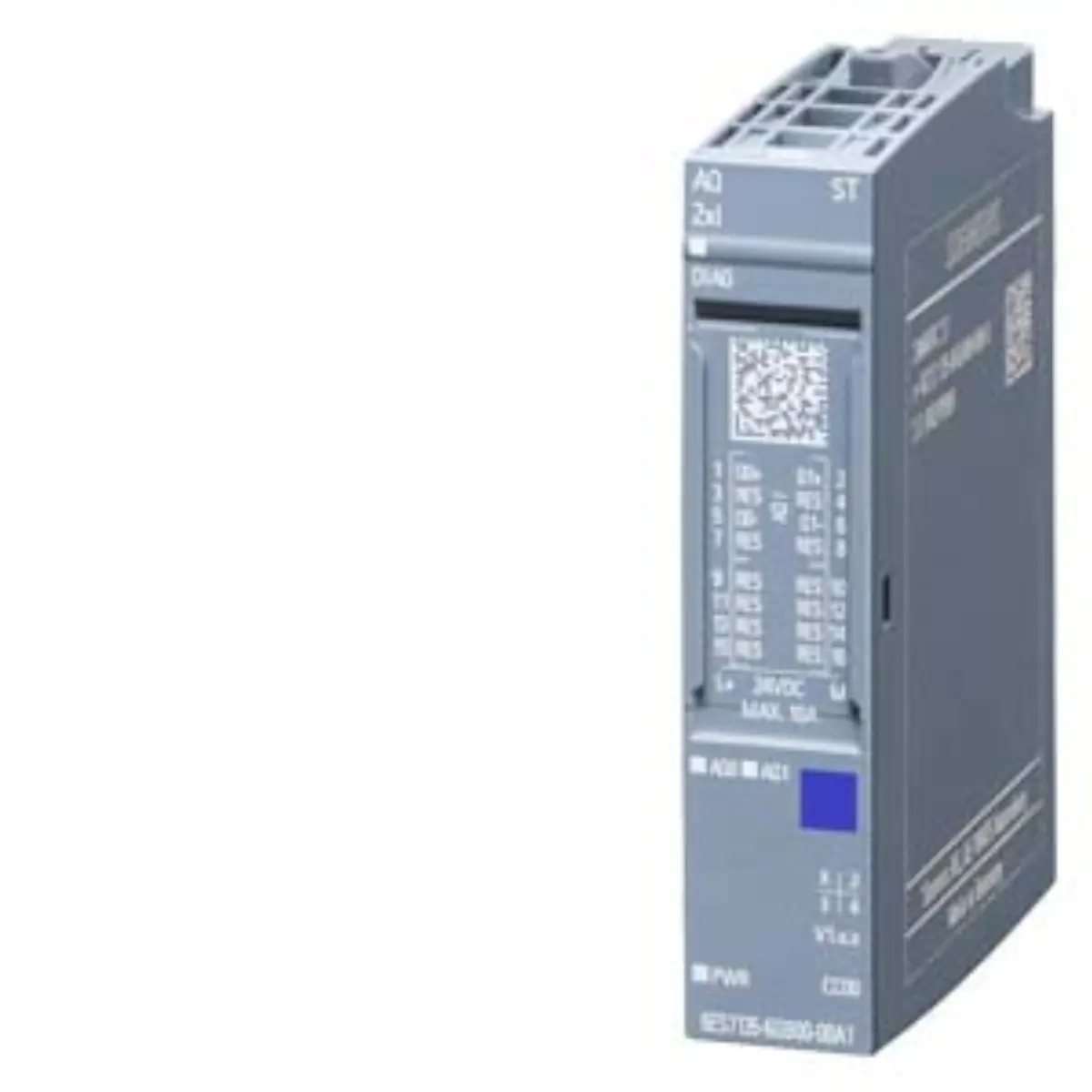

Inquiry for Siemens 6AG1135-6GB00-7BA1 SIPLUS Analog Output Module

Part number

6AG1135-6GB00-7BA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 7.00 x 2.3 cm

Net weight

0.041 Kg

Source category

SIPLUS analog outputs

• This module operates within an extended temperature range of -40°C to +70°C, ensuring reliability in extreme climates.
• The physical dimensions are recorded as 7.7 cm by 7.00 cm by 2.3 cm, allowing compact integration into control cabinets.
• Net weight is listed at 0.041 Kg, contributing to lightweight design considerations for mounting structures and transport logistics.
• Analog output functionality is provided with two channels, supporting standard industrial signaling protocols for process control applications.
• Module diagnostics are included to assist in monitoring operational status and identifying potential issues during runtime performance.
• The base hardware corresponds to the 6ES7135-6GB00-0BA1 model, modified specifically for SIPLUS environmental robustness standards.

• The part number 6AG1135-6GB00-7BA1 identifies this specific variant within the Siemens product portfolio for traceability purposes.
• Color code CC00 is associated with this model, aiding in visual identification during installation and maintenance procedures.
• Lifecycle status is recorded as Active Product, indicating ongoing manufacturing support and documentation review details for current projects.
• Product class B indicates specific handling requirements, suggesting direct contact with documented Siemens representatives for further details.

Parameters are factual source fields retained for model review.

• Resolution is specified as 16 bits, providing high precision for analog signal generation in sensitive industrial automation tasks.
• Conformal coating application is a key feature, protecting internal circuitry from environmental factors like humidity and dust exposure.
• Temperature rating spans from -40°C minimum to +70°C maximum, defining the operational envelope for reliable module performance.
• Output type is classified as standard analog current output, listed for driving various industrial actuators and control devices.
• Diagnostics capability allows for continuous monitoring, helping to maintain system integrity and reduce unplanned downtime events.

• Visual inspection should confirm the presence of the Siemens branding and the specific part number label on the housing.
• Check for any visible signs of damage to the connector pins or the main body of the module unit.
• Verify that the conformal coating appears uniform and intact, covering all necessary areas of the electronic components.
• Ensure the module matches the described dimensions and weight specifications when comparing against physical samples or catalogs.

• Gather all relevant project documentation, including system architecture diagrams and specific environmental condition requirements for the installation site.
• Confirm the exact quantity needed and any special packaging or labeling requests to facilitate smooth processing of the inquiry.
• Prepare technical questions regarding integration with existing ET 200SP systems to ensure seamless application context and operation.
• Submit the inquiry form with complete details to initiate the review process with the appropriate Siemens contact personnel.

• All technical data provided is sourced directly from documented Siemens documentation and product specifications for accuracy verification.
• Users are advised to cross-reference these details with their specific project requirements before proceeding with any inquiry preparation steps.
• For any discrepancies or additional technical clarifications, please refer to the documented Siemens product database or contact support.
• This inquiry page serves as a starting point for gathering information and initiating communication regarding the 6AG1135-6GB00-7BA1 unit.
