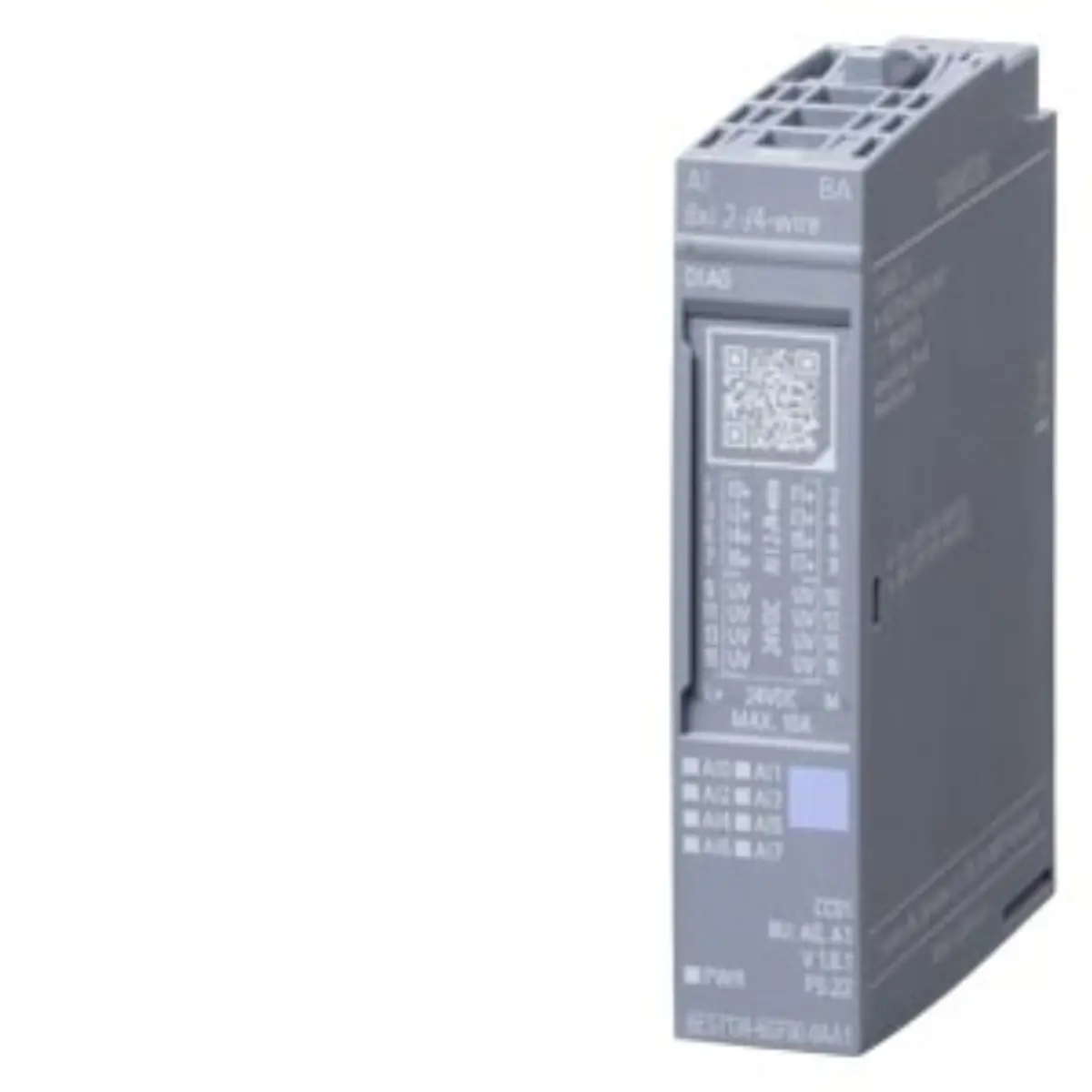

6AG1134-6GF00-7AA1 Analog Input Module Details

Part number

6AG1134-6GF00-7AA1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 7.00 x 2.00 cm

Net weight

0.039 Kg

Source category

SIPLUS analog inputs

• This module is classified as an active product in the current Siemens portfolio. Keep dimensions 7.7 x 7.00 x 2.00 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• It functions as an analog input device with eight individual input channels.
• The hardware supports both two-wire and four-wire connection configurations for sensors.
• Signal resolution is recorded at sixteen bits for precise measurement accuracy.
• Module diagnostics are integrated to assist in monitoring operational status effectively.
• The base technology derives from the 6ES7134-6GF00-0AA1 model specification.

• The specific part number 6AG1134-6GF00-7AA1 identifies this unique SIPLUS variant. Use the source path Automation technology / ET 200SP / SIPLUS I/O modules / SIPLUS analog inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Color code CC01 is assigned to this particular module configuration for identification.
• The module belongs to the analog inputs sub-category of SIPLUS products.
• It is categorized under the broader ET 200SP distributed I/O system.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 7.7 cm in width by 7.00 cm in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1134-6GF00-7AA1 record before publication.
• The height of the module unit is recorded as 2.00 centimeters for mounting.
• Net weight is specified at 0.039 kilograms for logistics and handling calculations.
• Operating temperature range extends from minus forty to plus seventy degrees Celsius.
• Conformal coating is applied to ensure durability in harsh industrial environments.

• Visual inspection should confirm the presence of conformal coating on the PCB. Review Siemens 6AG1134-6GF00-7AA1 as I/O Modules with source category SIPLUS analog inputs, recorded lifecycle Active Product, and submitted model identity.
• Check that the label displays the full part number 6AG1134-6GF00-7AA1 clearly.
• Verify the color code CC01 marking on the module housing for identification.
• Ensure the connector pins are intact and free from visible physical damage.

• Review the submitted model against your project technical requirements and specifications. Keep dimensions 7.7 x 7.00 x 2.00 cm and net weight 0.039 Kg unchanged while comparing project documents and product image evidence.
• Confirm the need for extended temperature operation within the specified range limits.
• Check if the eight-channel analog input configuration matches your sensor layout.
• Prepare detailed application notes regarding environmental conditions for the source review.

• Product class B indicates review restrictions per manufacturer guidelines and policies.
• Contact the designated Siemens review contacts for specific review or support inquiries.
• All technical data is sourced directly from documented manufacturer documentation records.
• Verify all parameters through documented channels before finalizing project integration plans.
