6AG1132-6BF01-7BA0 SIPLUS ET 200SP DQ 8x24VDC/0 Digital Output Module

Part number

6AG1132-6BF01-7BA0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP DQ 8x24VDC/0

Lifecycle

Active Product

Dimensions

7.8 x 6.5 x 2.3 cm

Net weight

0.036 Kg

Source category

SIPLUS digital outputs

• The module provides eight digital output channels rated for 24VDC supply voltage levels. Keep dimensions 7.8 x 6.5 x 2.3 cm and net weight 0.036 Kg unchanged while comparing project documents and product image evidence.
• Each channel supports a maximum current load of 0.5 Amperes for standard switching applications.
• Conformal coating is applied to protect internal circuitry from environmental contaminants and humidity.
• Operational temperature range extends from -40°C to +70°C for extreme condition usage.
• Channel diagnostics are integrated to monitor output status and detect potential faults.
• The physical dimensions measure approximately 7.8 x 6.5 x 2.3 centimeters for compact mounting.

• The part number 6AG1132-6BF01-7BA0 identifies this specific variant within the SIPLUS portfolio. Use the source path Automation technology / ET 200SP / SIPLUS I/O modules / SIPLUS digital outputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is classified as a digital output module under the ET 200SP distributed I/O system.
• The product lifecycle status is recorded as Active Product indicating ongoing manufacturing support.
• Color code CC02 is associated with this model for visual identification in assemblies.

Parameters are factual source fields retained for model review.

• Source parameter review indicates the base design originates from the 6ES7132-6BF01-0BA0 reference. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1132-6BF01-7BA0 record before publication.
• The net weight of the unit is listed as 0.036 Kg for logistics planning.
• Voltage specification confirms 24VDC operation listed for standard PLC output interfaces.
• Environmental rating highlights the extended temperature range as a key differentiator feature.
• Protection level is enhanced through the application of conformal coating on PCBs.

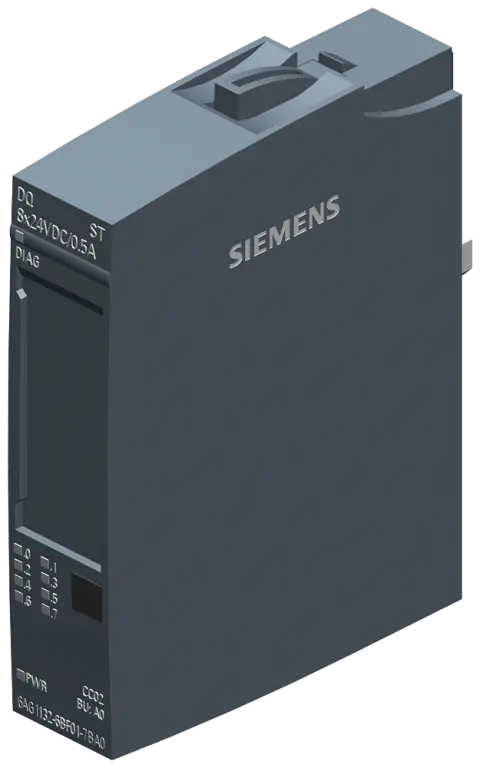

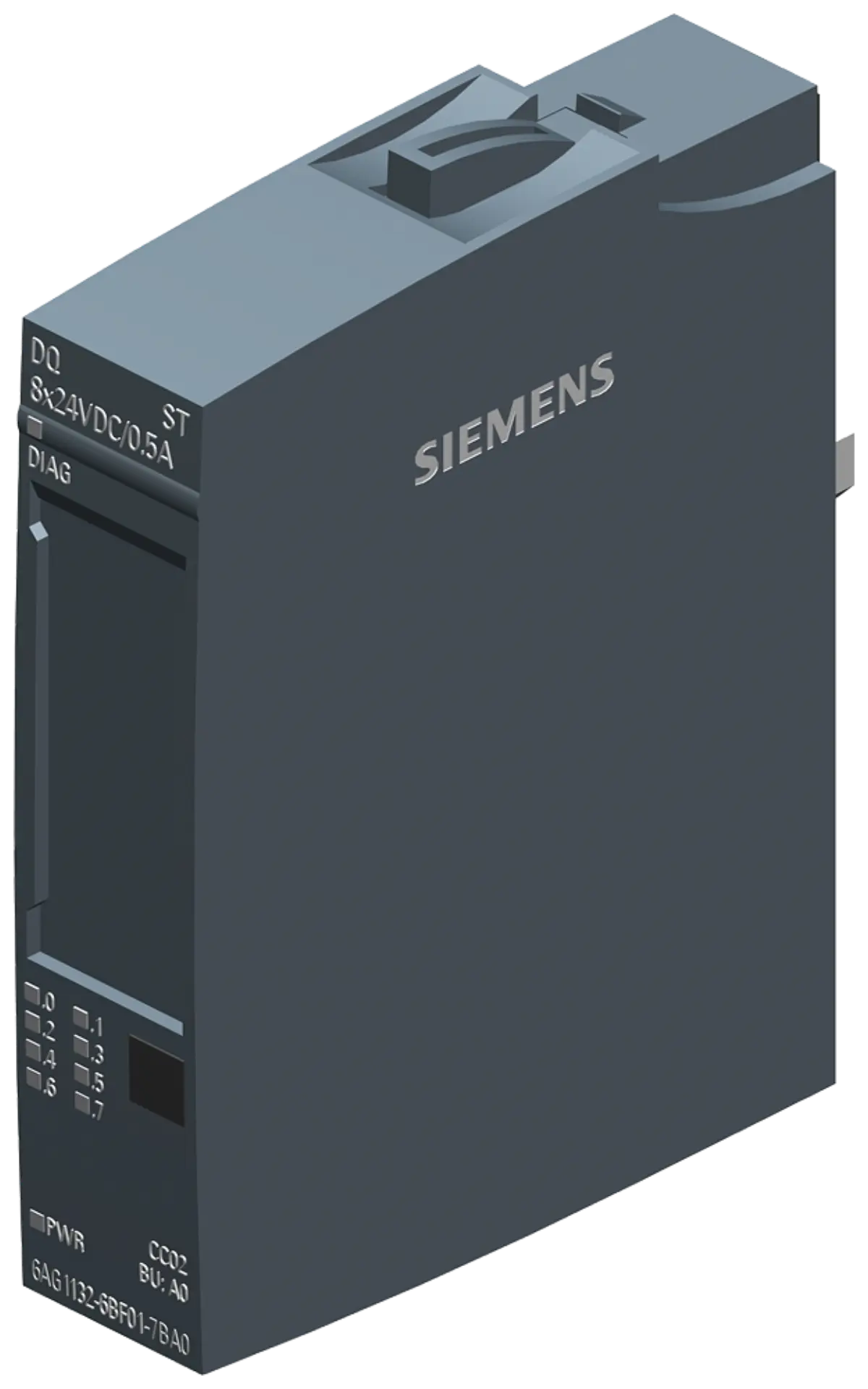

• Product images typically display the front label with the full Siemens part number. Review Siemens 6AG1132-6BF01-7BA0 as SIPLUS ET 200SP DQ 8x24VDC/0 with source category SIPLUS digital outputs, recorded lifecycle Active Product, and submitted model identity.
• Visual inspection should confirm the presence of channel indicator LEDs for diagnostics.
• The housing color and form factor align with standard ET 200SP module designs.
• Connector pins are visible on the rear edge for backplane bus interface connection.

• Verify the required number of digital output channels for your specific control application.
• Confirm the ambient temperature conditions to ensure the -40 to +70 range suffices.
• Check if conformal coating meets your facility's corrosion resistance requirements.
• Review project documentation to ensure the 24VDC voltage level matches your system.

• Ensure all technical specifications match the operational demands of the target installation site.
• Cross-reference the part number with documented Siemens documentation for complete feature lists.
• Consider the physical space constraints given the compact dimensions of the module.
• Validate the lifecycle status to confirm long-term review details for future maintenance needs.
