6AG1131-6FD01-7BB1 SIPLUS ET 200SP DI 4x120 Digital Input Module

Part number

6AG1131-6FD01-7BB1

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP DI 4x120

Lifecycle

Active Product

Dimensions

7.5 x 6.8 x 3.00 cm

Net weight

0.049 Kg

Source category

SIPLUS digital inputs

• Input type: Digital input module with four channels for 230 V AC signal processing. Keep dimensions 7.5 x 6.8 x 3.00 cm and net weight 0.049 Kg unchanged while comparing project documents and product image evidence.
• Operating voltage: Designed for 230 V AC ST based electrical systems and control circuits.
• Temperature range: Operational capability recorded from -40 °C up to +70 °C for extreme environments.
• Protection level: Features conformal coating to safeguard internal components against moisture and corrosive agents.
• Diagnostics: Equipped with module diagnostics to monitor status and identify potential operational anomalies.
• Color code: Identified by color code CC41 for visual classification within the ET 200SP lineup.

• Base model reference: Derived from 6ES7131-6FD01-0BB1 with added environmental protection enhancements.
• Series designation: Part of the SIPLUS ET 200SP family for distributed I/O applications.
• Product class: Classified as B, indicating specific handling procedures and contact requirements.
• Lifecycle status: Listed as an Active Product, confirming current manufacturing and support review details.

Parameters are factual source fields retained for model review.

• Physical dimensions: Recorded measurements are 7.5 cm in length, 6.8 cm in width, and 3.00 cm in height.
• Net weight: The unit weighs approximately 0.049 Kg, facilitating easy integration into rack systems.
• Channel count: Supports four distinct digital input channels for simultaneous signal monitoring tasks.
• Signal type: Specifically configured for 230 V AC ST signals, aligning with standard industrial power supplies.
• Coating specification: Conformal coating application ensures durability against dust, humidity, and chemical exposure.

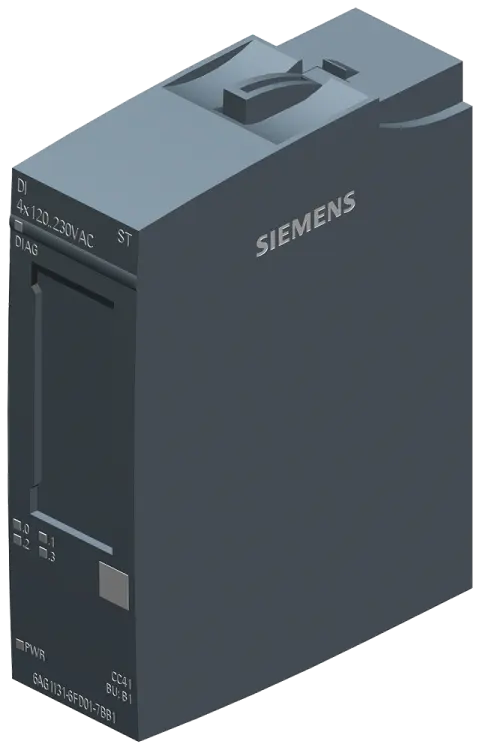

• Visual identification: Image displays the front label with the full part number 6AG1131-6FD01-7BB1.
• Form factor: Shows the compact modular design typical of the ET 200SP series hardware.
• Connection points: Highlights the terminal blocks used for wiring the four digital input channels.
• Status indicators: Depicts LED indicators for power supply and channel-specific diagnostic status signals.

• Verify voltage requirements: Confirm that the target system utilizes 230 V AC ST for proper signal matching.
• Check environmental needs: Assess if the operating environment requires the -40 to +70 °C rating.
• Review diagnostic needs: Determine if module diagnostics are necessary for your maintenance and monitoring strategy.
• Confirm physical space: Ensure the installation rack accommodates the 7.5 x 6.8 x 3.00 cm dimensions.

• Source verification: All technical data derived directly from manufacturer specifications and product documentation.
• Part number accuracy: The identifier 6AG1131-6FD01-7BB1 is confirmed correct for this specific SIPLUS variant.
• Classification note: Product class B requires direct contact with designated Siemens review contacts for handling.
• Inquiry guidance: Submit detailed project requirements to facilitate accurate technical assessment and response.
