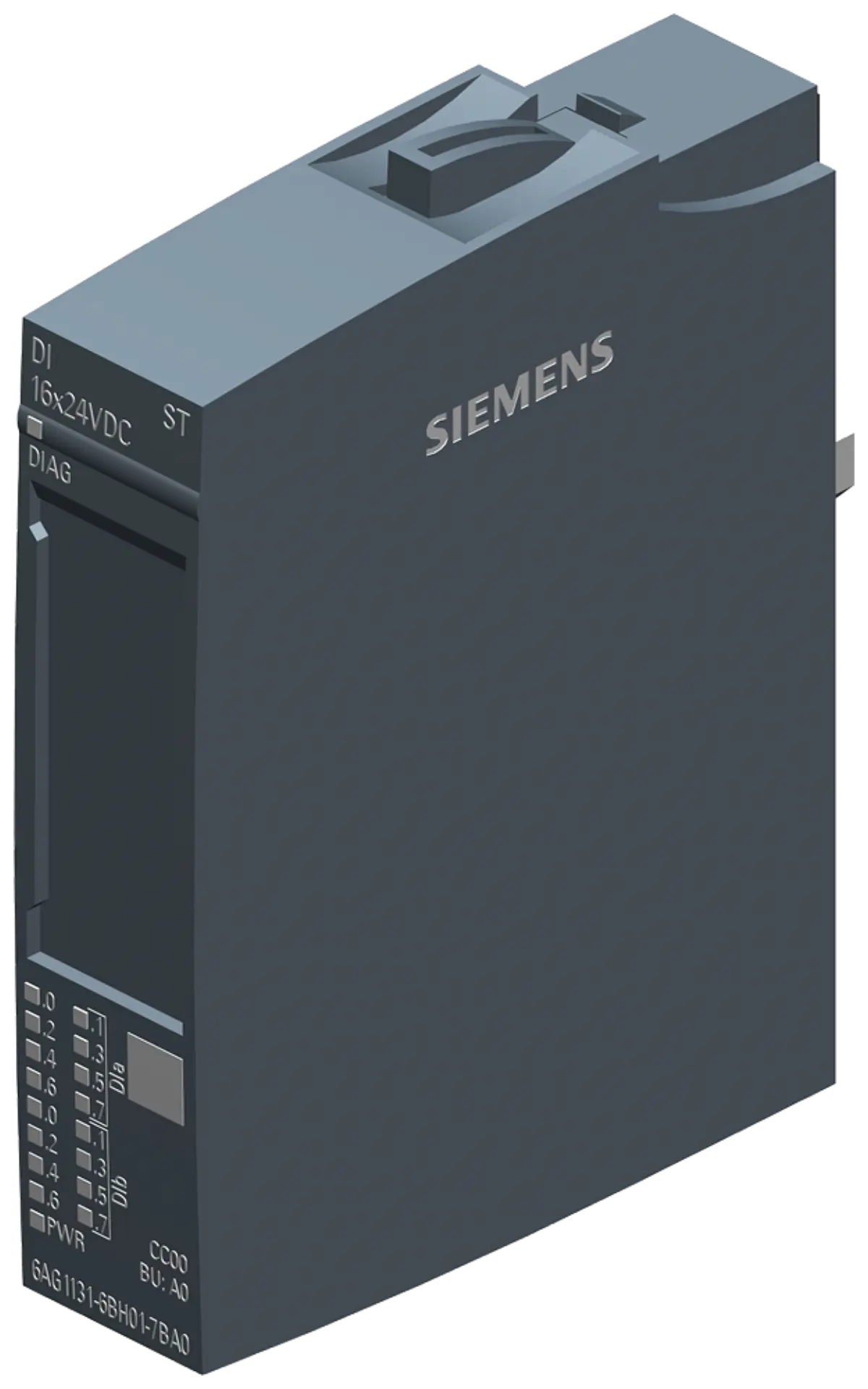

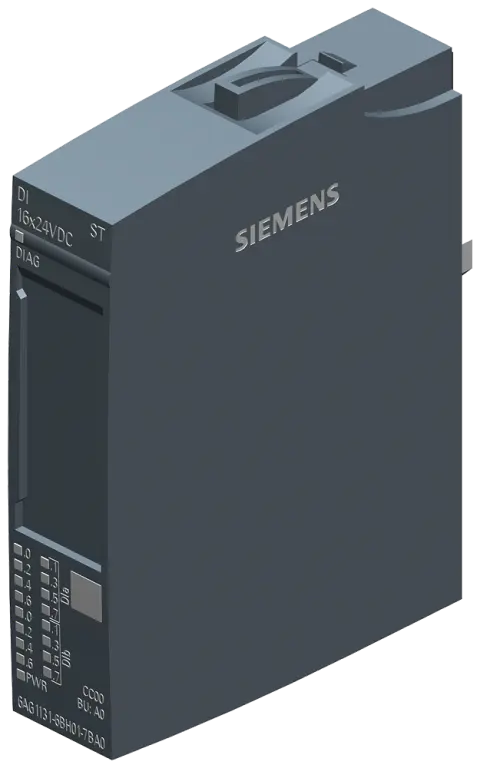

Siemens 6AG1131-6BH01-7BA0 Digital Input Module Details

Part number

6AG1131-6BH01-7BA0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.8 x 6.5 x 2.3 cm

Net weight

0.035 Kg

Source category

SIPLUS digital inputs

• Module type is a digital input with 16 channels operating at 24 V DC. Keep dimensions 7.8 x 6.5 x 2.3 cm and net weight 0.035 Kg unchanged while comparing project documents and product image evidence.
• Operating temperature range extends from -40 °C to +70 °C for extreme conditions.
• Input delay settings include options of 0, 05, and 20 ms for signal filtering.
• Module diagnostics cover wire break detection and supply voltage monitoring for system integrity.
• Physical dimensions are recorded as 7.8 x 6.5 x 2.3 cm for space planning.
• Net weight is listed as 0.035 Kg for logistical handling and mounting considerations.

• Base model reference is 6ES7131-6BH01-0BA0 for standard environment applications without special coatings. Use the source path Automation technology / ET 200SP / SIPLUS I/O modules / SIPLUS digital inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates specialized engineering for use in extended temperature and humidity ranges.
• Color code CC00 is assigned to this specific variant for visual identification purposes.
• Type 3 classification aligns with IEC 61131 standards for digital input module types.

Parameters are factual source fields retained for model review.

• Review the sink input configuration to ensure alignment with your PLC signal sources. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1131-6BH01-7BA0 record before publication.
• Verify the 24 V DC requirement matches your existing power distribution infrastructure.
• Check the -40…+70 °C rating against your installation environment temperature profiles.
• Confirm the 16-channel capacity meets your total digital input point requirements.
• Assess the module diagnostics features for your specific maintenance and monitoring protocols.

• Inspect the physical labeling for the exact part number 6AG1131-6BH01-7BA0. Review Siemens 6AG1131-6BH01-7BA0 as I/O Modules with source category SIPLUS digital inputs, recorded lifecycle Active Product, and submitted model identity.
• Note the conformal coating appearance which distinguishes it from standard ET 200SP units.
• Observe the connector layout for proper wiring and signal connection planning.
• Check the overall form factor against your rack or rail mounting specifications.

• Prepare your project documentation specifying the required quantity and delivery location details. Keep dimensions 7.8 x 6.5 x 2.3 cm and net weight 0.035 Kg unchanged while comparing project documents and product image evidence.
• List any specific technical questions regarding the input delay or diagnostic functions.
• Include your current system architecture details to assist in the review process.
• Provide contact information for follow-up discussions regarding technical specifications and needs.

• Ensure all technical parameters match your specific application requirements before submission.
• Cross-reference the lifecycle status as Active Product for long-term planning purposes.
• Verify that the SIPLUS specifications meet your environmental protection needs effectively.
• Submit the inquiry with complete details to facilitate a thorough technical review.
