Siemens 6AG1124-0XC02-4AX1 Industrial Automation Component

Part number

6AG1124-0XC02-4AX1

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Phase Out Announce

Dimensions

66.5 x 52.00 x 22.00 cm

Net weight

9.28 Kg

Source category

SIPLUS Comfort Panels Standard

• Display type is a 22-inch widescreen TFT screen offering high resolution and 16 million color depth for clear visualization.
• Touch operation capability allows direct interaction with the interface, supporting efficient control and monitoring tasks in automated settings.
• Communication interfaces include PROFINET for Ethernet-based networking alongside MPI and PROFIBUS DP for legacy or specific fieldbus connections.
• Configuration memory capacity stands at 24 MB, providing sufficient space for complex project data and application logic storage.
• Operating system foundation utilizes Windows Embedded Compact 2013, ensuring stable performance for industrial human-machine interface applications.
• Software application context begins with WinCC Comfort V14 SP1, allowing for detailed configuration and customization of the panel functions.

• Base hardware originates from the 6AV2124-0XC02-0AX1 model, adapted specifically for extended environmental conditions and robustness.
• Temperature range specification covers 0 to +45 degrees Celsius, defining the operational limits for reliable system performance.
• Lifecycle status is recorded as Phase Out Announce, indicating a transition period for this specific product generation.
• Product class designation B suggests review restrictions apply, requiring direct contact with designated Siemens representatives for handling.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 66.5 by 52.00 by 22.00 centimeters, defining the spatial footprint for installation planning.
• Net weight is recorded at 9.28 kilograms, a factor to consider when evaluating mounting structures and support requirements.
• Category classification places this unit firmly within the HMI Panels segment, focusing on operator interface and control functions.
• Source categorization traces back through Automation technology to SIPLUS Comfort Panels Standard, highlighting its specialized industrial lineage.
• Interface protocols support both modern PROFINET standards and traditional MPI/PROFIBUS DP, ensuring versatile connectivity options for integration.

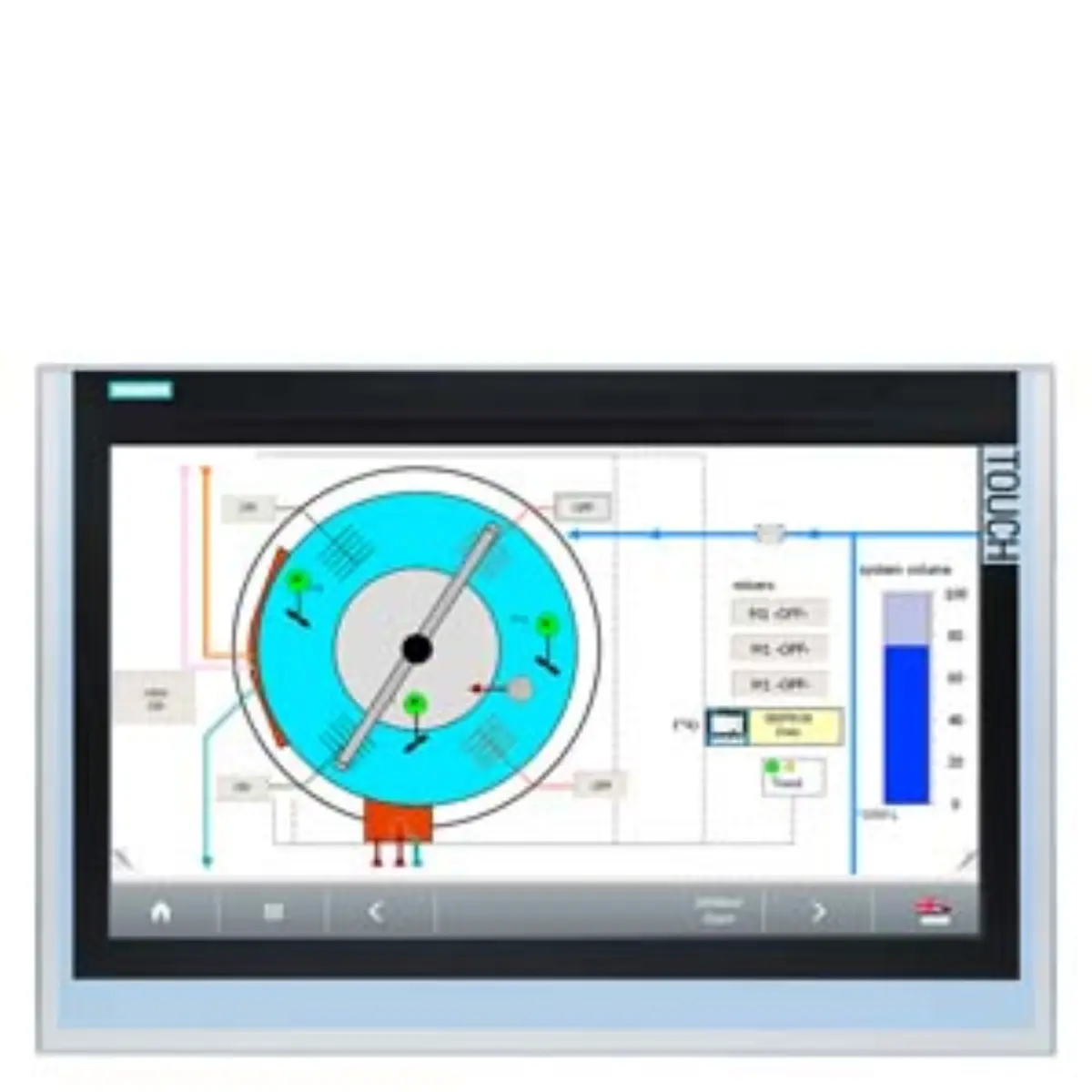

• Visual documentation should highlight the 22-inch widescreen format, emphasizing the large display area for detailed process information.
• Conformal coating details may be visible on internal components if disassembled, showcasing the protective measures against environmental stress.
• Connector ports for PROFINET, MPI, and PROFIBUS DP should be clearly identifiable to verify communication capabilities accurately.
• Overall chassis design reflects the robust construction necessary for industrial environments, with attention to mounting and structural integrity.

• Review the submitted model number 6AG1124-0XC02-4AX1 to ensure alignment with current project technical specifications and requirements.
• Verify that the operating temperature range of 0 to +45 degrees Celsius meets the environmental conditions of the site.
• Confirm software version application context with WinCC Comfort V14 SP1 or later to ensure proper configuration and functionality.
• Note the Phase Out Announce status and Product Class B restrictions when preparing documentation for internal approval processes.

• Ensure all dimensional constraints fit within the planned installation space, considering the 66.5 cm width and 52 cm height.
• Account for the 9.28 kg weight when selecting mounting hardware to support the panel securely during operation.
• Check that the required communication protocols match the existing network infrastructure, particularly regarding PROFINET and PROFIBUS DP.
• Document the lifecycle status for future maintenance planning, as Phase Out Announce may impact long-term supply considerations.
