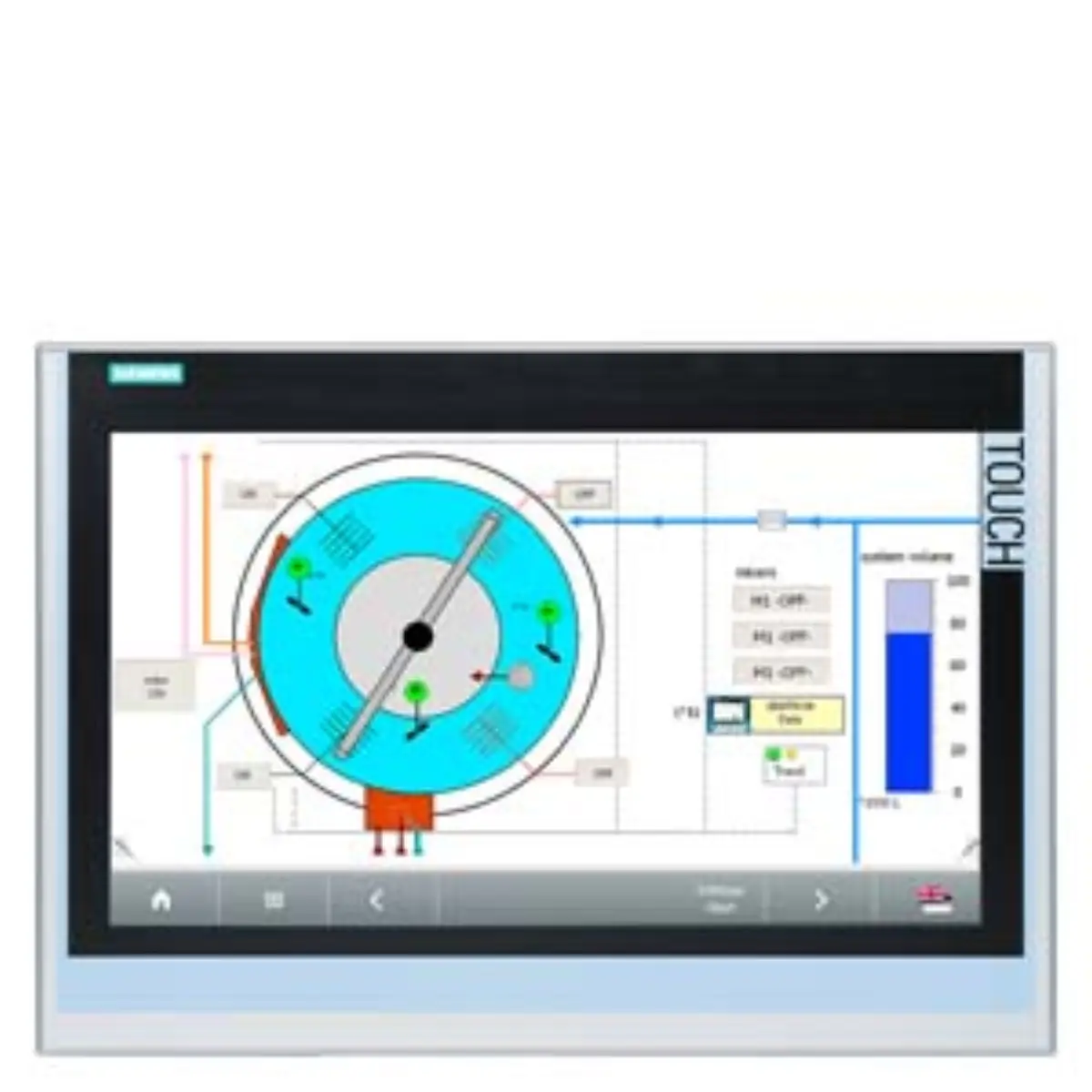

Siemens 6AG1124-0UC02-4AX1 Industrial Automation Component

Part number

6AG1124-0UC02-4AX1

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Phase Out Announce

Dimensions

60.00 x 45.00 x 17.00 cm

Net weight

6.726 Kg

Source category

SIPLUS Comfort Panels Standard

• Display specifications include a 19-inch widescreen TFT panel supporting 16 million color depths for detailed graphics rendering. Keep dimensions 60.00 x 45.00 x 17.00 cm and net weight 6.726 Kg unchanged while comparing project documents and product image evidence.
• Connectivity options feature both PROFINET interfaces and legacy MPI/PROFIBUS DP connections for flexible network integration.
• Internal storage capacity provides 24 MB of configuration memory to support complex application data and project files.
• Operating system foundation utilizes Windows Embedded Compact 2013 to ensure stable and reliable runtime performance.
• Software application context requires WinCC Comfort V14 SP1 or later versions for full configuration and development access.
• Environmental rating supports continuous operation within a temperature range of 0 to +45 degrees Celsius.

• Base model derivation traces back to the standard 6AV2124-0UC02-0AX1 platform with added protective modifications. Use the source path Automation technology / SIPLUS Comfort Panels / SIPLUS Comfort Panels Standard to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates specific engineering enhancements for industrial applications requiring higher resistance to environmental stressors.
• TP1900 Comfort classification identifies the specific form factor and screen size within the broader product portfolio.
• Conformal coating application serves as the primary differentiator for this variant compared to standard comfort panels.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded at 60.00 cm width by 45.00 cm height with a depth of 17.00 cm.
• Net weight specification stands at 6.726 kg, which is relevant for mounting structure load calculations.
• Lifecycle status is currently listed as Phase Out Announce, indicating potential future supply chain adjustments.
• Product class B designation suggests review restrictions apply, requiring direct contact with designated Siemens representatives.
• Interface protocols must align with existing plant infrastructure to ensure seamless communication and data exchange.

• Visual documentation should highlight the 19-inch display area and its high-resolution color capabilities.
• Mounting bracket configurations must be verified against the physical dimensions provided in the specification sheet.
• Connector placement for PROFINET and PROFIBUS interfaces should be clearly visible for installation planning purposes.
• Labeling and branding elements confirm the SIPLUS identity and specific model number for inventory tracking.

• Verify current software license requirements for WinCC Comfort V14 SP1 before initiating the configuration process.
• Assess environmental conditions to ensure the 0 to +45 degree Celsius range meets operational needs.
• Review network topology to confirm application context with both PROFINET and MPI/PROFIBUS DP interface standards.
• Consult project documentation regarding the Phase Out Announce status for long-term maintenance planning considerations.

• Confirm all dimensional constraints fit within the designated control cabinet or panel space allocation.
• Ensure power supply requirements match the internal specifications for safe and stable device operation.
• Validate that the review restricted policy does not conflict with project maintenance and support strategies.
• Cross-reference the part number with documented Siemens databases to verify all technical parameter accuracy.
