6AG1124-0QC02-4AX1 SIPLUS HMI TP1500 Comfort Panel Inquiry

Part number

6AG1124-0QC02-4AX1

Brand

Siemens

Category

HMI Panels

Product type

SIPLUS HMI TP1500 Comfort based on 6AV2124-0QC02-0AX1 with conformal coating, 0

Lifecycle

Phase Out Announce

Dimensions

60.00 x 44.5 x 17.4 cm

Net weight

5.596 Kg

Source category

SIPLUS Comfort Panels Standard

• Display technology includes a 15-inch widescreen TFT screen supporting 16 million colors for clear visualization. Keep dimensions 60.00 x 44.5 x 17.4 cm and net weight 5.596 Kg unchanged while comparing project documents and product image evidence.
• Touch operation functionality allows intuitive user interaction with process data and control interfaces directly.
• Communication interfaces feature both PROFINET and MPI/PROFIBUS DP for versatile network integration options.
• Configuration memory capacity is recorded at 24 MB to support complex application data storage needs.
• Operating system environment utilizes Windows Embedded Compact 2013 for stable and efficient runtime performance.
• Software application context begins with WinCC Comfort V14 SP1 when utilizing specific hardware support packages.

• Base model reference indicates derivation from the standard 6AV2124-0QC02-0AX1 Comfort Panel architecture. Use the source path Automation technology / SIPLUS Comfort Panels / SIPLUS Comfort Panels Standard to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation confirms the inclusion of extended environmental ratings beyond standard industrial specifications.
• Conformal coating specification denotes additional protection layers applied to internal circuit board components.
• Temperature range classification supports continuous operation within ambient conditions from zero to fifty degrees Celsius.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as sixty centimeters in width by forty-four point five centimeters in depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1124-0QC02-4AX1 record before publication.
• Unit height measurement stands at seventeen point four centimeters for standard mounting rack integration purposes.
• Net weight specification lists five point five nine six kilograms for logistics and handling calculations.
• Lifecycle status is currently noted as Phase Out Announce requiring careful project timeline consideration.
• Product class designation B indicates review restrictions necessitating direct contact with documented Siemens representatives.

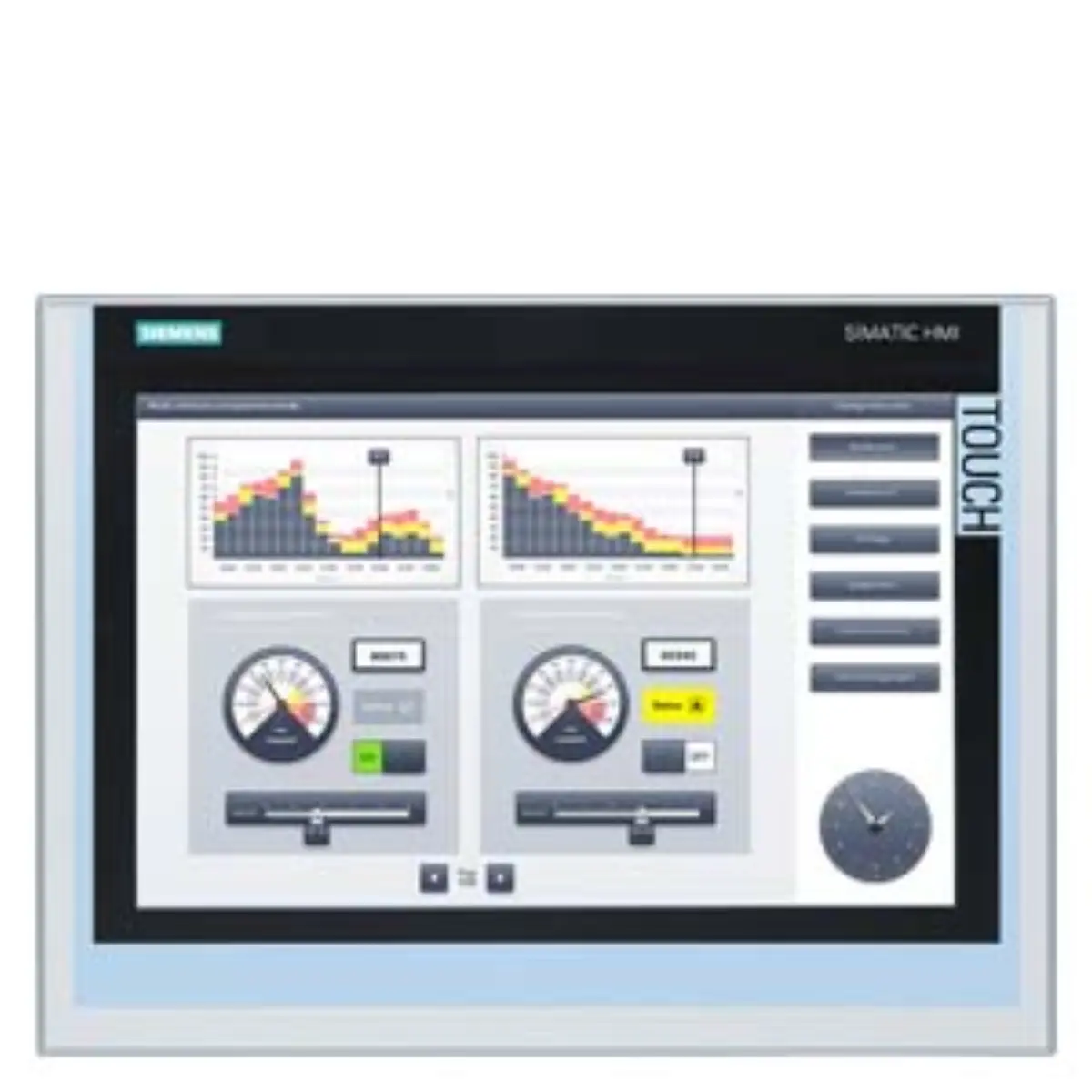

• Visual inspection should confirm the presence of the 15-inch widescreen display area on the front panel.
• Check for the SIPLUS branding label which distinguishes this unit from standard Comfort Panel models.
• Verify the physical condition of the touch surface for any signs of damage or wear.
• Ensure all port covers and interface connections appear intact and free from corrosion or debris.

• Gather current project requirements including specific temperature ranges and environmental exposure levels for assessment.
• Prepare detailed network topology documents showing required PROFINET and PROFIBUS DP integration points clearly.
• Compile existing software version information to verify application context with WinCC Comfort V14 SP1 updates.
• Document any special mounting constraints or dimensional tolerances that may affect installation planning processes.

• Confirm all technical parameters match the specific operational needs of the intended industrial application.
• Review the lifecycle status carefully to ensure long-term project viability and support review details.
• Verify review note restrictions associated with Product Class B before finalizing any acquisition plans.
• Cross-reference dimension and weight data with facility infrastructure capabilities for proper installation planning.
