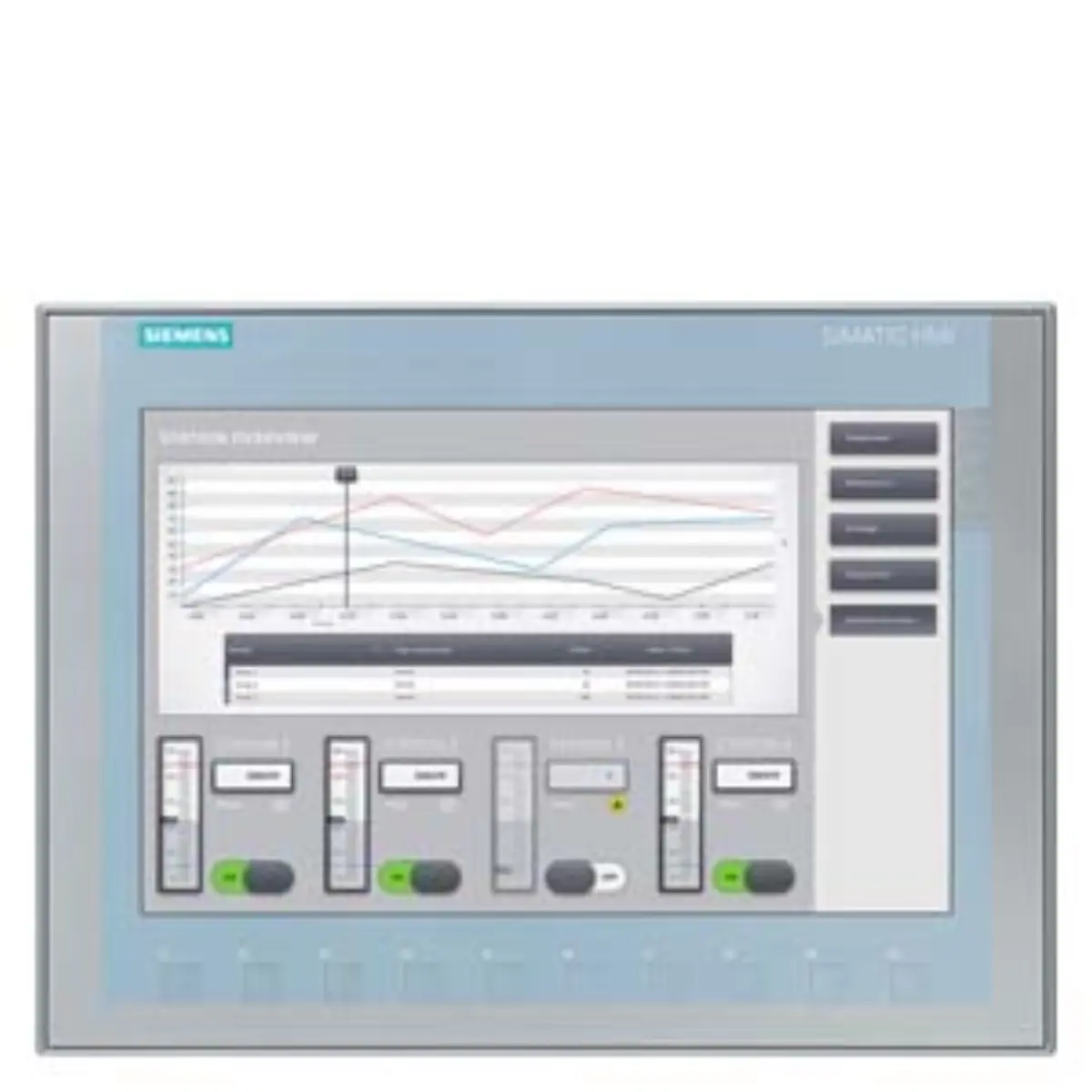

Siemens 6AG1123-2MB03-2AX0 Industrial Automation Component

Part number

6AG1123-2MB03-2AX0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

40.00 x 29.9 x 9.1 cm

Net weight

2.162 Kg

Source category

SIPLUS Basic Panels (2nd Generation)

• The device utilizes a 12-inch TFT display capable of rendering 65536 colors. This visual output supports detailed graphical representation for complex industrial monitoring tasks.
• A PROFINET interface enables high-speed communication within automated network structures. This connectivity allows seamless integration with broader control systems and data acquisition networks.
• Operational temperature range is specified between minus ten and plus fifty degrees Celsius. This rating ensures functionality in varied environmental conditions without performance degradation.
• Configuration requires WinCC Basic version thirteen or STEP 7 Basic version thirteen software. These engineering tools facilitate the setup and programming of the panel interface.
• Physical dimensions are recorded at forty centimeters by twenty-nine point nine centimeters. The depth measures nine point one centimeters for standard mounting applications.
• Net weight is listed as two point one six two kilograms for shipping calculations. This mass reflects the internal components and protective housing structure.

• The base model derives from the 6AV2123-2MB03-0AX0 KTP1200 Basic configuration. This lineage provides a known foundation for technical reference and comparison.
• SIPLUS designation indicates enhanced environmental protection through conformal coating application. This coating protects internal electronics against moisture, dust, and corrosive agents.
• Product class B signifies restricted review notes under manufacturer guidelines. Buyers must contact designated Siemens review contacts for specific handling instructions regarding review.
• The part number 6AG1123-2MB03-2AX0 uniquely identifies this specific variant. Accurate recording of this identifier is essential for correct sourcing and verification processes.
