6AG1123-2JB03-2AX0 Industrial HMI Panel Details

Part number

6AG1123-2JB03-2AX0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

33.00 x 23.5 x 6.6 cm

Net weight

1.13 Kg

Source category

SIPLUS Basic Panels (2nd Generation)

• The unit features a 9-inch TFT display capable of rendering 65536 distinct colors for clear visual data presentation. Keep dimensions 33.00 x 23.5 x 6.6 cm and net weight 1.13 Kg unchanged while comparing project documents and product image evidence.
• PROFINET interface connectivity enables efficient communication within modern industrial network infrastructures and automated production lines.
• Conformal coating application provides enhanced protection against moisture, dust, and corrosive agents common in challenging factory settings.
• Extended operating temperature range spans from -20°C to +50°C, ensuring reliable performance across diverse climatic conditions.
• Physical dimensions measure approximately 33.00 x 23.5 x 6.6 cm, allowing for standard mounting configurations in control cabinets.
• Net weight is recorded at 1.13 Kg, contributing to manageable handling during installation and maintenance procedures.

• The part number 6AG1123-2JB03-2AX0 identifies this specific configuration within the Siemens product portfolio for traceability purposes. Use the source path SIPLUS operator control and monitoring devices / SIPLUS Basic Panels (2nd Generation) to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is classified under the SIPLUS Basic Panels (2nd Generation) category for systematic product organization.
• Lifecycle status is listed as Active Product, indicating current manufacturing support and ongoing technical documentation review details.
• Product class designation includes review restrictions requiring direct contact with designated Siemens review contacts for handling inquiries.

Parameters are factual source fields retained for model review.

• Display resolution and color depth parameters are optimized for high-contrast visibility in various lighting conditions.
• Network interface specifications align with standard PROFINET protocols for seamless integration into existing automation architectures.
• Environmental ratings reflect the protective measures taken to withstand extreme temperatures and physical contaminants.
• Mechanical specifications ensure application context with standard DIN rail or panel mounting solutions used in industrial applications.

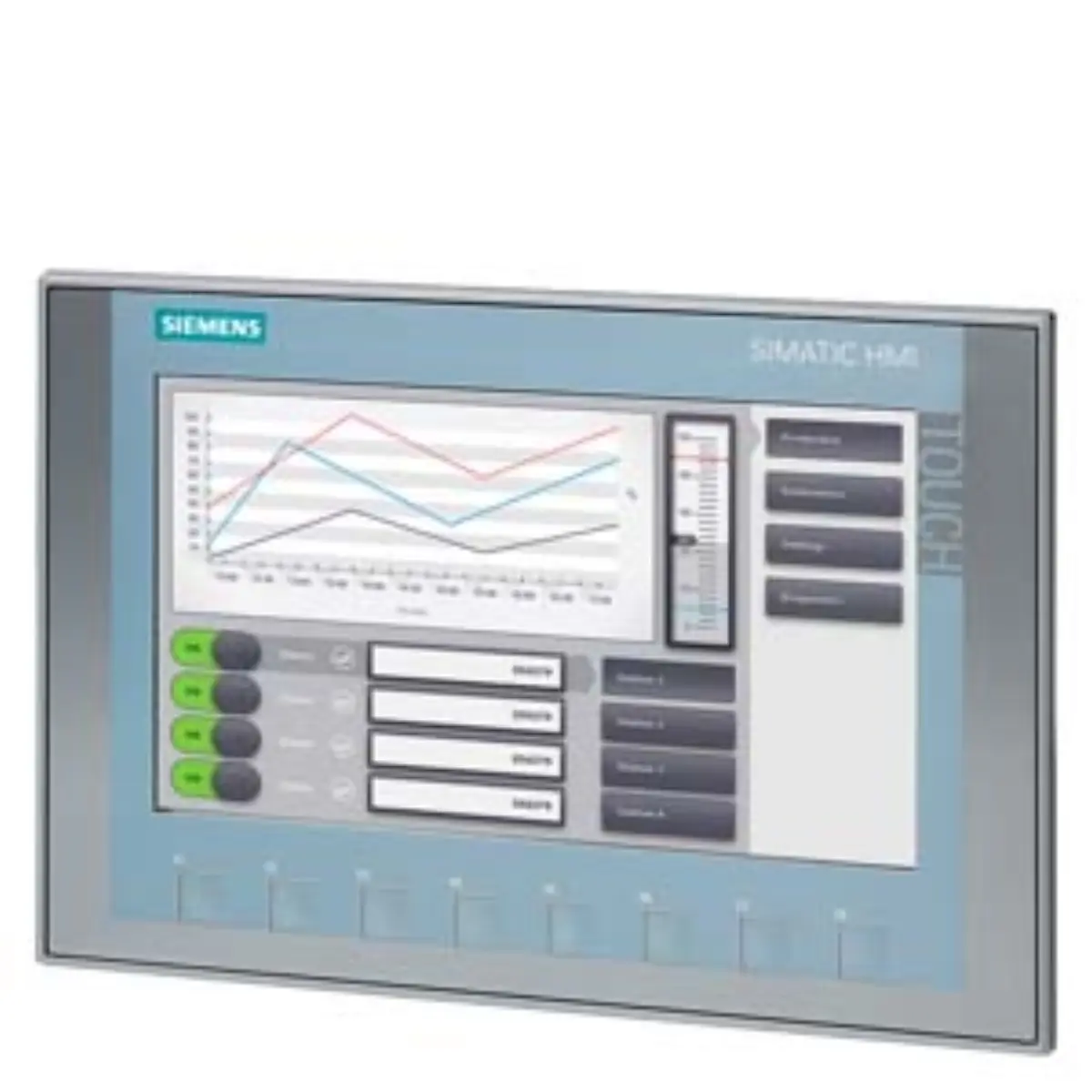

• Visual representations typically highlight the front panel interface and the 9-inch screen area prominently.
