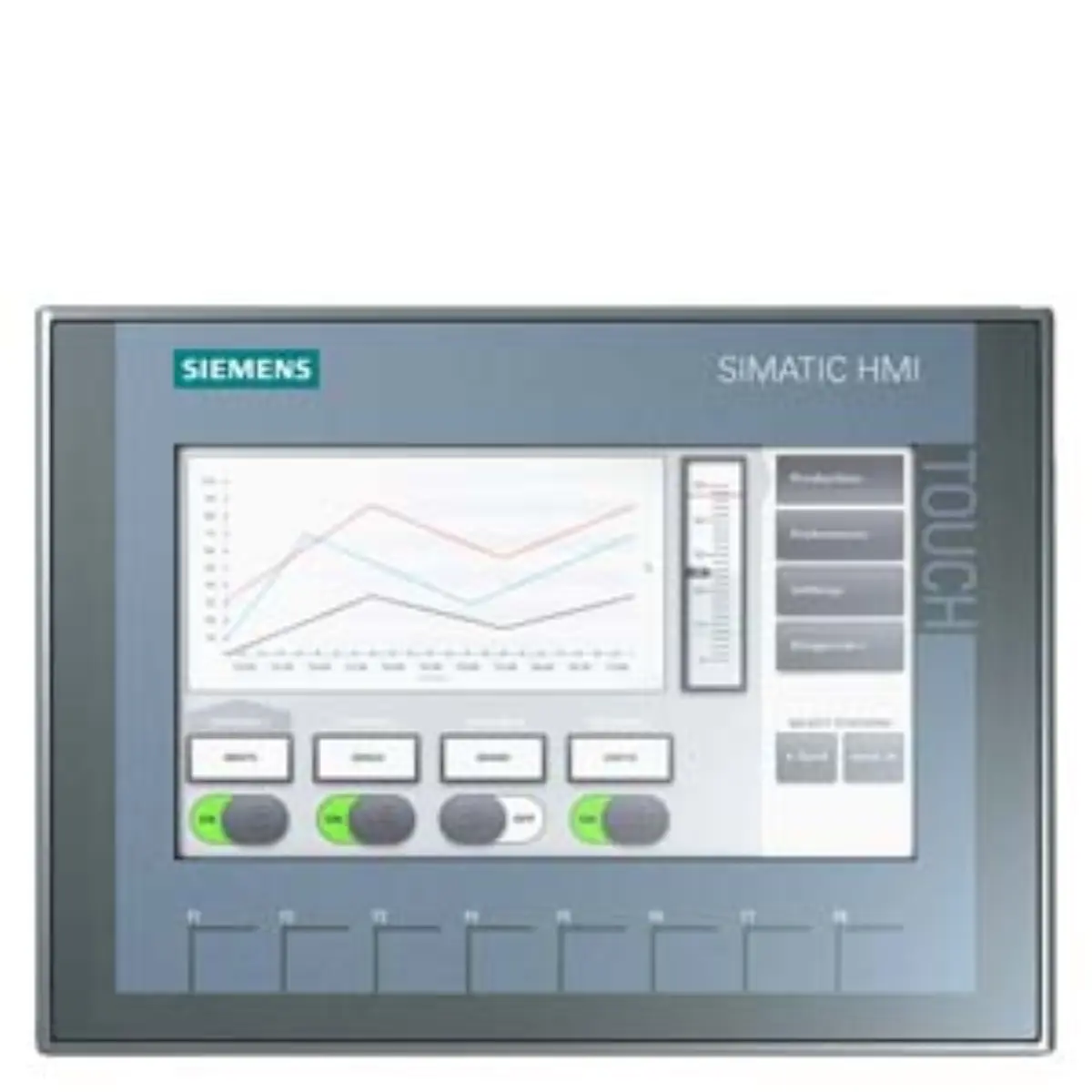

6AG1123-2GA03-2AX0 Siemens SIPLUS HMI Panel Details

Part number

6AG1123-2GA03-2AX0

Brand

Siemens

Category

HMI Panels

Product type

HMI Panels

Lifecycle

Active Product

Dimensions

26.1 x 18.9 x 6.3 cm

Net weight

0.8 Kg

Source category

SIPLUS Basic Panels (2nd Generation)

• Display technology utilizes a 7-inch TFT screen capable of rendering 65536 distinct colors for high-contrast visual feedback.
• Input mechanisms combine configurable key operations with touch functionality to allow flexible user interaction during process monitoring.
• Communication protocols include a PROFIBUS interface, enabling integration into existing industrial automation networks for data exchange.
• Environmental resilience is enhanced through conformal coating, allowing operation within temperature ranges from -20 to +50 degrees Celsius.
• Software configuration requires WinCC Basic V13 or STEP 7 Basic V13 to properly set up and manage the panel parameters.
• Physical construction includes open source software components provided free of charge via an enclosed CD-ROM for reference.

• The part number 6AG1123-2GA03-2AX0 identifies this specific variant within the Siemens SIPLUS operator control family.
• This model is based on the standard KTP700 Basic DP foundation, modified for extended environmental durability.
• The suffix AX0 indicates specific configuration details related to the SIPLUS extension and coating requirements.
• Lifecycle status is recorded as an Active Product, indicating current manufacturing and support review details for this item.

Parameters are factual source fields retained for model review.

• Overall physical dimensions are recorded as 26.1 cm in width, 18.9 cm in height, and 6.3 cm in depth.
• Net weight of the unit is listed at 0.8 kilograms, facilitating straightforward handling and installation procedures.
• Operating temperature range spans from -20 degrees Celsius up to +50 degrees Celsius for reliable performance.
• Color depth specification confirms support for 65536 colors, ensuring accurate representation of graphical user interfaces.
• Interface type is defined as PROFIBUS, which is a standard fieldbus protocol used in industrial automation systems.

• Visual documentation should highlight the front panel layout, including the 7-inch display area and control keys.
• Side views may illustrate the depth profile and mounting provisions consistent with the 6.3 cm dimension noted.
• Labeling on the rear or side should clearly show the full part number for accurate identification purposes.
• Any included accessories, such as the CD-ROM mentioned in specifications, should be depicted if recorded for review.

• Review the submitted model number 6AG1123-2GA03-2AX0 to ensure it matches your specific project requirements accurately.
• Verify that the PROFIBUS interface aligns with your existing network infrastructure and communication protocol standards.
• Confirm that the operating temperature range of -20 to +50 degrees Celsius suits your installation environment.
• Check software version application context, noting that WinCC Basic V13 or STEP 7 Basic V13 is required for configuration.

• Source parameter review should confirm all technical specifications match the documented Siemens documentation for this part.
• Project document review must verify that the environmental ratings meet the specific site conditions for deployment.
• Technical summary validation ensures that the display size, color depth, and interface types are correctly understood.
• Model identification confirmation helps prevent errors by cross-referencing the part number with the correct SIPLUS series.
