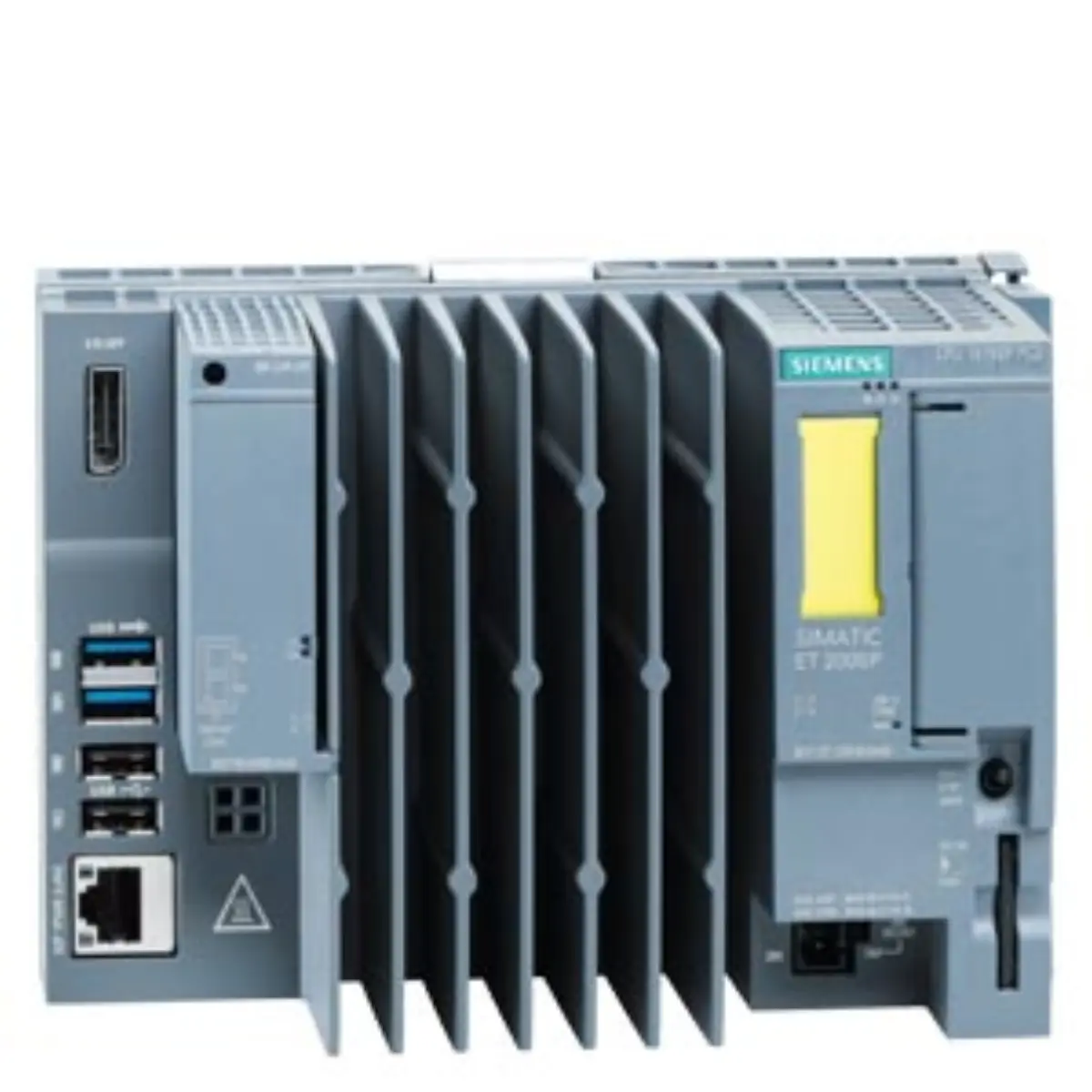

Siemens 6ES7677-2SB43-0GB1 CPU 1515SP PC2 F Inquiry

Part number

6ES7677-2SB43-0GB1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2 F

Lifecycle

Active Product

Dimensions

19.00 x 14.1 x 9.5 cm

Net weight

1.034 Kg

Source category

CPU 1515SP PC2 F

• Physical dimensions are recorded as 19.00 x 14.1 x 9.5 cm for the main housing structure. Keep dimensions 19.00 x 14.1 x 9.5 cm and net weight 1.034 Kg unchanged while comparing project documents and product image evidence.
• The net weight of the device is listed at 1.034 Kg for logistical planning purposes.
• Connectivity includes one 10/100/1000 Mbps Ethernet port for standard network integration requirements.
• Data storage interfaces feature one CFast slot and one SD/MMC slot for media access.
• Peripheral connections consist of two USB 3.0 ports and two USB 2.0 ports for auxiliary devices.
• Visual output is supported via one DisplayPort interface for local monitoring and configuration tasks.

• The part number 6ES7677-2SB43-0GB1 identifies this specific variant of the CPU 1515SP PC2 F. Use the source path Automation technology / Fail-safe CPUs / CPU 1515SP PC2 F to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the broader category of Fail-safe CPUs within the Siemens automation portfolio.
• The lifecycle status is currently recorded as Active Product for ongoing project considerations.
• Documentation files are stored on the CFast card, including restore images for SIOS.

Parameters are factual source fields retained for model review.

• Review the base device specification which references basic device 6ES7677-2DB40-0AA0 for context. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7677-2SB43-0GB1 record before publication.
• Verify the 8 GB RAM allocation matches your application memory requirements precisely.
• Check the 128 GB CFast capacity against your data logging and OS needs.
• Confirm the preinstalled software version aligns with your current S7-1500 F standards.
• Examine the interface list to ensure all necessary physical connections are present.

• Inspect the front panel for the presence of the DisplayPort connector clearly.
• Verify the Ethernet port location and labeling on the communication module section.
• Check the USB port arrangement to distinguish between USB 2.0 and 3.0 types.
• Confirm the CFast and SD/MMC slot positions for media insertion guidance.

• Prepare your project document specifying the required SIMATIC Industrial OS version details.
• List all interface connections needed for your specific ET 200SP BusAdapter setup.
• Define the memory requirements for both RAM and CFast storage capacities clearly.
• Include any special installation constraints related to the physical dimensions and weight.

• Ensure the source parameter review confirms the active product status for longevity.
• Cross-reference the technical summary with your engineering team's interface requirements checklist.
• Validate the model identification notes against your existing system architecture documentation.
• Complete the inquiry preparation steps before submitting your detailed project specifications.
