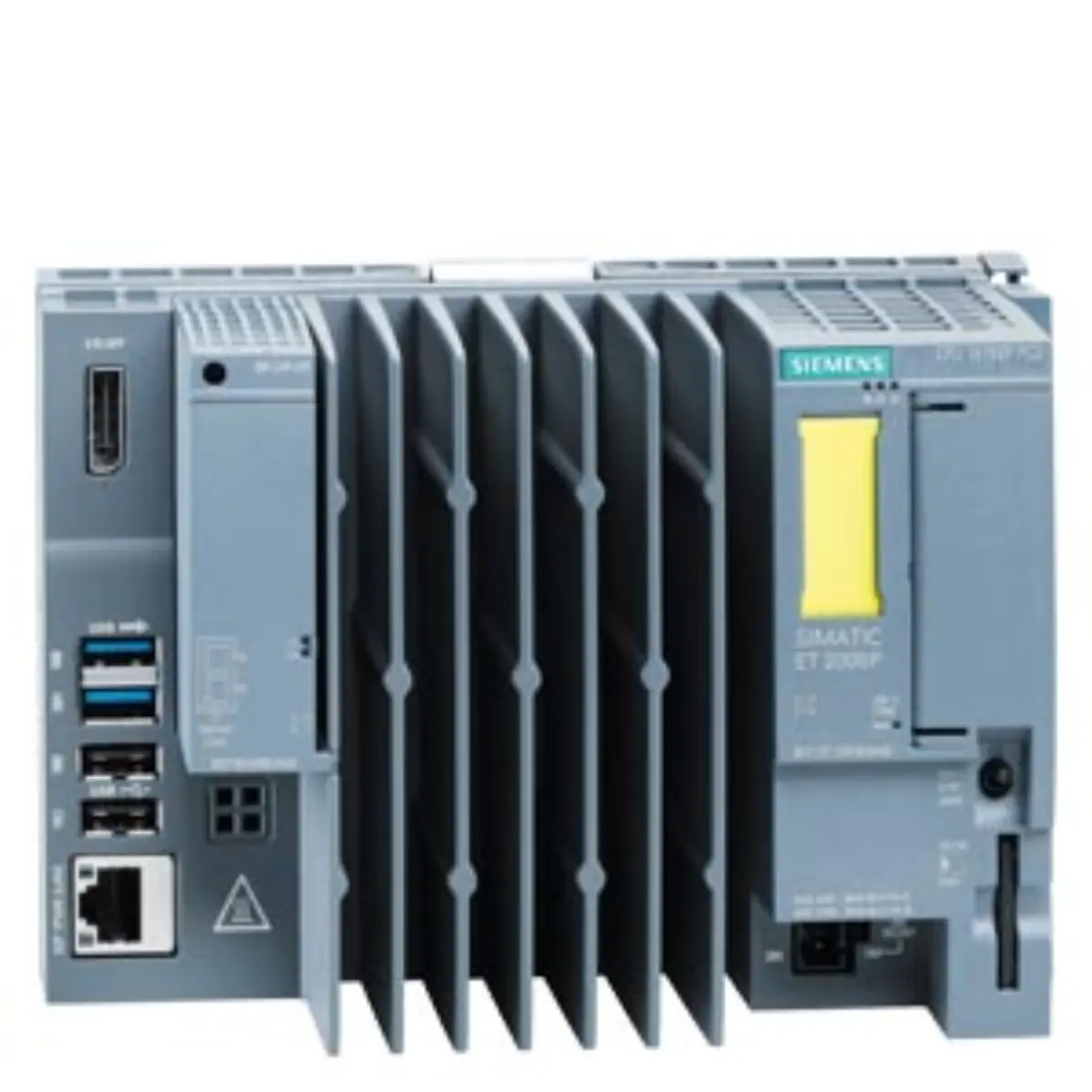

6ES7677-2SB42-0GL0 Siemens SIMATIC ET 200SP Open Controller

Part number

6ES7677-2SB42-0GL0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2 F

Lifecycle

Active Product

Dimensions

19.00 x 14.1 x 9.5 cm

Net weight

1.041 Kg

Source category

CPU 1515SP PC2 F

• The unit features a basic device configuration with 8 GB of RAM for efficient data processing. Keep dimensions 19.00 x 14.1 x 9.5 cm and net weight 1.041 Kg unchanged while comparing project documents and product image evidence.
• Storage is managed via a 128 GB CFast card running Windows 10 IoT Enterprise LTSC 2019.
• S7-1500 Failsafe Software Controller CPU 1505SP F V2x is preinstalled for safety-critical control logic.
• WinCC Runtime Advanced V17 is included to facilitate visualization and monitoring of automated processes.
• The package includes 512 PowerTags licenses to support extensive tagging requirements within the system.
• Interfaces consist of one CFast slot, one SD/MMC slot, and a PROFINET BusAdapter connection.

• Identify the part number 6ES7677-2SB42-0GL0 as the primary reference for this specific controller variant. Use the source path Automation technology / Fail-safe CPUs / CPU 1515SP PC2 F to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Note the normalized part number 6ES76772SB420GL0 for consistent database indexing and search queries.
• Recognize the brand designation Siemens as the manufacturer of this industrial automation component.
• Classify the product type as CPU 1515SP PC2 F within the broader ET 200SP family.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.00 x 14.1 x 9.5 cm for spatial planning purposes. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7677-2SB42-0GL0 record before publication.
• The net weight is listed as 1.041 Kg, relevant for shipping and mounting calculations.
• Connectivity options include one 10/100/1000 Mbps Ethernet port for network integration and communication.
• USB interfaces comprise two USB 3.0 ports and two USB 2.0 ports for peripherals.
• A DisplayPort is provided for direct visual output connection to monitoring displays or screens.

• Ensure images clearly display the front panel with visible interface ports and labeling.
• Include views showing the CFast and SD/MMC slots for storage media identification.
• Document the side profile to verify physical dimensions against the stated 19.00 cm width.
• Capture the rear connections to highlight the PROFINET BusAdapter interface and Ethernet port.

• Verify the required software licenses match the 512 PowerTags specification for your project scope.
• Confirm that the Windows 10 IoT Enterprise LTSC 2019 version meets your compliance needs.
• Check if the preinstalled S7-1500 Failsafe Software Controller CPU 1505SP F aligns with safety standards.
• Review documentation review details on the CFast card to ensure proper setup and commissioning guides.

• Cross-reference the source category path to ensure correct classification within the product database.
• Validate that all interface counts match the technical summary for accurate inventory records.
• Confirm the lifecycle status as Active Product to determine current relevance for new designs.
• Ensure the short description does not exceed standard limits while retaining key technical facts.
