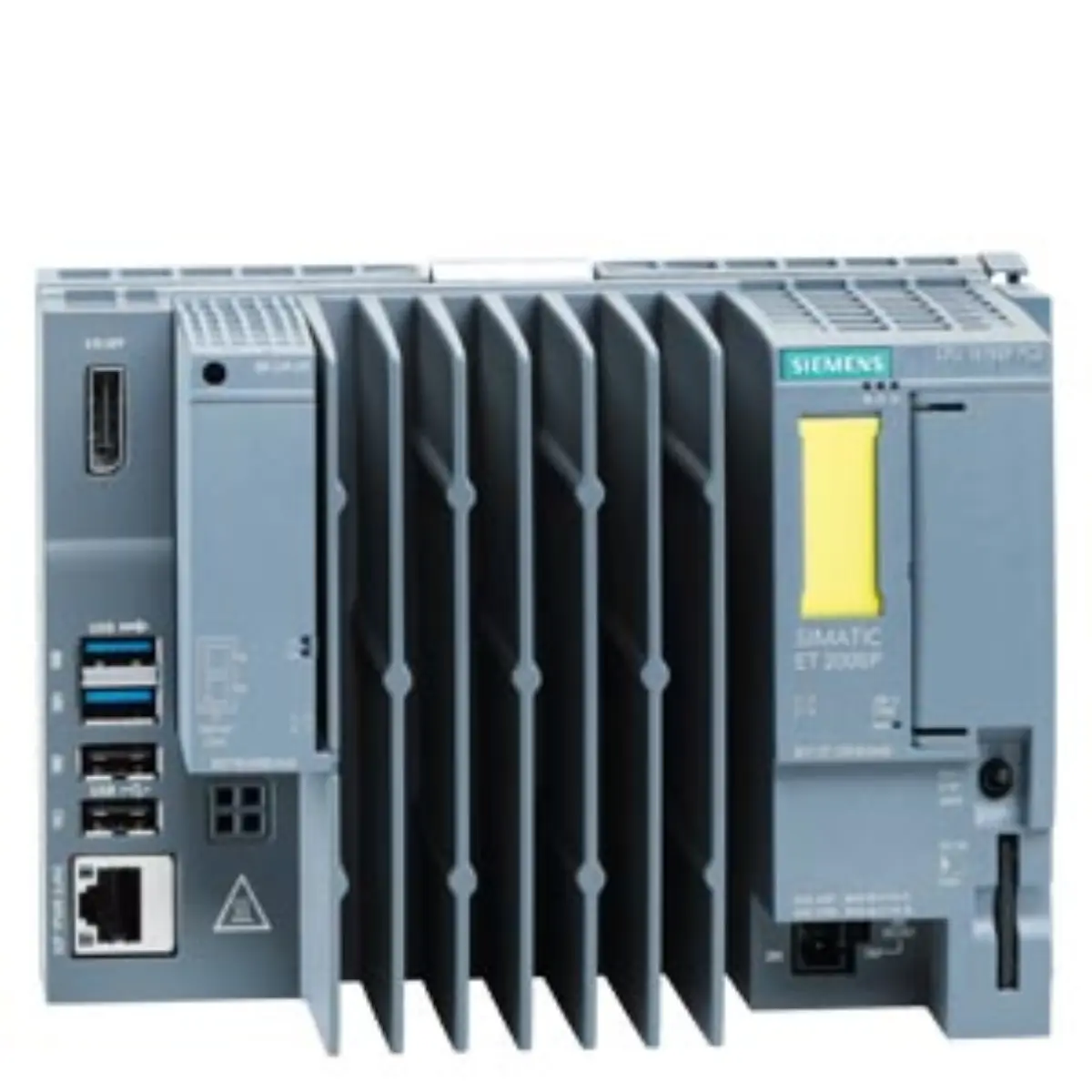

Siemens 6ES7677-2SB42-0GB0 CPU 1515SP PC2 F Inquiry

Part number

6ES7677-2SB42-0GB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2 F

Lifecycle

Active Product

Dimensions

19.00 x 14.1 x 9.5 cm

Net weight

1.051 Kg

Source category

CPU 1515SP PC2 F

• Processing capacity includes 8 GB RAM for the basic device, supporting extensive data handling and complex logic execution within the industrial environment.
• Storage relies on a 128 GB CFast interface, providing persistent memory for the operating system and critical application software required for continuous operation.
• The system operates on Windows 10 IoT Enterprise LTSC 2019 64-bit, offering a stable platform for the S7-1500 Failsafe Software Controller CPU 1505SP F V2x.
• Connectivity options feature one 10/100/1000 Mbps Ethernet port, enabling high-speed communication with other networked devices and control systems in the facility.
• Physical interfaces include two USB 3.0 ports and two USB 2.0 ports, allowing for versatile peripheral connections and data transfer methods.
• A DisplayPort output is included for direct visual monitoring, while an SD/MMC slot provides additional flexible storage expansion capabilities for project needs.

• The part number 6ES7677-2SB42-0GB0 identifies this specific variant of the CPU 1515SP PC2 F within the Siemens product portfolio.
• This model is classified under the Fail-safe CPUs category, indicating its design for safety-related control applications in industrial settings.
• The lifecycle status is recorded as Active Product, confirming that this hardware generation remains current and supported by the manufacturer.
• Documentation and restore images are stored on the CFast card, facilitating easier maintenance and system recovery procedures for engineers.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 19.00 x 14.1 x 9.5 cm, allowing for compact integration into standard automation cabinet layouts.
• The net weight is recorded at 1.051 Kg, which assists in calculating load requirements for mounting structures and handling equipment.
• Interface specifications include one connection for ET 200SP BusAdapter PROFINET, ensuring seamless integration with the distributed I/O system.
• Slot configurations consist of one CFast slot and one SD/MMC slot, providing distinct pathways for primary and secondary storage media.
• USB connectivity offers four total ports, split between USB 3.0 and USB 2.0 standards for varied peripheral application context and speed.

• Visual inspection should confirm the presence of the DisplayPort and Ethernet connectors on the front panel of the unit.
• Check that the CFast and SD/MMC slots are accessible and free from physical obstruction or damage before submission.
• Verify the labeling on the device matches the part number 6ES7677-2SB42-0GB0 to ensure correct model identification for the inquiry.
• Ensure the unit appears clean and undamaged, as physical condition can impact the assessment of the hardware during review.

• Gather project documentation specifying the need for fail-safe CPU capabilities and Windows 10 IoT Enterprise LTSC 2019 64-bit support.
• Confirm the required RAM capacity of 8 GB and storage size of 128 GB CFast for your specific application logic.
• Review the physical space constraints to ensure the 19.00 x 14.1 x 9.5 cm dimensions fit your control cabinet design.
• Prepare details regarding the necessary interface connections, including PROFINET BusAdapter, Ethernet, and USB port requirements for your setup.

• Cross-reference the preinstalled S7-1500 Failsafe Software Controller version to ensure it meets your safety integrity level requirements.
• Verify that the Windows 10 IoT Enterprise LTSC 2019 license aligns with your organization's software compliance and usage policies.
• Assess the need for additional USB peripherals or display outputs based on the recorded ports on the main unit.
• Ensure all technical parameters are accurately recorded in your inquiry to facilitate a precise and efficient response from the provider.
