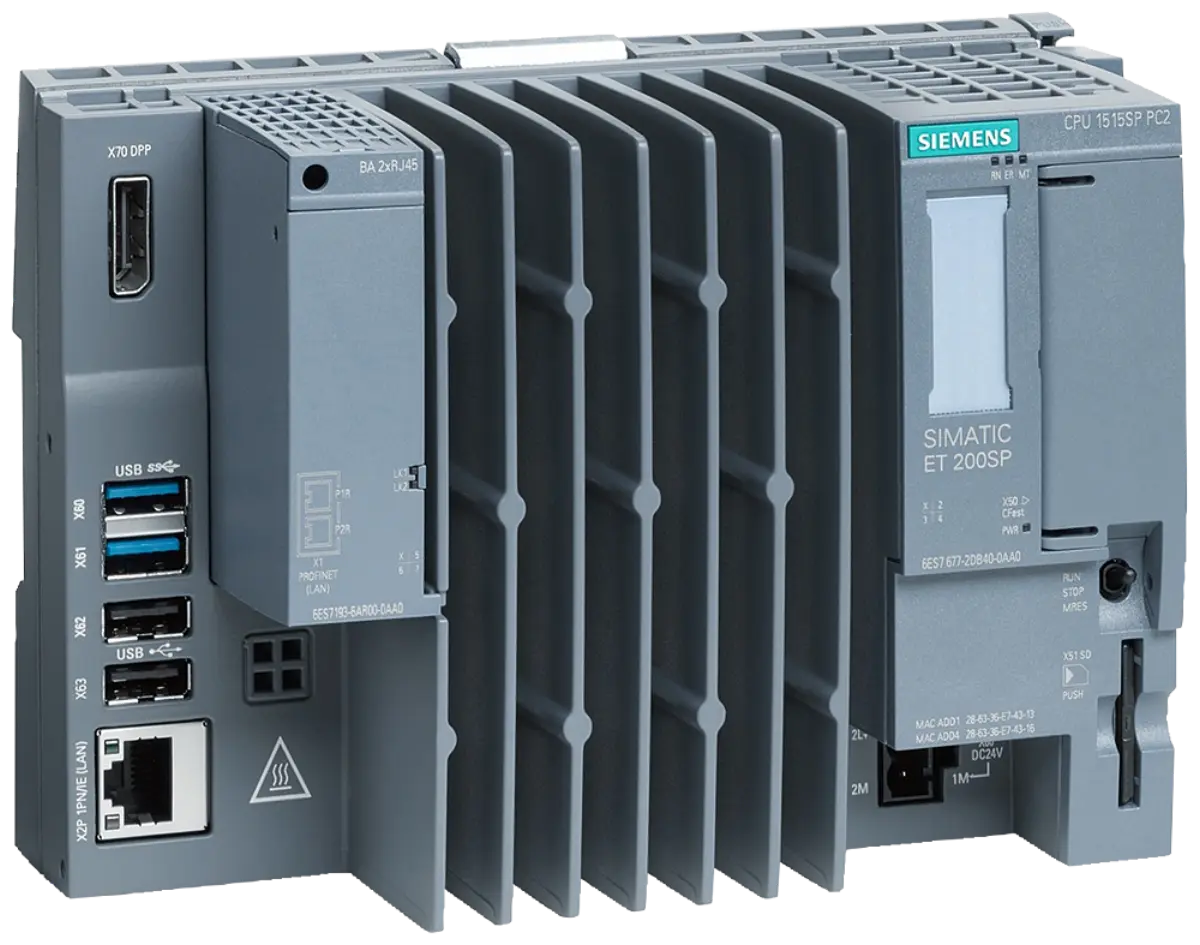

Siemens 6ES7677-2DB42-0GL0 CPU 1515SP PC2 Inquiry

Part number

6ES7677-2DB42-0GL0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2

Lifecycle

Active Product

Dimensions

18.8 x 14.4 x 9.8 cm

Net weight

1.03 Kg

Source category

CPU 1515SP PC2

• The base device is identified as 6ES7677-2DB40-0AA0 with 8 GB of RAM capacity. Keep dimensions 18.8 x 14.4 x 9.8 cm and net weight 1.03 Kg unchanged while comparing project documents and product image evidence.
• Storage includes a 128 GB CFast module running Windows 10 IoT Enterprise LTSC 2019 64-bit.
• The system hosts S7-1500 Software Controller CPU 1505SP V2x alongside WinCC Runtime Advanced V17.
• A 512 PowerTags license is included to support specific runtime licensing requirements.
• Interfaces feature one CFast slot, one SD/MMC slot, and a PROFINET BusAdapter connection.
• Connectivity options include Gigabit Ethernet, two USB 3.0 ports, two USB 2.0 ports, and DisplayPort.

• The part number 6ES7677-2DB42-0GL0 uniquely identifies this specific CPU 1515SP PC2 configuration. Use the source path Automation technology / Standard CPUs / CPU 1515SP PC2 to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Documentation is recorded on the CFast storage medium for easy reference during setup.
• The normalized part number 6ES76772DB420GL0 removes hyphens for standardized database indexing purposes.
• This model belongs to the broader SIMATIC ET 200SP Open Controller product family.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 18.8 x 14.4 x 9.8 centimeters for enclosure planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7677-2DB42-0GL0 record before publication.
• The net weight is listed at 1.03 kilograms for mounting and logistics calculations.
• Operating system specifications require review of the Windows 10 IoT Enterprise LTSC 2019 version.
• Software controller version V2x must be verified against existing project software dependencies.
• Runtime environment uses WinCC Runtime Advanced V17 for visualization and monitoring tasks.

• Visual inspection should confirm the presence of the DisplayPort connector on the rear panel. Review Siemens 6ES7677-2DB42-0GL0 as CPU 1515SP PC2 with source category CPU 1515SP PC2, recorded lifecycle Active Product, and submitted model identity.
• Check that the CFast and SD/MMC slots are accessible for media insertion.
• Verify the Ethernet port label indicates 10/100/1000 Mbps capability for network integration.
• Ensure USB ports are clearly visible for peripheral device connections during testing.

• Review project documentation to confirm the need for 8 GB RAM capacity. Keep dimensions 18.8 x 14.4 x 9.8 cm and net weight 1.03 Kg unchanged while comparing project documents and product image evidence.
• Verify that Windows 10 IoT Enterprise LTSC 2019 aligns with IT security policies.
• Check if the 512 PowerTags license meets the specific runtime application requirements.
• Confirm physical space constraints match the 18.8 x 14.4 x 9.8 cm footprint.

• Source parameter review is recommended before finalizing technical specifications for deployment.
• Project document review ensures all software licenses match the intended operational scope.
• Interface verification confirms PROFINET and Ethernet connectivity meet network infrastructure standards.
• Submission of detailed inquiry allows for precise technical alignment with engineering needs.
