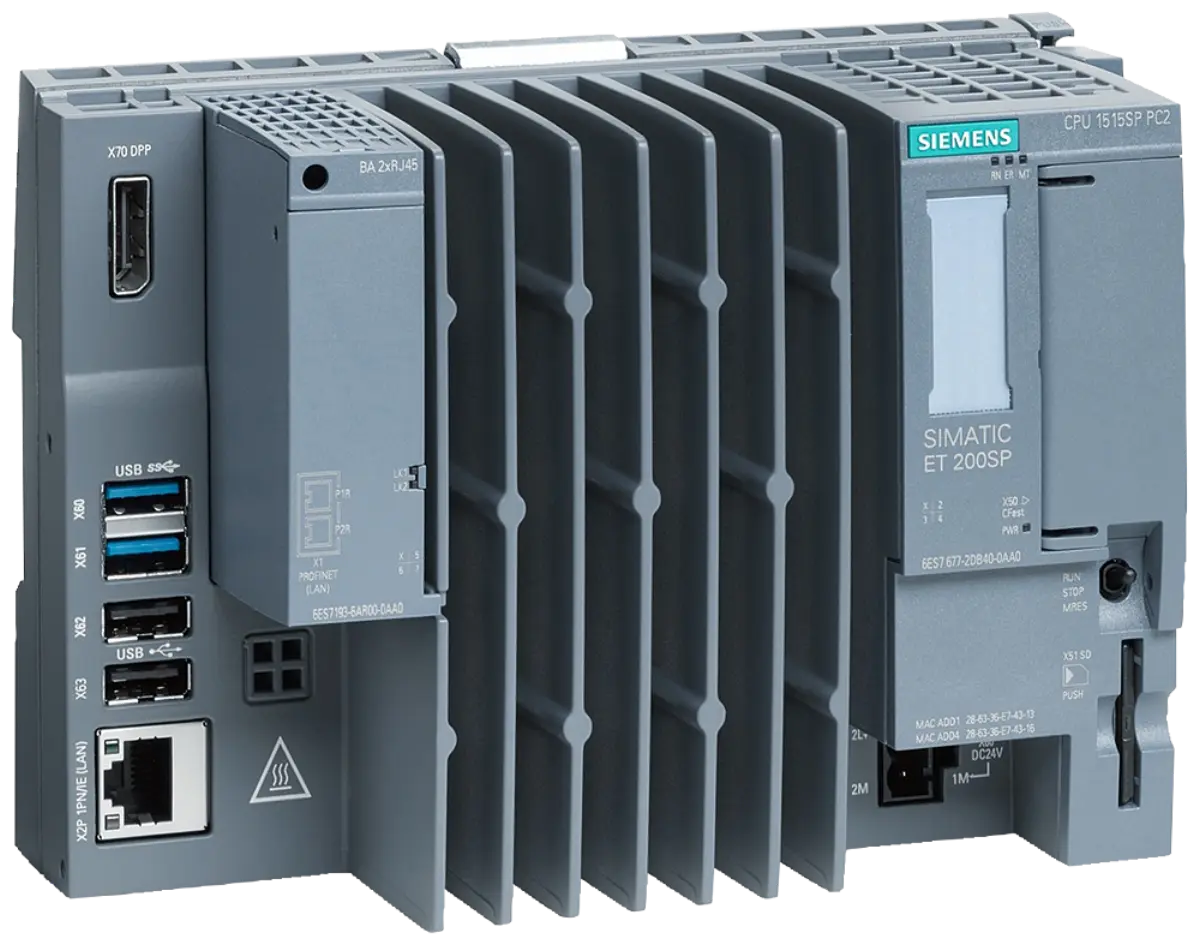

Siemens 6ES7677-2DB42-0GK0 CPU 1515SP PC2

Part number

6ES7677-2DB42-0GK0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2

Lifecycle

Active Product

Dimensions

19.2 x 14.4 x 9.5 cm

Net weight

1.054 Kg

Source category

CPU 1515SP PC2

• Core processing relies on the S7-1500 Software Controller CPU 1505SP V2x architecture for efficient task execution. Keep dimensions 19.2 x 14.4 x 9.5 cm and net weight 1.054 Kg unchanged while comparing project documents and product image evidence.
• WinCC Runtime Advanced V17 is preinstalled to manage visualization and control processes within the open controller environment.
• The unit provides 128 PowerTags licenses to support extensive data tagging requirements for complex industrial applications.
• Storage expansion includes one slot for CFast media and one slot for SD/MMC cards for data logging.
• Network connectivity features a dedicated PROFINET BusAdapter interface alongside a standard 10/100/1000 Mbps Ethernet port.
• Peripheral connections include two USB 3.0 ports, two USB 2.0 ports, and one DisplayPort for external displays.

• The part number 6ES7677-2DB42-0GK0 identifies the specific variant of the CPU 1515SP PC2 series. Use the source path Automation technology / Standard CPUs / CPU 1515SP PC2 to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is classified under the Active Product lifecycle status within the Siemens automation portfolio.
• It belongs to the Standard CPUs category, specifically tailored for open controller applications.
• The base hardware configuration references the basic device part number 6ES7677-2DB40-0AA0 for foundational identification.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 19.2 cm in width, 14.4 cm in depth, and 9.5 cm in height.
• The net weight of the unit is listed at 1.054 Kg for logistics and mounting considerations.
• Documentation materials are stored directly on the CFast card for easy access and reference during setup.
• Operating system specifications confirm the use of Windows 10 IoT Enterprise LTSC 2019 64-bit edition.

• Visual inspection should verify the presence of the DisplayPort connector on the rear panel interface.
• Check that the CFast and SD/MMC slots are accessible and free from physical obstruction.
• Confirm the labeling on the front plate matches the part number 6ES7677-2DB42-0GK0 exactly.
• Ensure all USB ports are clearly visible and undamaged for peripheral device connection verification.

• Review the submitted model number to ensure it matches the required CPU 1515SP PC2 specification.
• Verify the necessary software licenses, particularly the 128 PowerTags count, for your specific project scope.
• Check the operating system version requirements to confirm application context with existing WinCC Runtime Advanced setups.
• Assess the physical space constraints against the recorded dimensions of 19.2 x 14.4 x 9.5 cm.

• Cross-reference the interface list to ensure all required communication protocols are supported by the hardware.
• Confirm the preinstallation of S7-1500 Software Controller CPU 1505SP V2x matches your engineering standards.
• Validate the 8 GB RAM allocation is sufficient for the intended runtime application complexity.
• Ensure the 128 GB CFast capacity meets the data retention needs for your operational logs.
