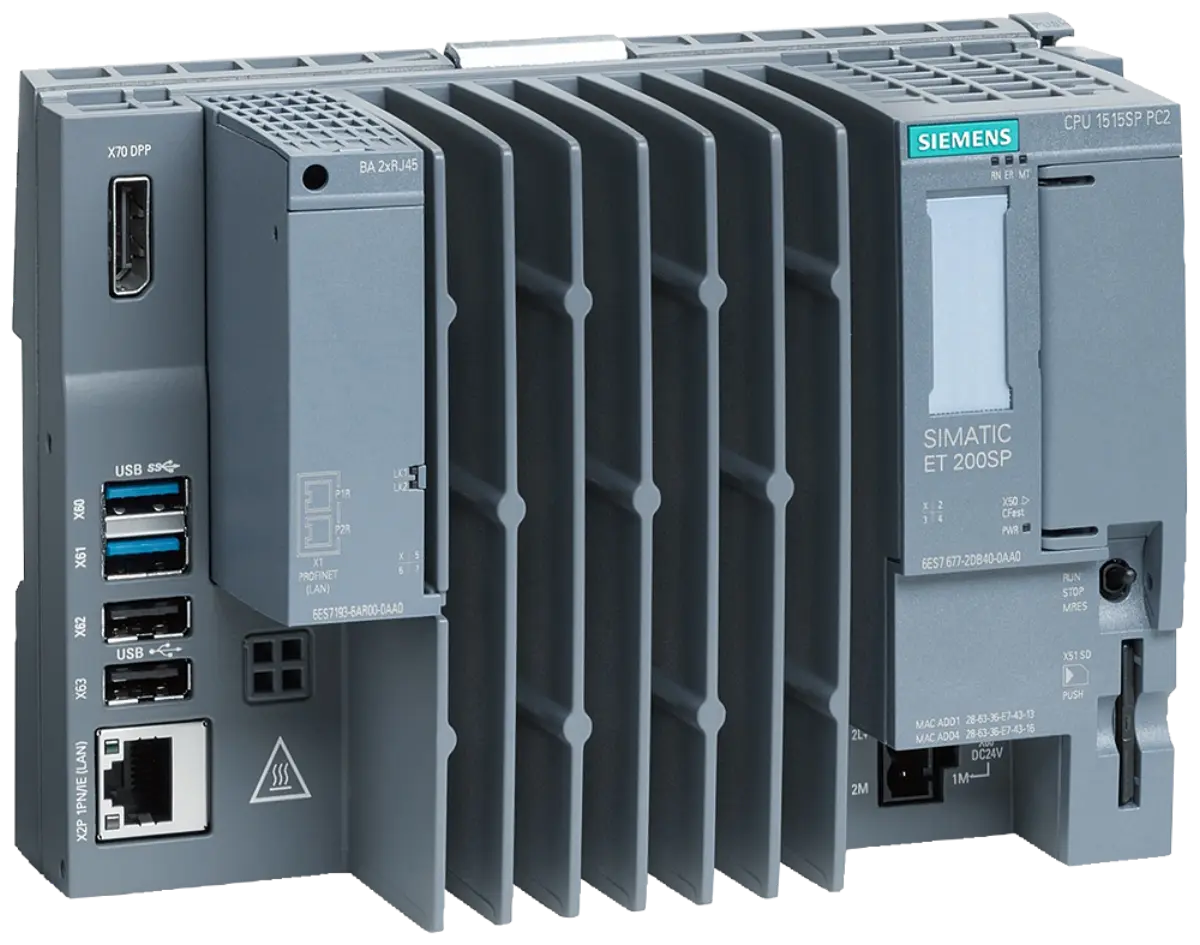

6ES7677-2DB42-0GB1 Siemens SIMATIC ET 200SP Open Controller

Part number

6ES7677-2DB42-0GB1

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1515SP PC2

Lifecycle

Active Product

Dimensions

19.00 x 14.1 x 9.5 cm

Net weight

1.028 Kg

Source category

CPU 1515SP PC2

• Memory capacity includes 8 GB RAM based on the basic device specification 6ES7677-2DB40-0AA0. Keep dimensions 19.00 x 14.1 x 9.5 cm and net weight 1.028 Kg unchanged while comparing project documents and product image evidence.
• Storage utilizes a 128 GB CFast card running Windows 10 IoT Enterprise LTSC 2021 64-bit.
• Connectivity features one 10/100/1000 Mbps Ethernet port for network communication and data transfer.
• Interface options include two USB 3.0 ports and two USB 2.0 ports for peripheral access.
• Video output is provided via one DisplayPort for local monitoring and configuration display purposes.
• Expansion slots consist of one CFast slot and one SD/MMC slot for additional storage media.

• The part number 6ES7677-2DB42-0GB1 identifies this specific variant of the CPU 1515SP PC2. Use the source path Automation technology / Standard CPUs / CPU 1515SP PC2 to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It belongs to the SIMATIC ET 200SP Open Controller family under Automation technology.
• The lifecycle status is recorded as Active Product indicating current manufacturing and support review details.
• Documentation and restore images are stored on the CFast card for system recovery procedures.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 19.00 x 14.1 x 9.5 cm for spatial planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7677-2DB42-0GB1 record before publication.
• Net weight is recorded at 1.028 Kg for logistics and mounting load calculations.
• The base hardware references basic device 6ES7677-2DB40-0AA0 for underlying component specifications.
• Operating system version is specified as Windows 10 IoT Enterprise LTSC 2021 64-bit.
• Controller software version is identified as S7-1500 software Controller CPU 1505SP V3x.

• Visual inspection should confirm the presence of the DisplayPort connector on the front panel. Review Siemens 6ES7677-2DB42-0GB1 as CPU 1515SP PC2 with source category CPU 1515SP PC2, recorded lifecycle Active Product, and submitted model identity.
• Check that all four USB ports are accessible and undamaged for peripheral connections.
• Verify the CFast and SD/MMC slots are clear for memory card insertion.
• Ensure the Ethernet port shows no physical damage for reliable network connectivity.

• Review project documents to confirm the need for 8 GB RAM capacity.
• Verify space constraints against the recorded dimensions of 19.00 x 14.1 x 9.5 cm.
• Check power supply requirements for the 1.028 Kg unit weight during installation.
• Confirm software licensing needs for Windows 10 IoT Enterprise LTSC 2021 64-bit.

• Source parameter review should validate the CFast storage size against project needs.
• Confirm the preinstalled S7-1500 software matches the required controller functionality.
• Check interface counts to ensure sufficient USB and Ethernet ports for design.
• Review documentation review details on CFast for system restoration and setup guidance.
