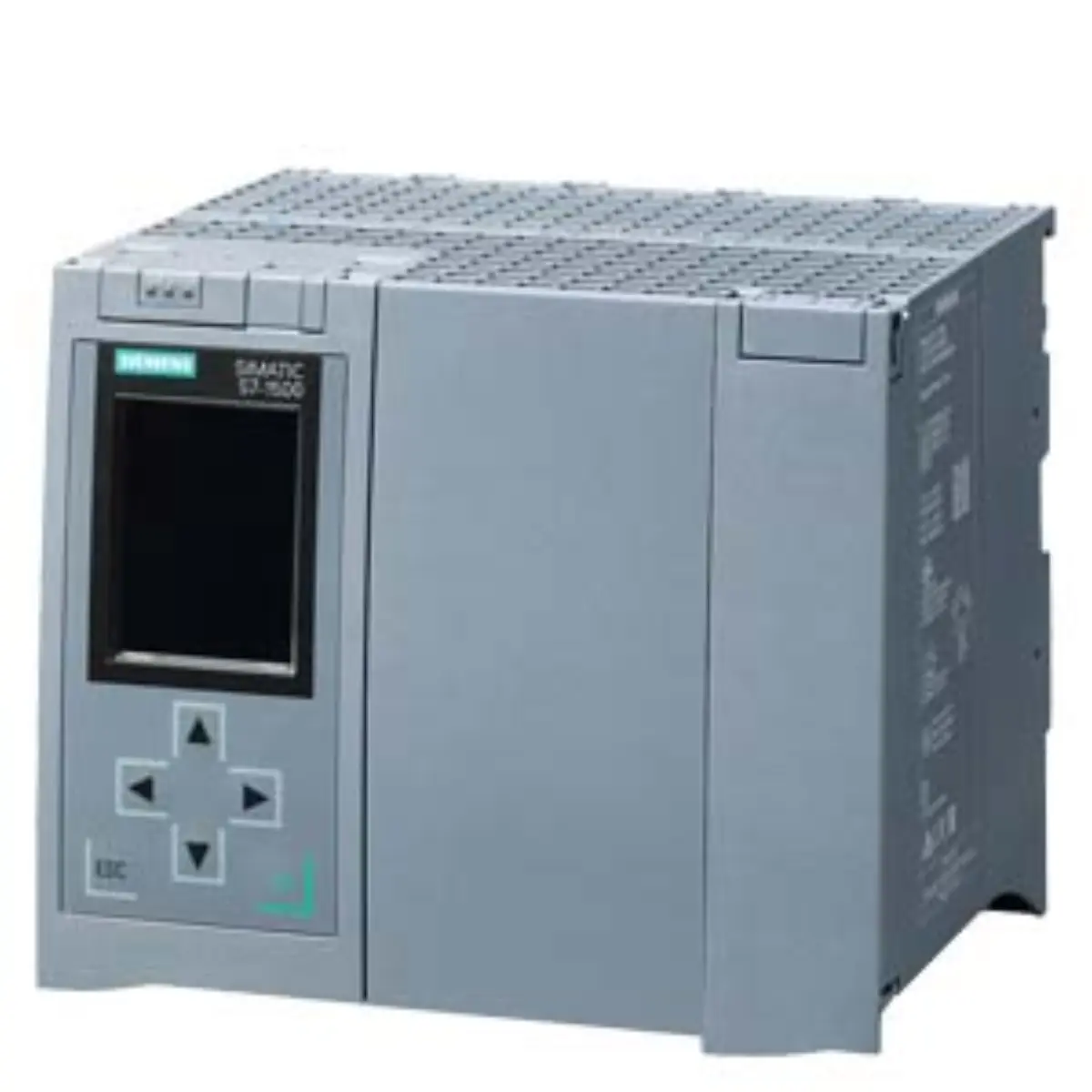

Siemens 6ES7518-4FX00-1AC0 CPU 1518F-4 PN/DP MFP

Part number

6ES7518-4FX00-1AC0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1518F-4 PN/DP MFP

Lifecycle

Active Product

Dimensions

22.3 x 20.00 x 15.9 cm

Net weight

2.292 Kg

Source category

CPU 1518F-4 PN/DP MFP

• Processing speed achieves 1 ns bit performance for rapid execution of control logic sequences. Keep dimensions 22.3 x 20.00 x 15.9 cm and net weight 2.292 Kg unchanged while comparing project documents and product image evidence.
• First interface utilizes PROFINET IRT technology equipped with a built-in two-port switch mechanism.
• Second interface supports PROFINET RT protocol for real-time communication requirements in networked systems.
• Third interface provides PROFINET basic services for standard network connectivity and configuration tasks.
• Fourth interface connects via PROFIBUS protocol to support legacy and specific field device integration.
• The bundle includes C/C++ Runtime and OPC UA Runtime licenses for advanced programming needs.

• Part number 6ES7518-4FX00-1AC0 identifies the specific fail-safe CPU variant within the S7-1500F family. Use the source path Automation technology / Fail-safe CPUs / CPU 1518F-4 PN/DP MFP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The base component corresponds to CPU 1518F-4 PN/DP MFP with reference code 6ES7518-4FX00-1AB0.
• Lifecycle status is recorded as Active Product indicating current manufacturing and support review details.
• Brand designation confirms Siemens as the manufacturer of this industrial automation control hardware.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 22.3 cm in width, 20.00 cm in depth, and 15.9 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7518-4FX00-1AC0 record before publication.
• Net weight of the unit is specified as 2.292 Kg for logistics and mounting calculations.
• Work memory capacity is divided into 9 MB for program blocks and 60 MB for data blocks.
• Minimum memory card requirement is set at 2 GB to ensure proper boot and data storage.
• Interface configuration includes four distinct connection points for diverse network topology implementations.

• Visual inspection should confirm the presence of all four network interface ports on the front panel.
• Labeling must clearly display the full part number 6ES7518-4FX00-1AC0 for accurate identification purposes.
• Check for any physical damage to the connector pins or housing integrity before submission.
• Verify that the model name CPU 1518F-4 PN/DP MFP matches the technical documentation provided.

• Gather project requirements specifying the need for fail-safe CPU functionality and PROFINET/PROFIBUS interfaces.
• Confirm that the existing infrastructure supports the 1 ns bit performance and memory allocations listed.
• Ensure that a application context SIMATIC Memory Card with minimum 2 GB capacity is procured separately.
• Prepare technical documents highlighting the specific C/C++ and OPC UA runtime license requirements.

• Cross-reference the part number 6ES7518-4FX00-1AC0 with internal project bills of materials.
• Validate that the dimension and weight data align with rack mounting space constraints.
• Review the interface list to ensure application context with existing network infrastructure protocols.
• Confirm that the active lifecycle status meets long-term maintenance and support expectations.
