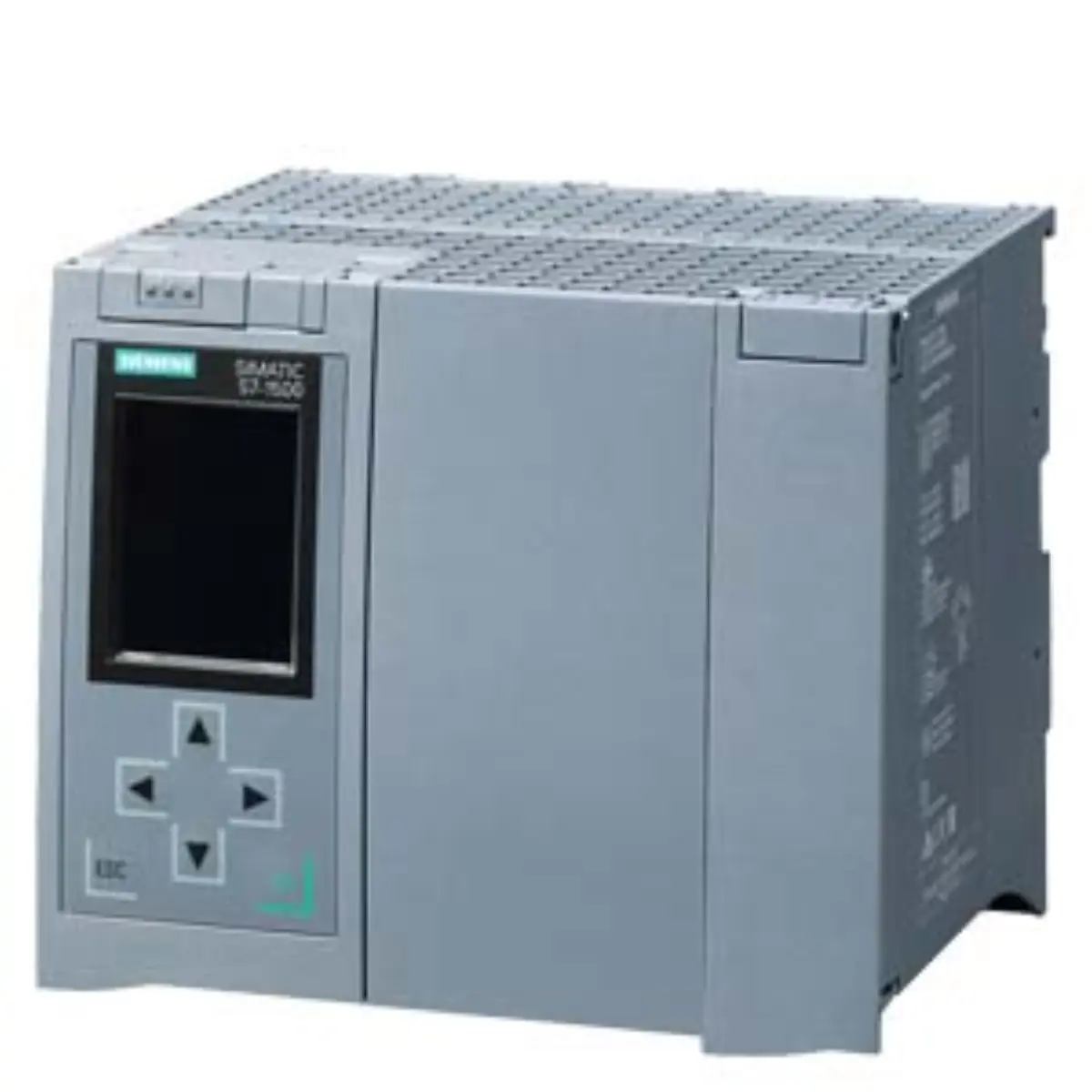

Siemens 6ES7518-4FP00-0AB0 CPU 1518F-3 PN Specification Review

Part number

6ES7518-4FP00-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1518F-3 PN

Lifecycle

Phase Out Announce

Dimensions

22.5 x 20.00 x 15.9 cm

Net weight

2.223 Kg

Source category

CPU 1518F-3 PN

• Work memory capacity is recorded at 9 MB for program storage and 60 MB for data management within the central processing unit architecture.
• The first interface utilizes PROFINET IRT technology featuring a built-in two-port switch for deterministic real-time communication across network segments.
• A second interface provides PROFINET RT support, enabling flexible Ethernet connectivity for standard industrial automation protocols and data exchange requirements.
• Basic PROFINET services are accessible via a third interface, allowing integration with higher-level control systems and monitoring software platforms.
• PROFIBUS connectivity is established through a fourth interface, supporting legacy fieldbus devices and traditional serial communication networks in plant operations.
• Bit performance is specified at 1 nanosecond, ensuring rapid execution of safety-related logic and standard control instructions within the cycle time.

• The part number 6ES7518-4FP00-0AB0 identifies the specific hardware revision and configuration options for this fail-safe CPU module.
• Normalized part number 6ES75184FP000AB0 removes hyphens for database indexing and consistent technical documentation reference across systems.
• Brand designation Siemens confirms the manufacturer origin and aligns with the SIMATIC S7-1500F product family classification standards.
• Product type CPU 1518F-3 PN distinguishes this unit from other variants within the S7-1500F fail-safe controller lineup.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 22.5 x 20.00 x 15.9 cm, providing spatial requirements for rack mounting and enclosure planning.
• Net weight is recorded at 2.223 Kg, which assists in calculating load distribution for DIN rail or panel installation structures.
• Source category path indicates placement under Automation technology, Fail-safe CPUs, and specifically the CPU 1518F-3 PN subgrouping.
• Lifecycle status Phase Out Announce suggests reviewing long-term supply strategies and potential migration paths for existing installations.
• SIMATIC Memory Card requirement is noted as essential for operation, indicating external storage dependency for program and data retention.

• Visual inspection should confirm the presence of the PROFINET and PROFIBUS interface ports on the front panel of the unit.
• Label verification ensures the printed part number matches the inquiry subject 6ES7518-4FP00-0AB0 for accurate documentation alignment.
• Physical condition assessment checks for any visible damage to connectors or housing that might affect installation procedures.
• Mounting rail application context can be visually verified against standard DIN rail specifications used in industrial control cabinet designs.

• Review project documents to confirm the necessity of fail-safe functionality alongside standard control requirements for the application.
• Verify network topology needs to ensure PROFINET IRT and RT interfaces meet the bandwidth and determinism demands.
• Check existing infrastructure for PROFIBUS devices to confirm the fourth interface supports current fieldbus communication protocols effectively.
• Assess memory card review details and specifications to ensure compliance with the SIMATIC Memory Card requirement for system operation.

• Confirm the phase-out status implications for maintenance and long-term operational continuity within the target facility.
• Evaluate the 1 ns bit performance against control loop requirements to ensure sufficient speed for safety logic execution.
• Cross-reference the 9 MB program and 60 MB data memory limits with current and future application scope.
• Document the physical dimensions and weight for logistical planning regarding shipping, handling, and final installation positioning.
