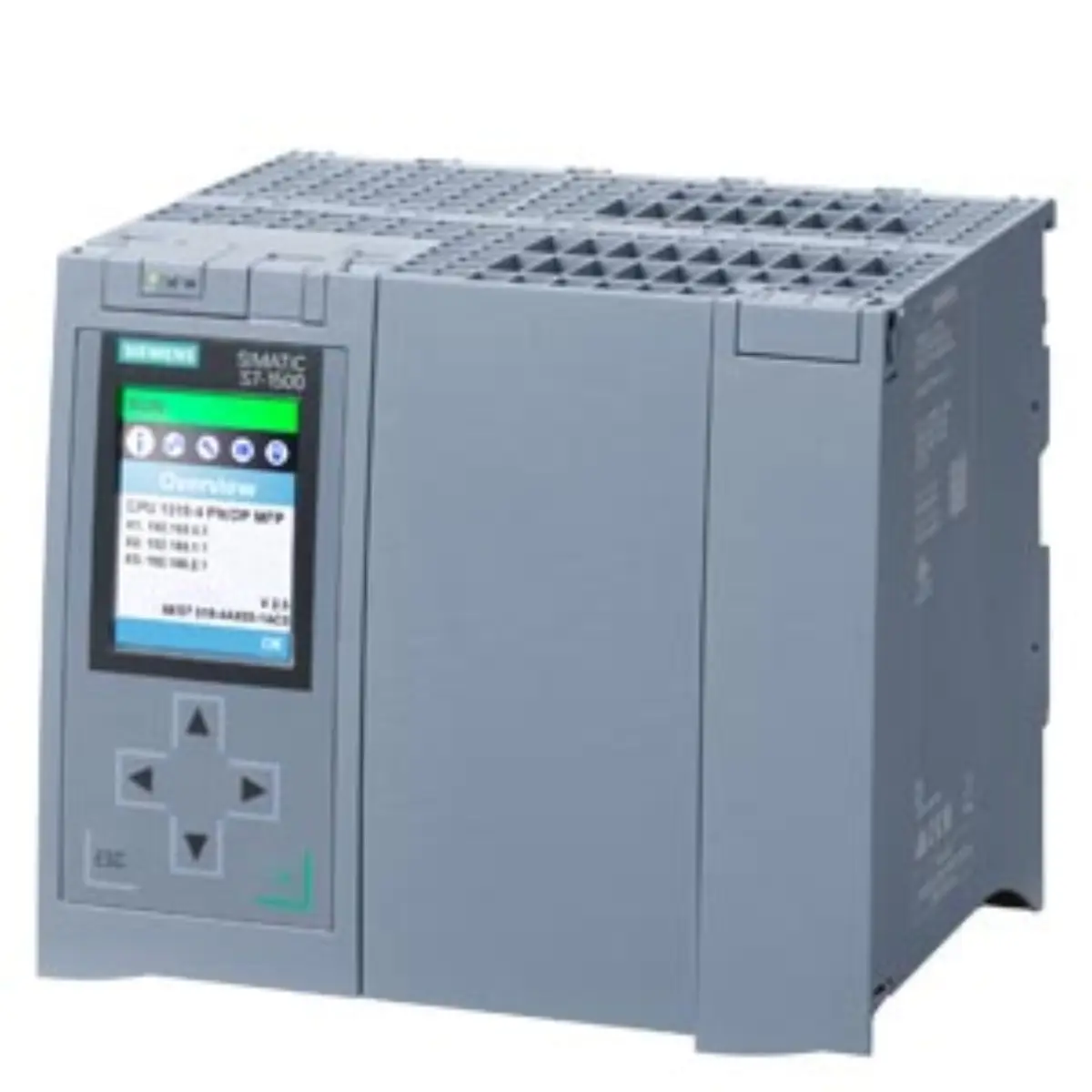

Siemens 6ES7518-4AX00-1AC0 CPU 1518-4 PN/DP MFP

Part number

6ES7518-4AX00-1AC0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1518-4 PN/DP MFP

Lifecycle

Active Product

Dimensions

22.2 x 20.4 x 16.1 cm

Net weight

2.314 Kg

Source category

CPU 1518-4 PN/DP MFP

• Processing speed reaches 1 ns bit performance for rapid execution cycles. Keep dimensions 22.2 x 20.4 x 16.1 cm and net weight 2.314 Kg unchanged while comparing project documents and product image evidence.
• First interface utilizes PROFINET IRT with a built-in 2-port switch.
• Second interface provides PROFINET RT connectivity for real-time communication needs.
• Third interface delivers PROFINET basic services for standard network operations.
• Fourth interface supports PROFIBUS DP for legacy and specific field device connections.
• C/C++ Runtime and OPC UA Runtime licenses are included in the bundle.

• Base component is identified as CPU 1518-4 PN/DP MFP. Use the source path Automation technology / Standard CPUs / CPU 1518-4 PN/DP MFP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Reference part number 6ES7518-4AX00-1AB0 indicates the core CPU unit.
• Current listing uses part number 6ES7518-4AX00-1AC0 for the complete bundle.
• Lifecycle status is recorded as Active Product within the catalog.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 22.2 x 20.4 x 16.1 cm. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7518-4AX00-1AC0 record before publication.
• Net weight is listed as 2.314 Kg for shipping calculations.
• Work memory capacity is specified at 6 MB for program logic.
• Data memory capacity is specified at 60 MB for variable storage.
• Minimum memory card requirement is 2 GB for system operation.

• Verify front panel labels match the exact part number sequence. Review Siemens 6ES7518-4AX00-1AC0 as CPU 1518-4 PN/DP MFP with source category CPU 1518-4 PN/DP MFP, recorded lifecycle Active Product, and submitted model identity.
• Check port configurations for PROFINET and PROFIBUS interface presence.
• Inspect physical condition for any visible mounting or connector damage.
• Confirm brand markings align with Siemens manufacturing standards and logos.

• Prepare project documentation specifying required PROFINET and PROFIBUS network topology. Keep dimensions 22.2 x 20.4 x 16.1 cm and net weight 2.314 Kg unchanged while comparing project documents and product image evidence.
• List necessary runtime licenses if additional C/C++ or OPC UA features are needed.
• Specify memory card capacity requirements ensuring minimum 2 GB is selected.
• Provide installation environment details to verify dimensional and weight constraints.

• Cross-reference technical specs with current project control system requirements. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7518-4AX00-1AC0 record before publication.
• Validate interface types against existing fieldbus infrastructure and protocols.
• Ensure memory allocations meet anticipated program and data size growth.
• Confirm physical dimensions fit within designated control cabinet spaces.
