6ES7517-3FP00-0AB0 SIMATIC S7-1500F CPU 1517F-3 PN/DP

Part number

6ES7517-3FP00-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1517F-3 PN/DP

Lifecycle

Phase Out Announce

Dimensions

22.3 x 19.8 x 15.9 cm

Net weight

2.104 Kg

Source category

CPU 1517F-3 PN/DP

• Work memory capacity includes 3 MB for program storage and 8 MB for data handling within the central processing unit architecture. Keep dimensions 22.3 x 19.8 x 15.9 cm and net weight 2.104 Kg unchanged while comparing project documents and product image evidence.
• The first interface utilizes PROFINET IRT technology featuring a built-in two-port switch for high-speed deterministic communication networks.
• A second PROFINET RT interface provides additional real-time connectivity options for standard automation tasks and network expansion requirements.
• The third interface supports PROFIBUS DP protocol, enabling seamless integration with legacy devices and distributed I/O stations.
• Bit performance is recorded at 2 nanoseconds, ensuring rapid execution of logic operations and precise timing control.
• A SIMATIC Memory Card is required for operation, serving as essential storage for firmware and configuration data.

• Identify this unit as a CPU 1517F-3 PN/DP from the Siemens SIMATIC S7-1500F product family line. Use the source path Automation technology / Fail-safe CPUs / CPU 1517F-3 PN/DP to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The part number 6ES7517-3FP00-0AB0 corresponds specifically to the fail-safe variant with dual Ethernet and serial ports.
• Lifecycle status is listed as Phase Out Announce, indicating future supply considerations for long-term planning.
• Brand attribution is confirmed as Siemens, a primary manufacturer of industrial automation and drive technologies globally.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 22.3 cm in width, 19.8 cm in depth, and 15.9 cm in height.
• Net weight is specified at 2.104 kilograms, which is relevant for rack mounting and structural load calculations.
• Memory allocation details show distinct partitions for program logic versus dynamic data storage within the CPU.
• Interface configuration includes three distinct communication channels supporting both modern PROFINET and traditional PROFIBUS standards.

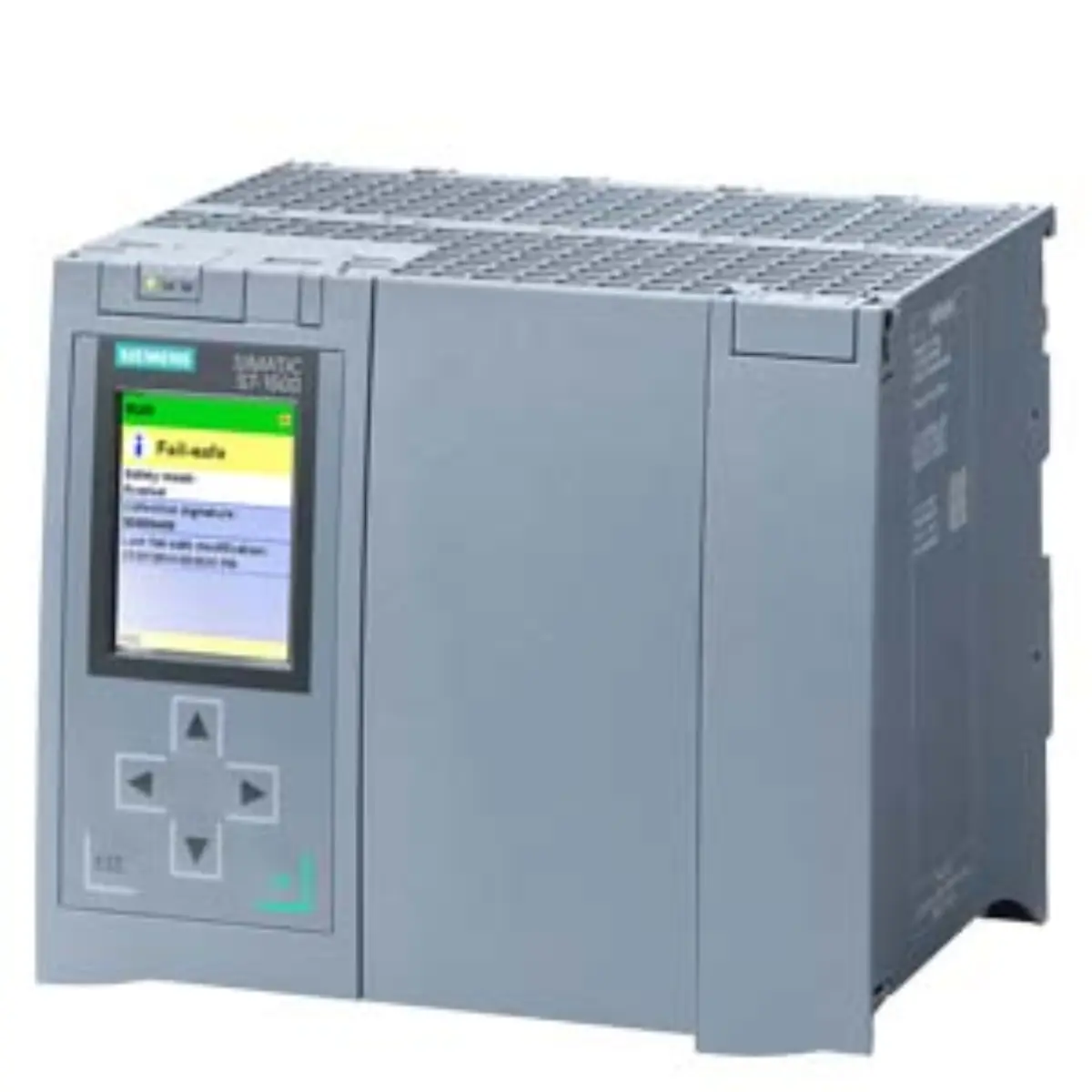

• Front panel displays the Siemens logo and model designation clearly for easy visual identification during inspection.
• Terminal blocks and connection points are visible, showing the layout for power and communication cable attachments.
• Status LEDs indicate operational states, providing immediate visual feedback on CPU activity and error conditions.
• Overall housing design reflects the compact form factor typical of the S7-1500F series modular construction.

• Verify the exact part number 6ES7517-3FP00-0AB0 matches your current bill of materials or engineering documentation.
• Confirm that your existing rack infrastructure can accommodate the physical dimensions and weight of this module.
• Check if your network topology supports PROFINET IRT and PROFIBUS DP protocols for full functionality.
• Ensure you have the necessary SIMATIC Memory Cards prepared for initial commissioning and data retention.

• Source parameter review confirms the technical specifications align with the published Siemens product documentation.
• Lifecycle status indicates proactive planning is advisable due to the Phase Out Announce classification.
• Dimensional data should be cross-referenced with cabinet layout drawings to ensure proper physical fitment.
• Inquiry submission should include specific application details to assist in technical evaluation and support.
