6ES7514-2WN03-0AB0 Siemens SIMATIC CPU 1514SP TF-2 PN

Part number

6ES7514-2WN03-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1514SP TF-2 PN

Lifecycle

Active Product

Dimensions

13.5 x 13.3 x 8.2 cm

Net weight

0.342 Kg

Source category

CPU 1514SP TF-2 PN

• Work memory capacity is recorded at 900 KB for program storage and 3.5 MB for data management within the central processing unit structure.
• The first communication interface utilizes PROFINET IRT technology, featuring a built-in two-port switch configuration for network connectivity.
• A second interface supports PROFINET RT standards, enabling real-time communication capabilities with specified bit performance metrics for synchronized operations.
• Physical dimensions of the unit are listed as 13.5 cm in width, 13.3 cm in depth, and 8.2 cm in height.
• Net weight is documented at 0.342 kilograms, indicating the mass of the hardware component for logistical planning purposes.
• The lifecycle status is identified as Active Product, confirming current manufacturing and support status for this specific model identifier.

• The part number 6ES7514-2WN03-0AB0 uniquely identifies this specific CPU variant within the Siemens SIMATIC product portfolio.
• The normalized part number 6ES75142WN030AB0 serves as an alternative reference format for database indexing and search queries.
• Product classification falls under the broader category of PLC CPU controllers, focusing on central processing capabilities.
• Source categorization places this item within Automation technology, specifically under Technology CPUs and the CPU 1514SP TF-2 PN line.

Parameters are factual source fields retained for model review.

• Memory allocation details specify distinct regions for program execution and data retention, totaling 900 KB and 3.5 MB respectively.
• Network interface specifications include PROFINET IRT with dual ports and PROFINET RT for flexible communication topology options.
• Hardware inclusion notes indicate that a server module, identified as 6ES7193-6PA00-0AA0, is provided with the main unit.
• Additional requirements list a SIMATIC Memory Card and a BusAdapter for the first interface as necessary components for operation.

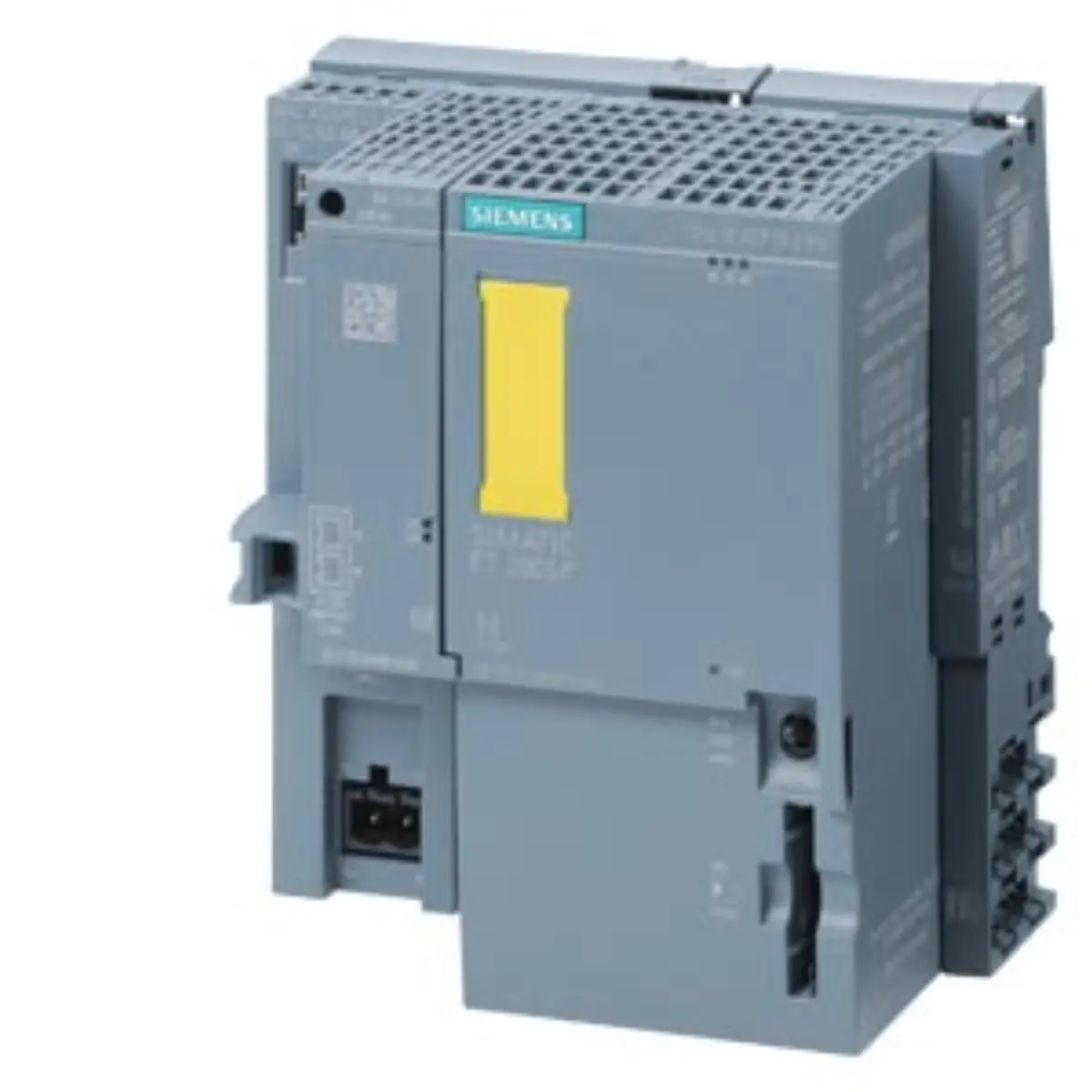

• Visual documentation should display the front panel showing the PROFINET ports and status indicators for the CPU unit.
