6ES7514-2DN03-0AB0 SIMATIC DP CPU 1514SP-2 PN Technical Overview

Part number

6ES7514-2DN03-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1514SP-2 PN

Lifecycle

Active Product

Dimensions

13.5 x 13.3 x 8.2 cm

Net weight

0.34 Kg

Source category

CPU 1514SP-2 PN

• Processing speed is recorded at 6 nanoseconds per bit operation, ensuring rapid execution of control logic commands within the automation cycle.
• The first communication interface utilizes PROFINET IRT technology, featuring a built-in two-port switch configuration for high-performance network connectivity.
• A second interface supports PROFINET RT standards, allowing for flexible network topology options depending on specific project timing requirements.
• Program memory capacity is listed as 600 KB, providing sufficient space for storing application code and logic routines.
• Data memory allocation stands at 3.5 MB, facilitating the storage of process values, tags, and temporary operational data.
• Physical dimensions are documented as 13.5 by 13.3 by 8.2 centimeters, with a net weight of 0.34 kilograms for mounting considerations.

• The part number 6ES7514-2DN03-0AB0 uniquely identifies this specific CPU variant within the Siemens SIMATIC product portfolio.
• Product classification falls under the CPU 1514SP-2 PN category, indicating its role in the S7-1500 family ecosystem.
• Brand attribution is clearly established as Siemens, reflecting the manufacturer of the underlying electronic components and firmware.
• Lifecycle status is marked as Active Product, suggesting ongoing support and documentation review details for engineering reference.

Parameters are factual source fields retained for model review.

• Source parameter review indicates the inclusion of a server module, identified by part number 6ES7193-6PA00-0AA0, within the standard configuration.
• Memory card requirements are noted as necessary for operation, implying that storage expansion or boot media must be sourced separately.
• BusAdapter specifications are listed as required for the first interface, highlighting additional hardware needs for proper network connection setup.
• Interface types confirm dual PROFINET capabilities, supporting both Isochronous Real-Time and Real-Time communication protocols for diverse applications.

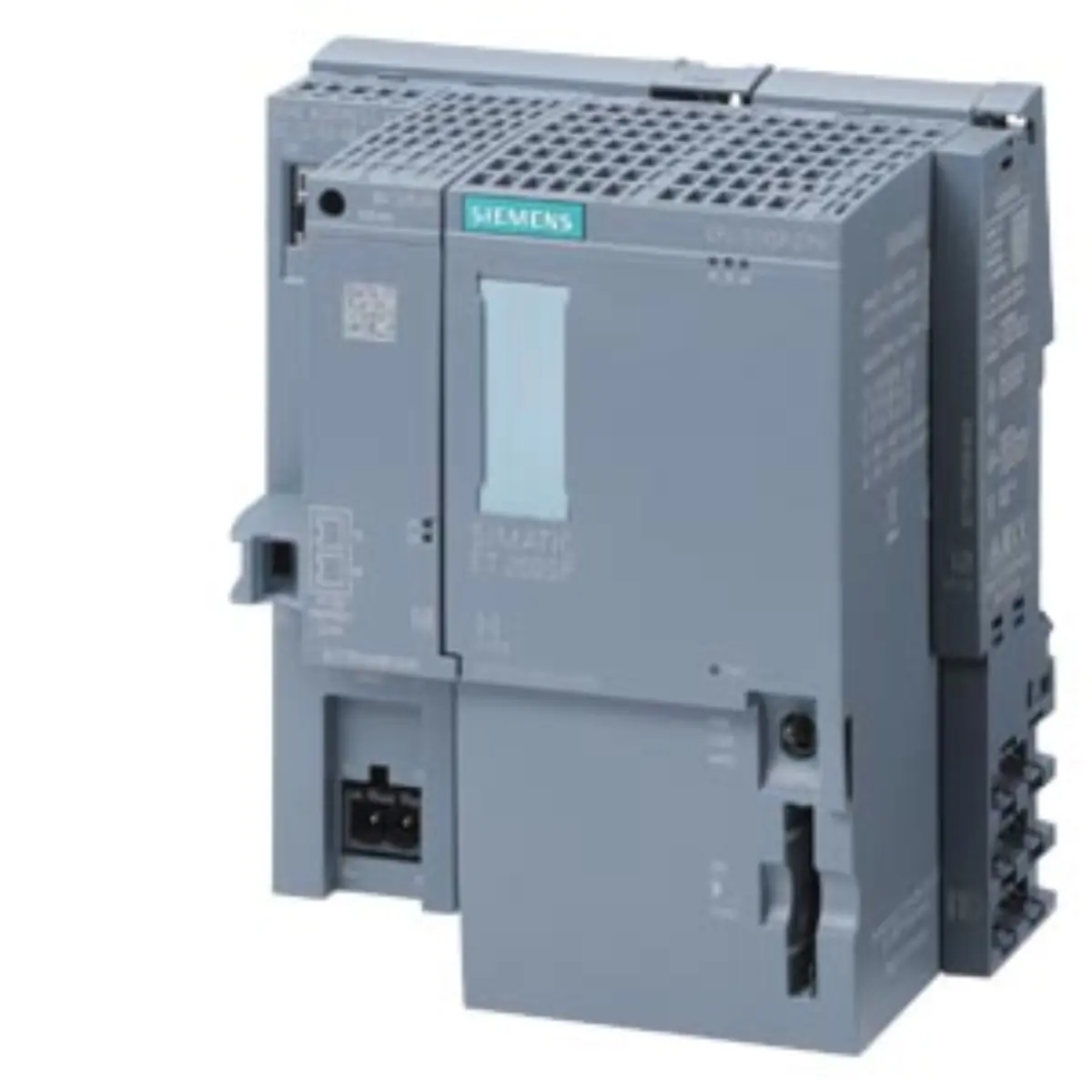

• Visual documentation should display the front panel indicators and port layout characteristic of the ET 200SP CPU series.
• Side views may illustrate the modular design and mounting rail attachment points relevant for installation planning purposes.
• Labeling details on the housing typically include the full part number and serial information for asset tracking verification.
• Connector close-ups help identify the specific PROFINET ports and auxiliary connections recorded on the device faceplate.

• Review project documents to confirm the necessity of PROFINET IRT versus RT capabilities for your specific network architecture.
• Verify memory requirements against current program size estimates to ensure the 600 KB and 3.5 MB allocations remain sufficient.
• Check existing infrastructure for the required server module and BusAdapter components to complete the initial system setup.
• Prepare technical specifications sheet detailing the 6ns bit performance metrics for evaluation by engineering teams during selection.

• Confirm the exact physical dimensions match the 13.5 x 13.3 x 8.2 cm specification for enclosure fitment checks.
• Validate the net weight of 0.34 Kg against structural load calculations for DIN rail or panel mounting scenarios.
• Ensure the active product status allows for straightforward sourcing and technical support access during the inquiry preparation phase.
• Cross-reference the included server module part number to verify application context with the main CPU housing assembly.
