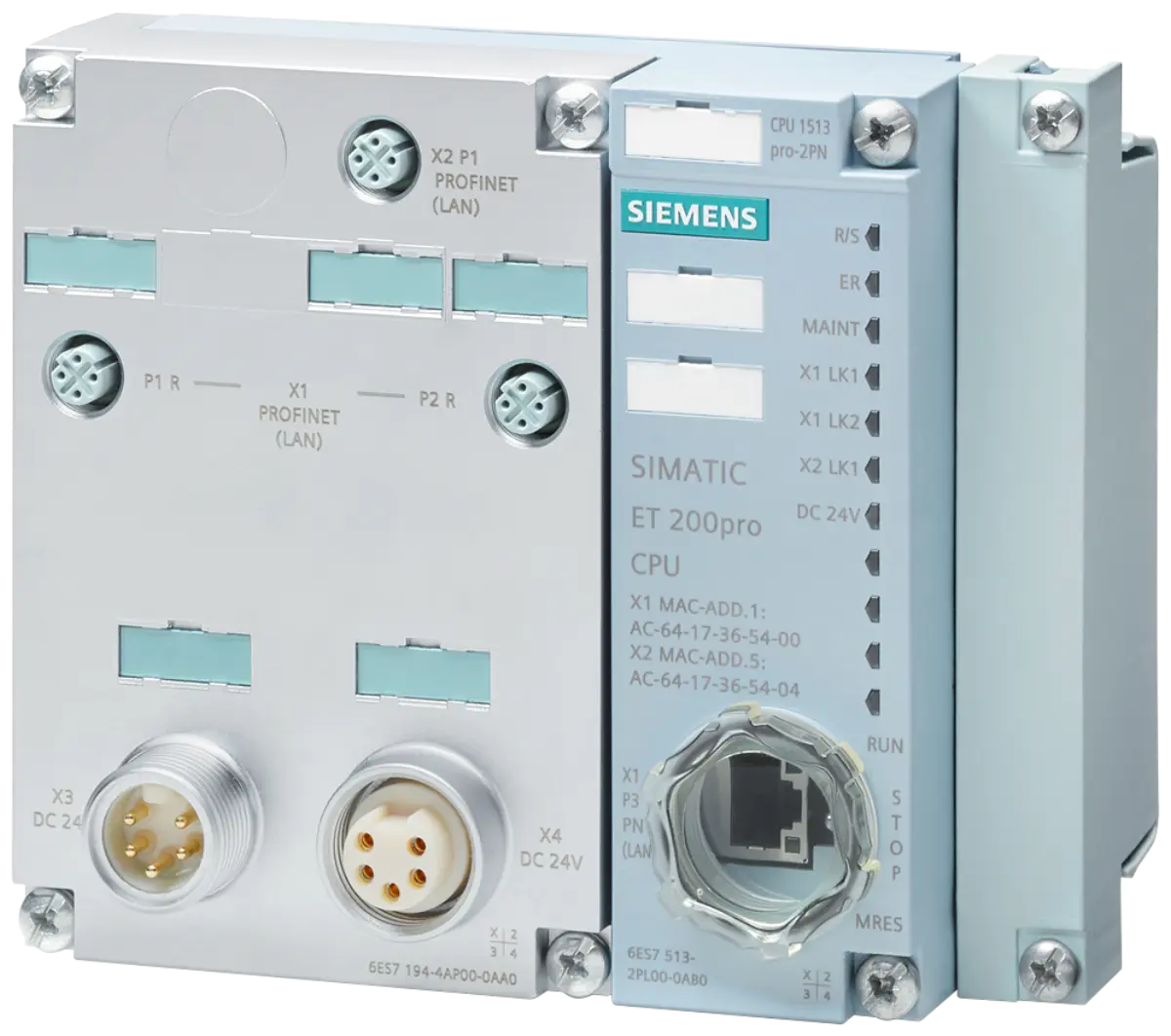

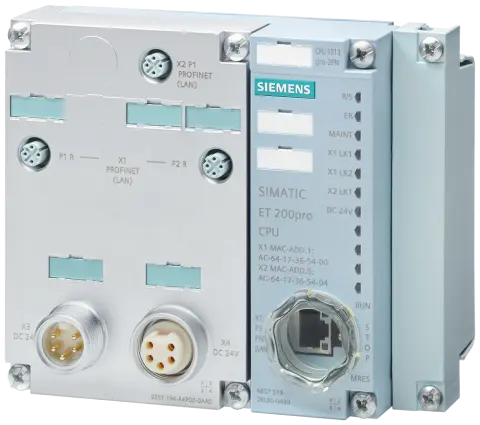

Siemens 6ES7513-2PM03-0AB0 CPU 1513pro-2 PN

Part number

6ES7513-2PM03-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1513pro-2 PN

Lifecycle

Active Product

Dimensions

16.4 x 14.1 x 7.8 cm

Net weight

0.6 Kg

Source category

CPU 1513pro-2 PN

• Work memory capacity includes 600 KB allocated for program storage and 2.5 MB dedicated to data handling for efficient process management.
• The first communication interface utilizes PROFINET IRT technology featuring a built-in three-port switch for high-speed deterministic data transmission.
• A second interface provides PROFINET RT connectivity, enabling standard real-time Ethernet communication protocols for broader network integration scenarios.
• Bit-level processing performance is recorded at 6 nanoseconds, ensuring rapid execution of control logic and immediate response times.
• Physical enclosure design meets IP65 and IP67 degree of protection standards, allowing operation in harsh industrial environments with dust and water exposure.
• System configuration requires a separate SIMATIC Memory Card for program storage and a specific connection module for proper rack mounting.

• Brand designation confirms this unit originates from Siemens industrial automation division, adhering to established SIMATIC hardware standards.
• Product classification identifies the device as a CPU 1513pro-2 PN model, distinguishing it from other processor variants in the lineup.
• Lifecycle stage is listed as Active Product, reflecting current production status and ongoing technical documentation support for end users.
• Category placement falls under PLC CPU controllers, aligning with standard industrial automation component categorization practices for search and retrieval.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 16.4 cm in width, 14.1 cm in height, and 7.8 cm in depth for spatial planning.
• Net weight specification stands at 0.6 kilograms, facilitating easy handling during installation procedures and mechanical assembly tasks.
• Memory allocation parameters specify distinct regions for program code and data blocks, optimizing resource usage for complex control applications.
• Interface configurations highlight dual PROFINET capabilities, supporting both IRT and RT protocols for flexible network topology designs.

• Visual inspection should confirm the presence of PROFINET ports on the front panel for network cable connections.
• Check for the designated slot area where the SIMATIC Memory Card must be inserted for operational functionality.
• Verify the connection module attachment points on the rear side to ensure proper mounting to the ET 200pro base unit.
• Examine the housing integrity to ensure compliance with IP65/IP67 ratings, looking for sealed gaskets and robust construction materials.

• Review project documentation to confirm the requirement for a CPU 1513pro-2 PN within the ET 200pro system architecture.
• Verify that necessary accessories, including the SIMATIC Memory Card and connection module, are accounted for in the overall system design.
• Assess network infrastructure needs to ensure PROFINET IRT and RT interfaces align with existing plant communication protocols and speeds.
• Confirm physical space constraints match the unit dimensions of 16.4 x 14.1 x 7.8 cm for cabinet or rail mounting.

• Ensure all technical parameters match the specific requirements of the target ET 200pro deployment scenario.
• Cross-reference the part number 6ES7513-2PM03-0AB0 with documented Siemens documentation to verify current firmware and hardware revisions.
• Validate that the selected memory card capacity meets the program size requirements exceeding the onboard work memory limits.
• Confirm that the installation environment meets the IP65/IP67 protection criteria for the specified operating conditions.
