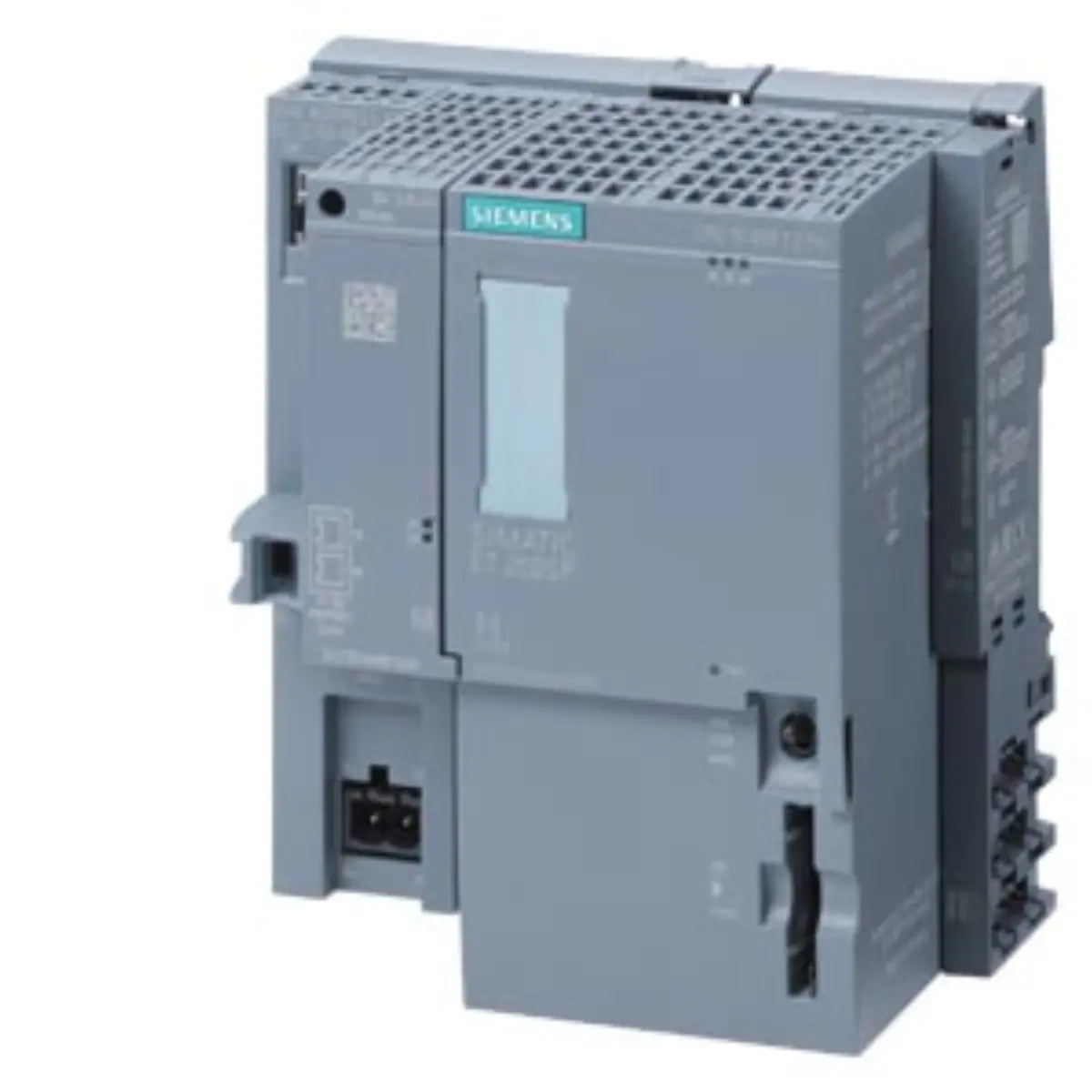

Siemens 6ES7512-1DM03-0AB0 CPU 1512SP-1 PN Inquiry

Part number

6ES7512-1DM03-0AB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1512SP-1 PN

Lifecycle

Active Product

Dimensions

13.5 x 13.3 x 8.2 cm

Net weight

0.339 Kg

Source category

CPU 1512SP-1 PN

• Processing speed is listed at 6 ns for bit operations, indicating high-performance execution capabilities for standard control tasks. Keep dimensions 13.5 x 13.3 x 8.2 cm and net weight 0.339 Kg unchanged while comparing project documents and product image evidence.
• The first interface utilizes PROFINET IRT technology featuring a built-in three-port switch for network connectivity.
• Work memory capacity is specified as 400 KB dedicated to storing user programs and logic sequences.
• Data memory allocation is recorded as 2 MB, providing space for variables and operational data storage.
• Physical dimensions are noted as 13.5 x 13.3 x 8.2 cm for spatial planning in control cabinets.
• Net weight is listed as 0.339 Kg, assisting in load calculations for mounting structures and DIN rails.

• The part number 6ES7512-1DM03-0AB0 is the primary identifier for this specific CPU configuration.
• Normalized part number format appears as 6ES75121DM030AB0 for database indexing and search optimization purposes.
• Brand attribution is clearly stated as Siemens within the automation technology sector documentation.
• Product classification falls under Standard CPUs, specifically the CPU 1512SP-1 PN series designation.

Parameters are factual source fields retained for model review.

• Source parameter review indicates that a SIMATIC Memory Card is required for operation of this unit.
• Documentation states that a BusAdapter is necessary for port 1 and port 2 connectivity configurations.
• The included server module part number is explicitly listed as 6ES7193-6PA00-0AA0 in the package contents.
• Network interface type is defined as PROFINET IRT, supporting real-time communication standards for industrial applications.
• Memory architecture separates program storage from data storage, with distinct capacities for each functional area.

• Visual inspection notes should confirm the presence of the three-port PROFINET switch on the front panel.
• Label verification is recommended to ensure the part number matches 6ES7512-1DM03-0AB0 exactly on the device.
• Physical condition assessment should check for any visible damage to the housing or connection ports.
• Mounting rail application context can be verified against standard DIN rail specifications used in industrial panels.

• Prepare project documents specifying the required PROFINET IRT network topology and switch port usage needs.
• List the necessary SIMATIC Memory Card type and capacity requirements for your specific program size.
• Identify the BusAdapter models needed for port 1 and port 2 to complete the hardware setup.
• Confirm the server module 6ES7193-6PA00-0AA0 inclusion in your initial technical review and documentation checklist.

• Verify that the submitted inquiry includes all necessary peripheral components like memory cards and adapters.
• Cross-reference the physical dimensions 13.5 x 13.3 x 8.2 cm with your cabinet space constraints.
• Ensure the net weight of 0.339 Kg is accounted for in your structural load analysis.
• Confirm the active product lifecycle status aligns with your long-term maintenance and support requirements.
