Siemens 6ES7217-1AG40-0XB0 SIMATIC S7-1200 CPU 1217C Inquiry

Part number

6ES7217-1AG40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1217C

Lifecycle

Active Product

Dimensions

15.9 x 11.3 x 8.8 cm

Net weight

0.486 Kg

Source category

CPU 1217C

• Power supply requirements specify a DC voltage range of 20.4 to 28.8 V DC for stable operation. Keep dimensions 15.9 x 11.3 x 8.8 cm and net weight 0.486 Kg unchanged while comparing project documents and product image evidence.
• Program and data memory capacity is recorded at 250 KB for storing user logic and variables.
• Onboard digital inputs include ten 24 V DC points for standard switching signal detection.
• Four digital inputs support RS-422/485 communication protocols for specialized serial data transmission needs.
• Six digital outputs provide 24 V DC switching capability with a maximum current rating of 0.5 A.
• Two analog inputs measure signals in the 0-10 V DC range for precise process monitoring.

• The product classifies as a Standard CPU within the broader SIMATIC S7-1200 automation family tree. Use the source path Automation technology / Central processing units / Standard CPUs / CPU 1217C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Lifecycle status is listed as Active Product, indicating ongoing manufacturing and support review details.
• Physical dimensions are recorded as 15.9 cm in width, 11.3 cm in height, and 8.8 cm in depth.
• Net weight is specified at 0.486 Kg, reflecting the compact hardware construction of the unit.

Parameters are factual source fields retained for model review.

• Four digital outputs utilize RS-422/485 interfaces for robust serial communication in noisy industrial settings.
• Two analog outputs deliver signals in the 0-20 mA range for controlling field devices accurately.
• Dual PROFINET ports enable Ethernet-based networking for real-time data exchange with other controllers.
• The compact CPU design allows for direct mounting on DIN rails in control cabinet spaces.
• Signal processing capabilities cover both discrete logic operations and continuous analog value adjustments.

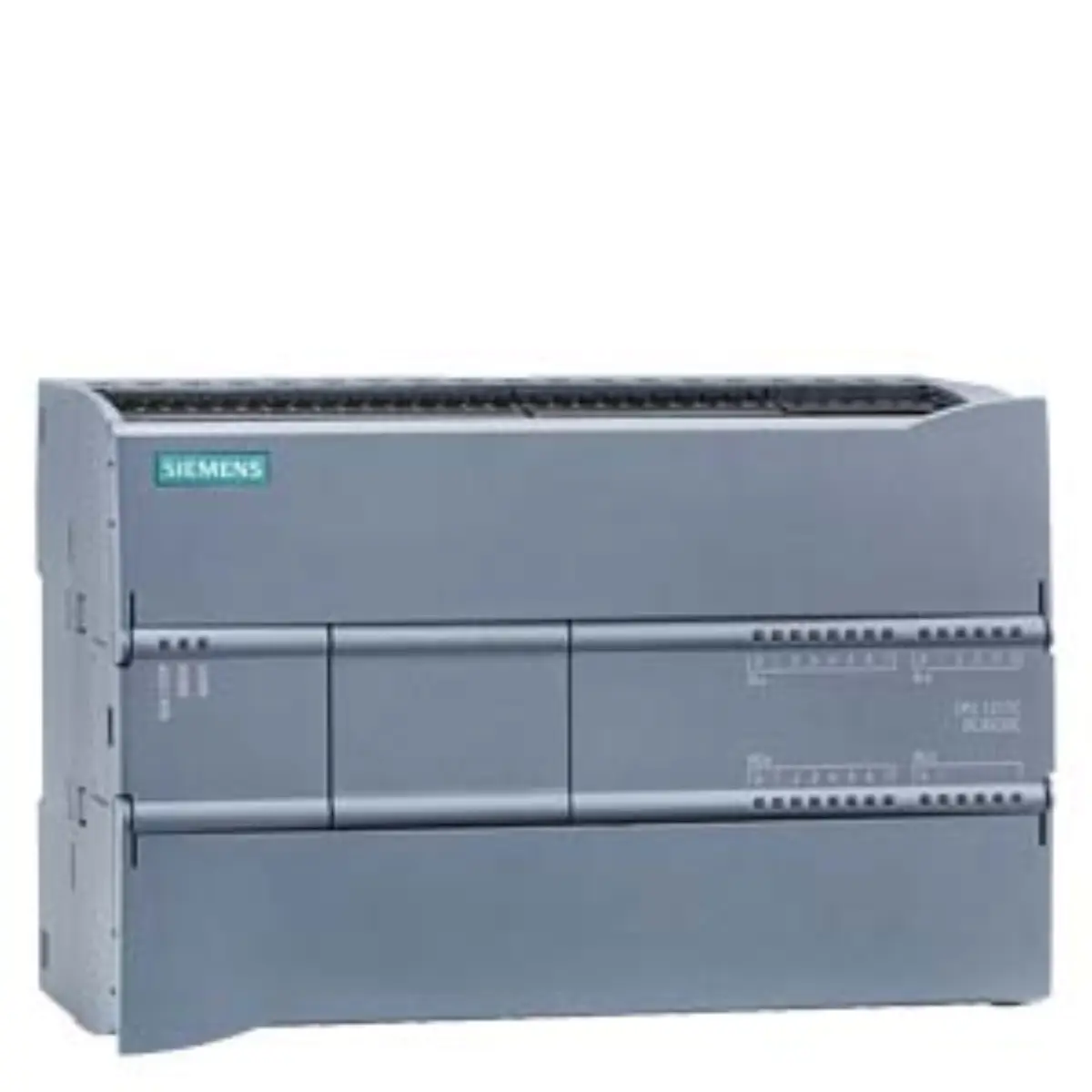

• Visual inspection should confirm the presence of two distinct PROFINET interface connectors on the front panel.
• Check that terminal blocks for digital and analog I/O connections are clearly visible and intact.
• Verify the label displaying the full part number 6ES7217-1AG40-0XB0 for accurate model identification.
• Ensure the housing shows no signs of physical damage or corrosion that could affect performance.

• Review your project documentation to determine if the 250 KB memory suffices for your logic.
• Confirm that your power supply provides a stable DC voltage between 20.4 and 28.8 V DC.
• Assess whether the onboard I/O count meets your input and output signal requirements directly.
• Prepare technical questions regarding PROFINET configuration and integration with existing network infrastructure components.

• Cross-reference the technical summary with your specific application requirements before submitting detailed inquiries.
• Ensure all analog and digital I/O needs align with the onboard capabilities listed here.
• Consider the physical dimensions when planning rack space allocation for the compact CPU installation.
• Validate network topology plans to accommodate the dual PROFINET port connectivity features effectively.
