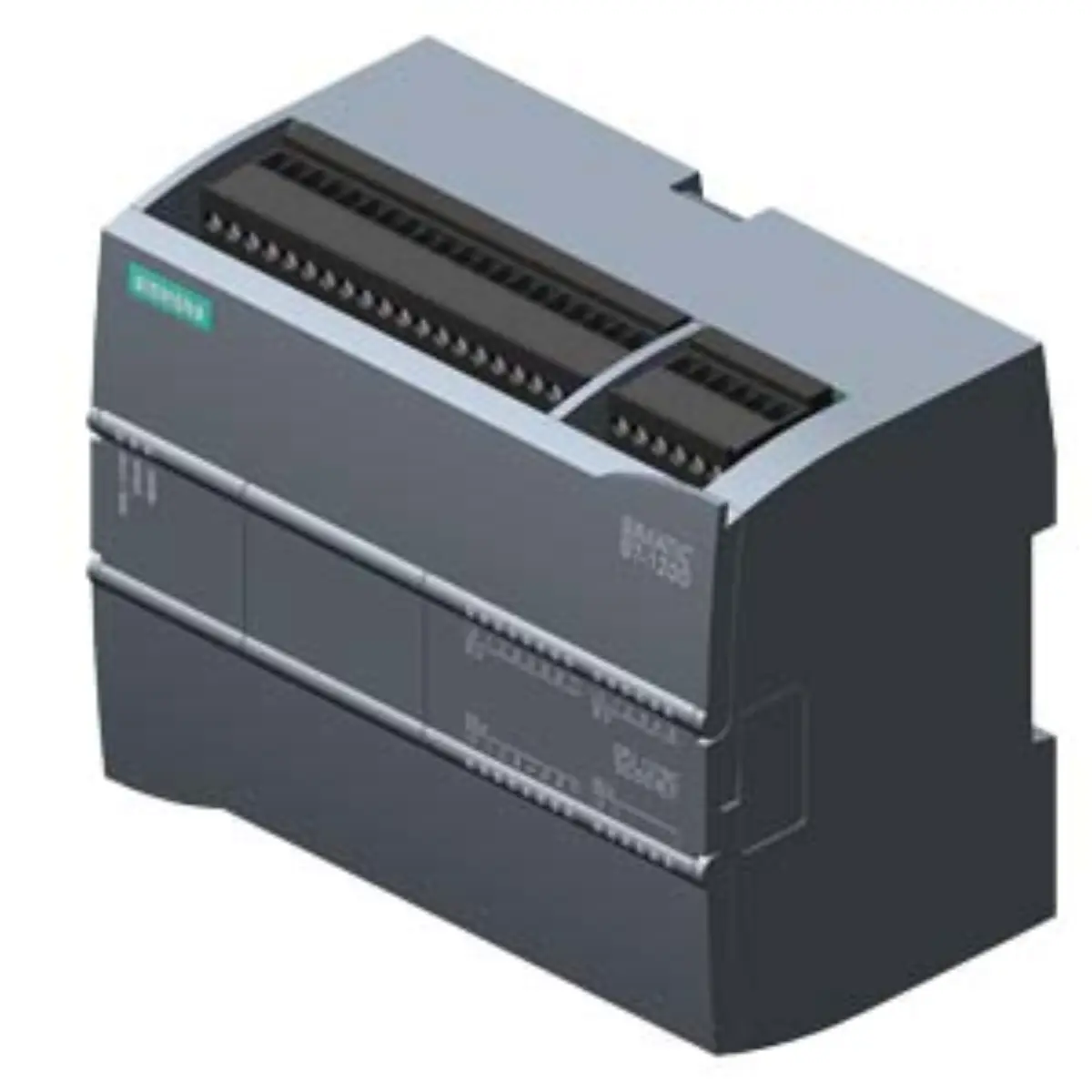

Siemens 6ES7215-1HG40-0XB0 CPU 1215C Technical Overview

Part number

6ES7215-1HG40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1215C

Lifecycle

Active Product

Dimensions

13.8 x 11.1 x 8.3 cm

Net weight

0.434 Kg

Source category

CPU 1215C

• Processing unit type is identified as CPU 1215C within the S7-1200 product line structure. Keep dimensions 13.8 x 11.1 x 8.3 cm and net weight 0.434 Kg unchanged while comparing project documents and product image evidence.
• Input configuration includes fourteen digital channels operating at twenty-four volts DC for signal detection.
• Output arrangement provides ten relay contacts capable of handling two amperes per channel for load switching.
• Analog input section consists of two channels accepting voltage signals ranging from zero to ten volts DC.
• Analog output section comprises two channels delivering current signals between zero and twenty milliamperes DC.
• Communication interface offers two dedicated PROFINET ports for network integration and data exchange with other devices.

• Part number 6ES7215-1HG40-0XB0 uniquely identifies this specific hardware revision and configuration set. Use the source path Automation technology / Central processing units / Standard CPUs / CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Brand designation Siemens indicates the manufacturer responsible for the design and production of this controller unit.
• Lifecycle status is recorded as Active Product, confirming ongoing manufacturing and support review details for this model.
• Product classification falls under Central Processing Units within the broader Automation Technology category structure.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as thirteen point eight by eleven point one by eight point three centimeters.
• Net weight is documented at zero point four three four kilograms for shipping and mounting calculations.
• Power supply requirement specifies a DC voltage range between twenty point four and twenty-eight point eight volts.
• Memory allocation includes two hundred kilobytes designated for program storage and operational data retention tasks.
• Onboard I/O density combines digital and analog channels to reduce external module dependencies in simple setups.

• Visual inspection should confirm the presence of two Ethernet ports on the front panel interface area.
• Check terminal blocks for correct labeling corresponding to digital inputs, digital outputs, and analog channels.
• Verify LED indicators for power status and communication activity are visible and unobstructed in product imagery.
• Ensure part number label is clearly legible and matches the specified six digit alphanumeric code format.

• Review project documentation to confirm voltage requirements match the specified twenty-four volt DC supply range.
• Assess I/O count needs against the fourteen digital inputs and ten relay outputs provided on board.
• Evaluate network topology requirements to ensure PROFINET application context with existing industrial communication infrastructure components.
• Prepare technical specifications sheet highlighting memory size and analog channel types for detailed engineering comparison.

• Confirm physical mounting space allows for the specified dimensions without interference with adjacent equipment components.
• Verify that the relay output type meets the switching requirements for the intended load characteristics.
• Check that the analog signal types align with sensor outputs and actuator input specifications in the system.
• Ensure software tools are recorded for programming and configuring the S7-1200 platform for deployment purposes.
