6ES7215-1BG40-0XB0 SIMATIC S7-1200 CPU 1215C

Part number

6ES7215-1BG40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1215C

Lifecycle

Active Product

Dimensions

13.6 x 11.1 x 8.5 cm

Net weight

0.502 Kg

Source category

CPU 1215C

• Power supply accepts AC voltage between 85 and 264 volts at frequencies of 47 to 63 hertz. Keep dimensions 13.6 x 11.1 x 8.5 cm and net weight 0.502 Kg unchanged while comparing project documents and product image evidence.
• Onboard digital inputs consist of fourteen points operating at 24 volts DC for sensor connections.
• Digital outputs include ten relay contacts capable of switching loads up to two amperes each.
• Analog input channels provide two points measuring voltage signals ranging from zero to ten volts DC.
• Analog output channels offer two points delivering current signals within the range of zero to twenty milliamps.
• Program and data memory capacity is recorded at two hundred kilobytes for application storage needs.

• Brand designation is listed as Siemens under the industrial automation product classification. Use the source path Automation technology / Central processing units / Standard CPUs / CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product type is identified specifically as the CPU 1215C compact controller variant.
• Lifecycle status is recorded as Active Product indicating ongoing manufacturing and support.
• Normalized part number format removes hyphens for standardized database indexing and search.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as thirteen point six by eleven point one by eight point five centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7215-1BG40-0XB0 record before publication.
• Net weight of the unit is specified as zero point five zero two kilograms for logistics planning.
• Communication interface includes two dedicated PROFINET ports for Ethernet-based network integration.
• Input configuration combines fourteen digital points with two analog voltage measurement channels.
• Output configuration utilizes ten relay contacts paired with two analog current signal generators.

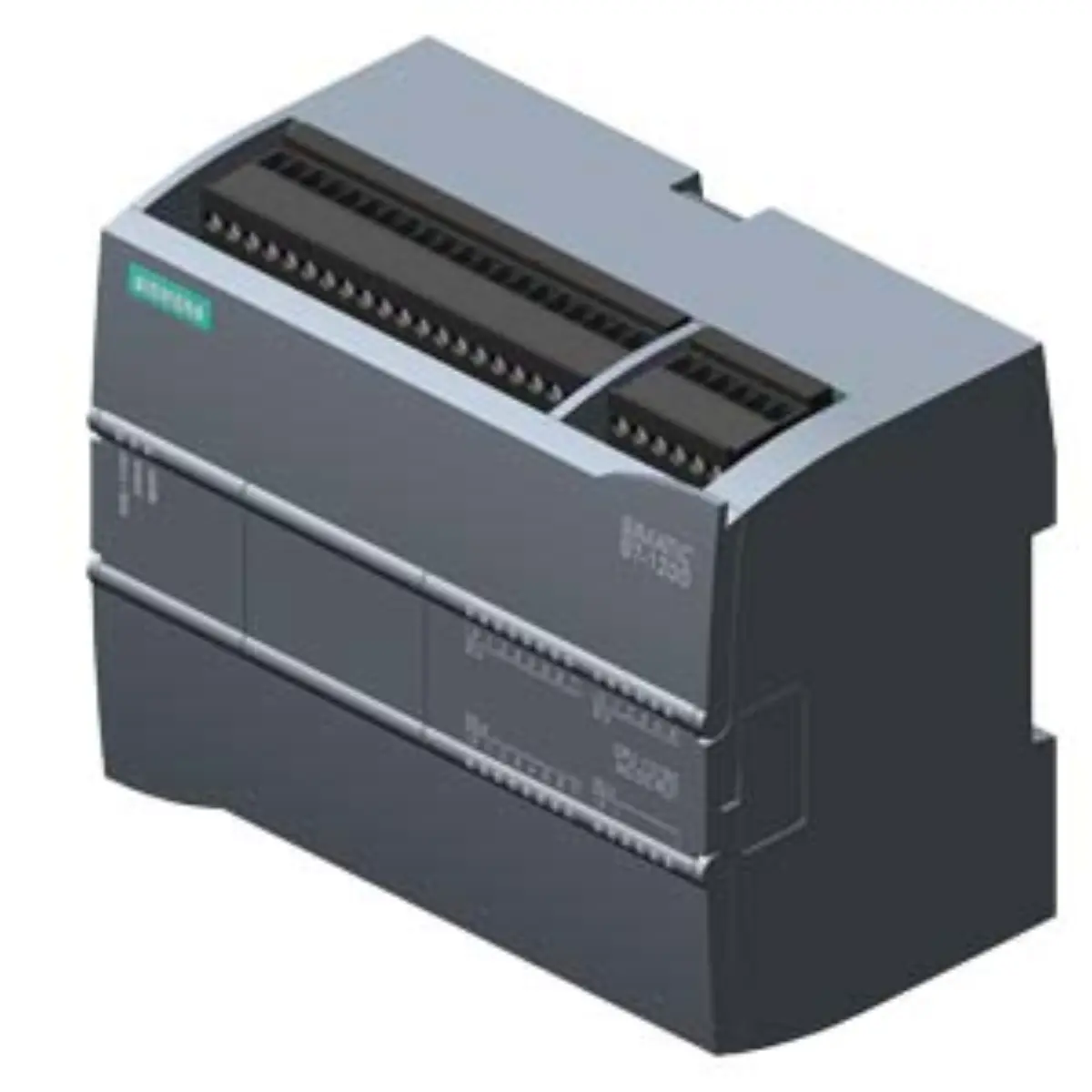

• Front view displays terminal blocks for power connection and signal wiring access. Review Siemens 6ES7215-1BG40-0XB0 as CPU 1215C with source category CPU 1215C, recorded lifecycle Active Product, and submitted model identity.
• Side profile shows mounting rail attachment points for DIN rail installation procedures.
• Label area contains printed part number and barcode for inventory identification purposes.
• Status LEDs indicate operational state and diagnostic information for maintenance troubleshooting.

• Verify project requirements against the recorded digital and analog channel counts. Keep dimensions 13.6 x 11.1 x 8.5 cm and net weight 0.502 Kg unchanged while comparing project documents and product image evidence.
• Confirm power supply specifications match the AC 85-264 volt input range.
• Review network topology needs for the two PROFINET port connections.
• Check physical space constraints against the listed dimensional parameters for enclosure fit.

• Source parameter review confirms the active product status for this model.
• Project document review should validate memory size against application complexity.
• Technical specification alignment ensures correct I/O matching for control logic.
• Physical dimension verification aids in proper mechanical integration and mounting.
