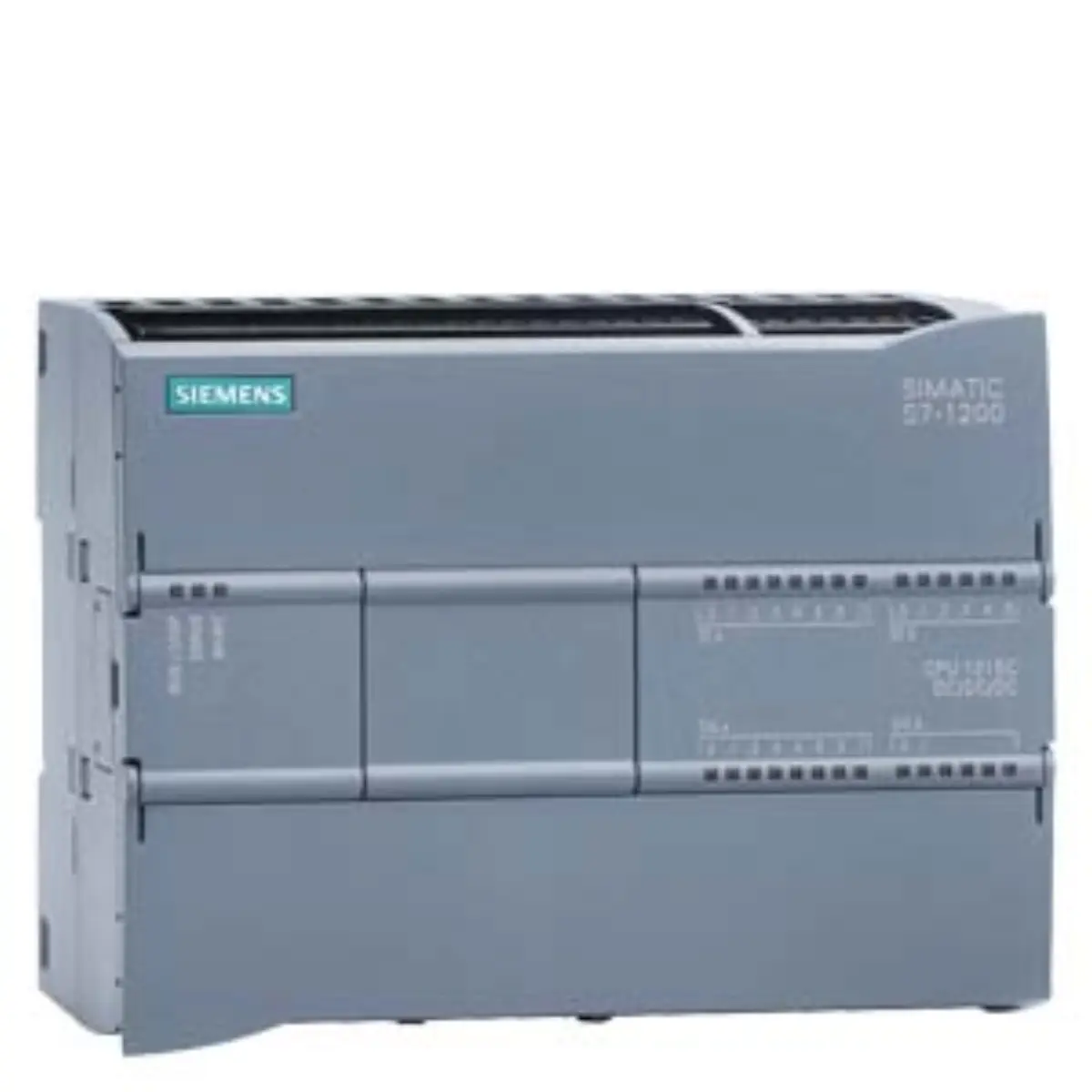

Siemens 6ES7215-1AG40-0XB0 CPU 1215C Technical Details

Part number

6ES7215-1AG40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

CPU 1215C

Lifecycle

Active Product

Dimensions

14.00 x 11.1 x 8.5 cm

Net weight

0.405 Kg

Source category

CPU 1215C

• Processing capabilities are housed within a compact form factor measuring 14.00 x 11.1 x 8.5 centimeters. Keep dimensions 14.00 x 11.1 x 8.5 cm and net weight 0.405 Kg unchanged while comparing project documents and product image evidence.
• The net weight of the unit is recorded at 0.405 kilograms, allowing for straightforward mounting configurations.
• Onboard digital inputs consist of fourteen channels designed for 24 volt DC signal detection and processing.
• Ten digital output channels provide 24 volt DC switching capability with a maximum current rating of 0.5 amperes.
• Two analog input channels accept voltage signals ranging from zero to ten volts DC for precise measurement.
• Two analog output channels deliver current signals between zero and twenty milliamps DC for continuous process control.

• The part number 6ES7215-1AG40-0XB0 uniquely identifies this specific CPU 1215C configuration variant. Use the source path Automation technology / Central processing units / Standard CPUs / CPU 1215C to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification lists this item as an active product within the manufacturer's current portfolio.
• The normalized identifier 6ES72151AG400XB0 serves as the standardized reference for database indexing and retrieval.
• Category placement places this unit under standard central processing units for automation technology applications.

Parameters are factual source fields retained for model review.

• Program and data memory capacity is listed at 200 kilobytes for storing user logic and variables. Check product-owned images, label text, connector area, and submitted model references against the exact 6ES7215-1AG40-0XB0 record before publication.
• Communication interfaces include two dedicated PROFINET ports for network connectivity and device integration.
• Power supply requirements specify a direct current range of 20.4 to 28.8 volts for operation.
• Physical dimensions allow for DIN rail mounting or panel installation in standard control cabinets.
• Signal types are defined as DC/DC/DC, indicating the electrical nature of input and output circuits.

• Visual inspection should confirm the presence of two PROFINET interface connectors on the front face.
• Terminal blocks for digital and analog connections must align with the specified channel counts.
• Labeling should clearly display the full part number and brand designation for identification purposes.
• Physical condition checks should verify the integrity of the housing and mounting clips.

• Verify the exact part number matches the requirement before submitting detailed technical questions.
• Confirm power supply voltage ranges match the existing site infrastructure for proper integration.
• Review memory size requirements against project needs to ensure sufficient storage capacity exists.
• Check physical space constraints to ensure the unit dimensions fit within the planned enclosure.

• Ensure all technical parameters are cross-referenced with the latest documented product documentation.
• Project documents should specify any additional modules required for expanded I/O or communication needs.
• Source parameter review is recommended to validate application context with existing system architectures.
• Submit inquiries with complete technical details to facilitate accurate and efficient information exchange.
