Siemens 6ES7215-1AF40-0XB0 SIMATIC S7-1200F CPU Inquiry

Part number

6ES7215-1AF40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

Fail-safe CPUs

Lifecycle

Active Product

Dimensions

13.9 x 10.8 x 8.5 cm

Net weight

0.415 Kg

Source category

Fail-safe CPUs

• Model classification identifies this device as a fail-safe CPU within the S7-1200 product line. Keep dimensions 13.9 x 10.8 x 8.5 cm and net weight 0.415 Kg unchanged while comparing project documents and product image evidence.
• Power supply specification requires a DC voltage range between 20.4 and 28.8 volts for operation.
• Digital input configuration includes fourteen points rated for 24 V DC signal detection levels.
• Digital output setup provides ten points capable of switching loads at 24 V DC with 0.5 A capacity.
• Analog input channels consist of two ports supporting 0-10 V DC signal measurement ranges.
• Analog output channels include two ports designed for 0-20 mA DC current loop transmission signals.

• The part number 6ES7215-1AF40-0XB0 uniquely identifies this specific Siemens hardware revision and configuration. Use the source path Automation technology / S7-1200 / Central processing units / Fail-safe CPUs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The normalized identifier 6ES72151AF400XB0 removes hyphens for standardized database indexing and search operations.
• Lifecycle status indicates this model is currently listed as an active product in the catalog.
• Brand attribution confirms the manufacturer as Siemens, a primary producer of industrial automation components.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.9 cm in width, 10.8 cm in height, and 8.5 cm in depth.
• Net weight is specified at 0.415 kilograms, which assists in calculating load requirements for mounting rails.
• Program memory capacity is listed as 250 KB, sufficient for complex logic and data storage needs.
• Category placement places this unit under PLC CPU controllers, specifically within the fail-safe segment.
• Source path hierarchy links this item to Automation technology, S7-1200, Central processing units, and Fail-safe CPUs.

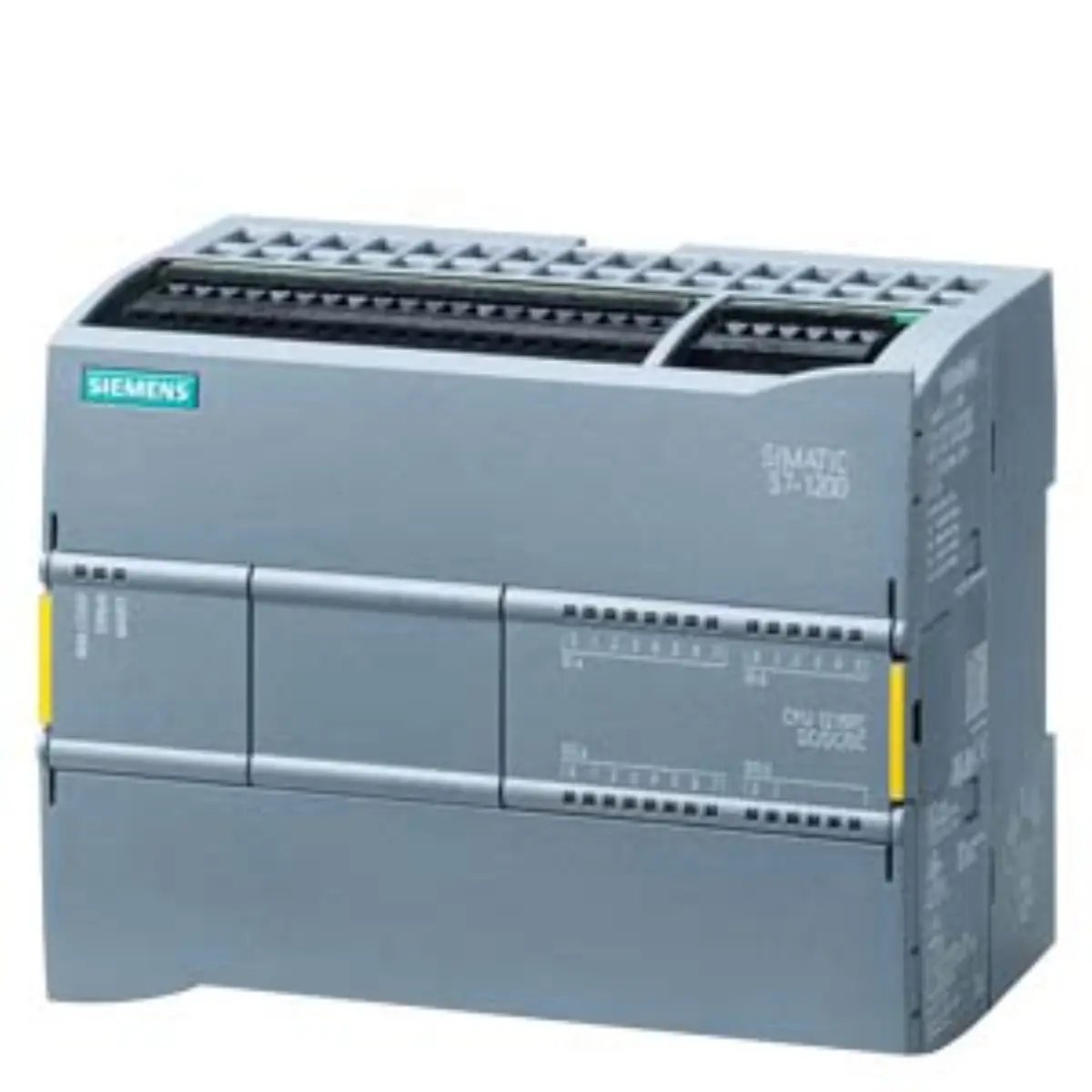

• Visual inspection should confirm the presence of the Siemens branding and model label on the front face.
• Check that the PROFINET ports are clearly visible and undamaged on the side of the unit.
• Verify the terminal block connections for digital and analog I/Os are intact and properly aligned.
• Ensure the power supply connection area matches the DC 20.4-28.8 V DC specification markings.

• Confirm the required voltage level matches the 24 V DC specification for digital inputs and outputs.
• Verify that the network infrastructure supports PROFINET communication for the two recorded Ethernet ports.
• Assess if the 250 KB memory size meets the program storage demands of your control logic.
• Review mechanical constraints to ensure the 13.9 x 10.8 x 8.5 cm footprint fits your panel.

• Cross-reference the part number 6ES7215-1AF40-0XB0 with your project documentation to ensure accuracy.
• Validate that the analog input/output types match your sensor and actuator signal requirements precisely.
• Check the physical mounting rail application context with the DIN-rail standard for this compact CPU size.
• Ensure all technical parameters align with your facility's electrical standards before submitting the inquiry form.
