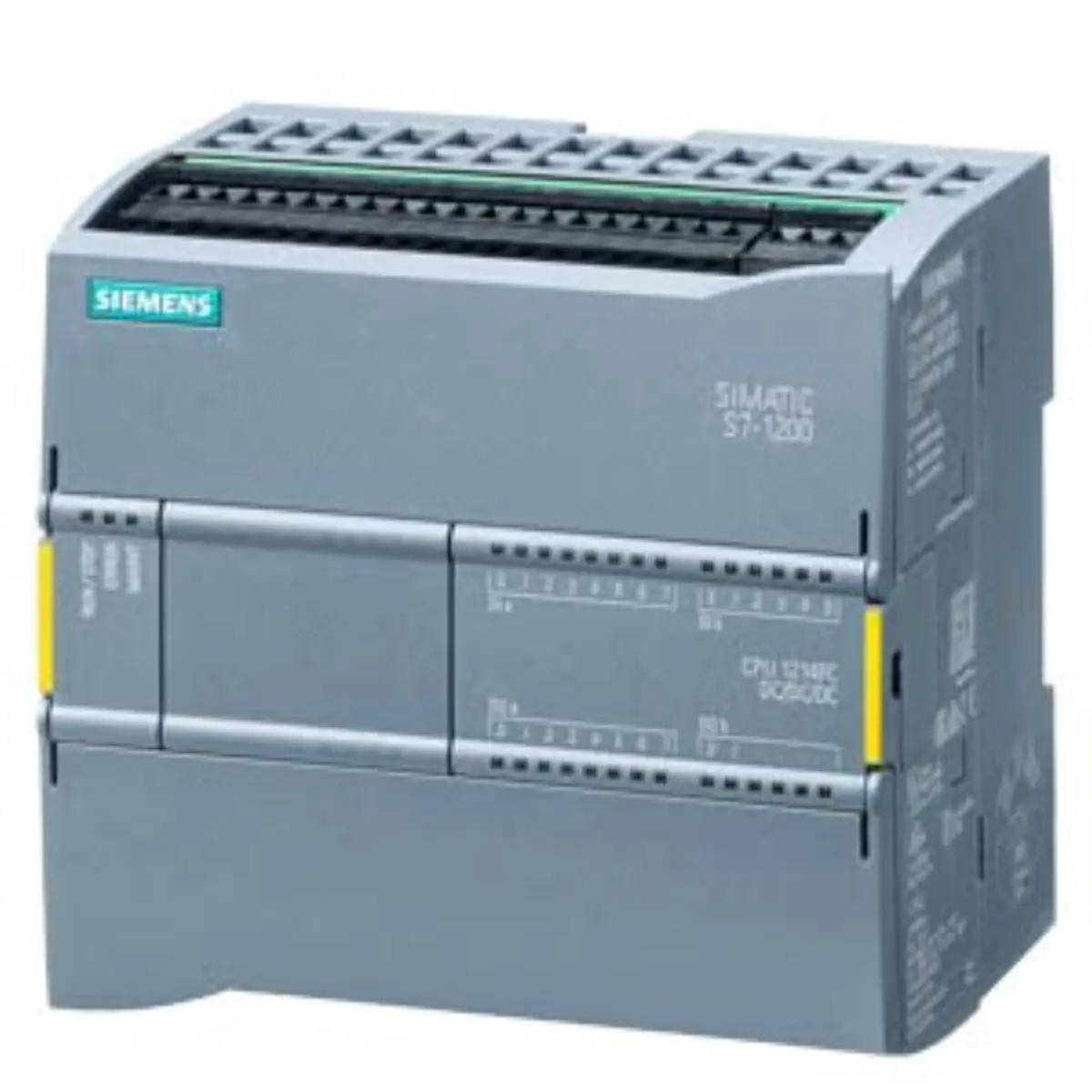

6ES7214-1AF40-0XB0 SIMATIC S7-1200F Fail-Safe CPU

Part number

6ES7214-1AF40-0XB0

Brand

Siemens

Category

PLC CPUs & Controllers

Product type

Fail-safe CPUs

Lifecycle

Active Product

Dimensions

11.6 x 11.2 x 8.5 cm

Net weight

0.364 Kg

Source category

Fail-safe CPUs

• Onboard configuration includes fourteen digital inputs operating at twenty-four volts direct current for standard signal acquisition. Keep dimensions 11.6 x 11.2 x 8.5 cm and net weight 0.364 Kg unchanged while comparing project documents and product image evidence.
• Ten digital outputs are provided, also rated for twenty-four volts direct current to drive safety actuators directly.
• Two analog inputs support voltage signals ranging from zero to ten volts for precise process monitoring tasks.
• The device utilizes a DC power supply range between twenty point four and twenty-eight point eight volts.
• Program and data memory capacity is recorded at two hundred kilobytes for storing safety and standard programs.
• Physical dimensions measure eleven point six by eleven point two by eight point five centimeters for compact mounting.

• The part number 6ES7214-1AF40-0XB0 identifies this specific variant of the CPU 1214 FC fail-safe controller. Use the source path Automation technology / S7-1200 / Central processing units / Fail-safe CPUs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification lists this item under the broader category of fail-safe CPUs for industrial automation systems.
• Lifecycle status is currently active, indicating ongoing production and support for this particular hardware model.
• Brand attribution clearly links this component to Siemens, a recognized leader in programmable logic controllers.
